Product Attribute:
Supply Ability:600 Piece/Pieces per Month
Production Description:
FE6T FE6 FE6TA forged steel crankshaft, cast crakshaft 12200-Z5500 12200-Z5568 ,Engine Parts,Liner Kits, Piston, Ring Set,Engine Bearing Product Description
Specifications For FE6T FE6 FE6TA crankshaft
| Commodity: | Engine crankshaft |
| Model: | FE6T FE6 FE6TA crankshaft |
| Part No: | 12200-Z5500 12200-Z5568 12200-Z5602 12200-Z5660 |
| Vehicle | TRUCK |
| Cylinder dia: | 108.0 MM |
| Packing: | playwood |
| Material: | CAST OR FORGED |
| Remarks: | Top quality |
Features for FE6 crankshaft
1: material was cast or forged.
2: Top Quality, 1 year warranty
3: Fast Delivery & Good packing(harden cartons and plywood)
4: One-step service

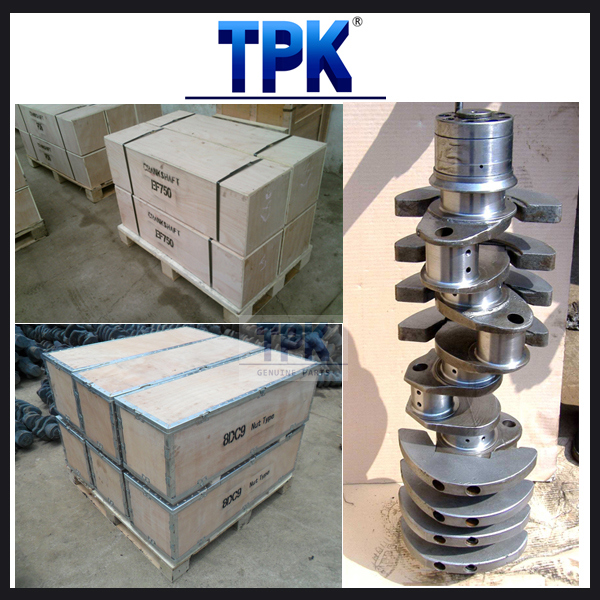

Reference Pictures of FE6T crankshaft
Packaging & Shipping
Shipping
(1): By sea
(2): By air
(3): By express (DHL, FEDEX, TNT, EMS... )
Packing:
(1): TPK packing or nuetral packing
(2): according to your requirments
Our Services
Payment
(1): TT (30 % in Advanced, 70 % before Shipment)
(2): Western Union
(3): Cash
Warranty
All our parts warranty 1 years, If problems from our parts itself, we will take all responsibilty on the spare parts and service.
If the troubles come from human factors, should take responsible for it.
Company Information
Guangzhou TPK Diesel Parts Co.,Ltd, Build in 1996, is a professional manufacturer on Diesel Piston, Piston ring, Cylinder Liner, Head Gasket & Overhaul Gasket Kit. TPK has been cooperating with OEM factory in China for several years, running business mainly in imported diesel engines. All products in TPK have passed the national quality supervision on combustion engines and obtained certificates from ISO9002.
Till now, TPK has four storehouses in Guangzhou, occupying an area of over 5,000 square meters. The number of employees in TPK reaches up to 100, among which include 20 sales personnel in China, 15 sales personnel outside China, 10 QC personnel. TPK products command a ready market in Europe, Middle East, South America, North America, and Southeast Asia and are well received.
With the principles of international brand, good quality, shared resources, and serving the world, TPK endeavors to provide perfect accessories replacement solutions for customers. TPK is ready to cooperte with you to reach a win-win future.
FAQ
Q: Do you have any other engine parts?
A: yes, we have more than 10 kinds of engine repair parts like the followings:
1: Cylinder block, cylinder head, crankshaft, camshaft, connecting rod.
2: Liner Kits. Piston kits, piston ring set, cylinder liner (sleeve), Pin bush.
3: Full / Overhaul gasket kit, head gasket,Oil Seal.
4: Engine bearing, Main bearing, con rod bearing,Camshaft Bearing,thrust washer
5: Engine valve, valve seat, valve guide.
6: Oil Pump, water pump,
7: Starter, alternator
9: Oil cooler, radiator
10: Turbocharger
Q: Do you have Some Other engine models?
A: yes, for NISS_AN, we have the following models
(1): CD17,SD15,SD16,LD28,CD20,LD20,RD28,YD22,LD23,YD25,TD23,TD25,TD27,TD27T-2,TD42,
(2): BD30,BD30T,ZD30,ZD30T,ED30,QD32,AD5,YG1,SD20,SD22,SD33T,SD15,SD16,SD33,SD23,SD25,
(3): ED6,FD6,FD6T,ED33,FD6-T,FD33T,FD35,FD35T,ED35,FD46T,FD46,NE6,FM6T,FD46,FE6T,FE6,FE6TA,
(4): UD3,UD4,UD5,UD6,UDV8,UD12,ND6,ND6T,NE6,NS6TA,NF6TA,MD92TCI,PD6,PD6T,PE6,PE6T,PF6,
(6): RD8,RD8T,RD10,RD10T,RE8,RE10,GE13TD,RF8,RF10,RG8,RH8,RH10,RD10T
Q: Do you have Some Online service?
A: yes, we have Whatspp, Wechat, Skype, YAHOO, QQ...
FE6
Application: TRUCK 180PS
Number of Cylinders 6
Cylinder dia. 108.0 MM
Swept volume 6925 ccm
TPK Piston kit-Sets Piston Rings Cylinder liner
OEM NO. 12040-Z5505
NPR:SDN31-036ZZ
TPK NO.
OEM NO. 11012-Z5518
OEM Ring Groove SIZE Liner&Sleeve
Piston:
Piston-kit:
OEM NO. 12011-Z5618
Top: 3.0K
2nd: 2.0
Oil : 4.0
STD In Diameter: 108.0
Out Diameter: 111.0
Total length: 220.0
Flange: 116.0*8.0+1.0
Piston SIZE K.T Ring Groove SIZE Engine Valve
Top:
2nd:
Oil :
TPK NO.
V2004600
OEM NO.
13201-Z5501
IN 48.5 9 129.5
Engine Bearing
Comp:65.4 w/al-fin
Height:-19.4
Length:103.4
Top shape:59
Direct injection
Pin: 36
Length: 92
STD
Liner kit
TPK NO.
V2104600
OEM NO.
13202-Z5502
EX 39.8 9 130.0
TPK NO.
Valve seat
TPK NO.
IN A181CV009X
EX A181CV010X
Valve guide / Sub Parts
MAIN:
12213-Z5500
CON.ROD:
12117-Z5560
T/W:
12280-Z5225
C/B:
13003-Z5025
BUSH:
12030-95000
Cylinder Head
REMARK:
Gasket:
Overhauling Gasket:
Guide:VGNI-17
Seal:
Water pump:
FE6T
Application: TRUCK 200HP
Number of Cylinders 6
Cylinder dia. 108.0 MM
Swept volume 6925 ccm
TPK Piston kit-Sets Piston Rings Cylinder liner
OEM NO. 12040-Z5505
NPR:SDN31-036ZZ
TPK NO.
OEM NO. 11012-Z5518
OEM Ring Groove SIZE Liner&Sleeve
Piston:
Piston-kit:
OEM NO. 12011-Z5768
Top: 3.0K
2nd: 2.0
Oil : 4.0
STD In Diameter: 108.0
Out Diameter: 111.0
Total length: 220.0
Flange: 116.0*8.0+1.0
Piston SIZE K.T Ring Groove SIZE Engine Valve
Top:
2nd:
Oil :
TPK NO.
V2004600
OEM NO.
13201-Z5501
IN 48.5 9 129.5
Engine Bearing
Comp:65.5 w/al-fin
Height:-19.5
Length:103.5
Top shape:59.4
Direct injection head anodized
Pin: 36
Length: 90
STD
Liner kit
TPK NO.
V2104600
OEM NO.
13202-Z5502
EX 39.8 9 130.0
TPK NO.
Valve seat
TPK NO.
IN A181CV009X
EX A181CV010X
Valve guide / Sub Parts
MAIN:
12213-Z5500
CON.ROD:
12117-Z5560
T/W:
12280-Z5225
C/B:
13003-Z5025
BUSH:
12030-95000
Cylinder Head
REMARK:
Gasket:
Overhauling Gasket:
Guide:VGNI-17
Seal:
Water pump:
