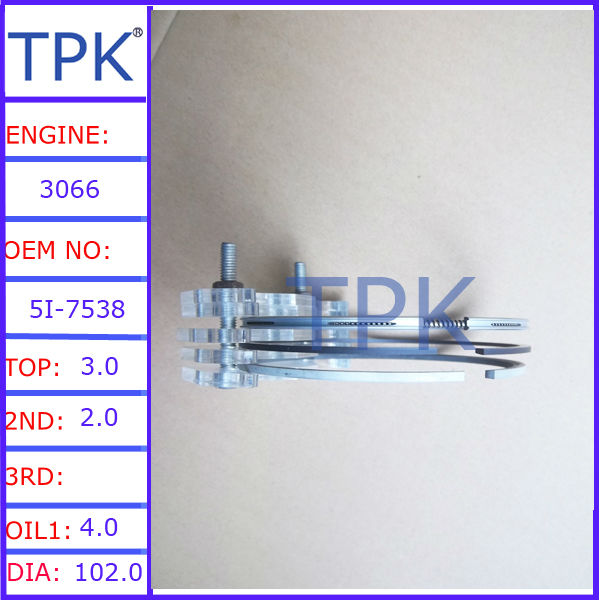

3066 piston ring set, 5I-7538, 5I7538

Product Attribute:

Supply Ability:6000 Set/Sets per Month

Delivery Details:1-3 DAYS FOR EX-STOCKS,30-45 DAYS FOR PRODUCTION

Production Description:

 Product Description

Specification For TPK Piston Ring

3066 / 6.4L 6

Diesel
Cylinder
390 CID Stroke
Bore 102mm
130mm
ENGINE KITS

KIT Engine kit Call for price and availability
CYLINDER KIT
6 5I7537 Piston body Std
For 7JK
6 5I7792 Piston body 0.25mm
For 7JK
6 5I7793 Piston body 0.50mm
For 7JK
6 1786546 Piston body Std
All except 7JK
6 1786547 Piston body 0.25mm
All except 7JK
6 1786548 Piston body 0.50mm
All except 7JK
6 5I7538 Ring set Std, 1 cylinder set
For 7JK
6 5I7790 Ring set 0.25mm, 1 cylinder set
For 7JK
6 5I7791 Ring set 0.50mm, 1 cylinder set
For 7JK
6 1786543 Ring set Std, 1 cylinder
All except 7JK
6 1786544 Ring set 0.25mm, 1 cylinder set
All except 7JK
6 1786545 Ring set 0.50mm, 1 cylinder set
All except 7JK
6 0947134 Piston pin
12 5I7667 Retainer piston pin
6 5I7523 Cylinder liner repair sleeve
BEARINGS
7 5I7588 Bearing main pair Std
7 5I7784 Bearing main pair 0.25mm u/s
7 5I7785 Bearing main pair 0.50mm u/s
7 5I7786 Bearing main pair 0.75mm u/s
3 5I7654 Thrust washer Std
3 5I7787 Thrust washer 0.15mm
3 5I7788 Thrust washer 0.30mm
3 5I7789 Thrust washer 0.45mm
12 5I7637 Bearing rod half Std
12 5I7794 Bearing rod half 0.25mm u/s
12 5I7795 Bearing rod half 0.50mm u/s
12 5I7796 Bearing rod half 0.75mm u/s
6 5I7539 Bushing con rod

5I7528 Bearing cam
1 5I7529 Bearing cam
1 5I8009 Bearing cam
GASKET & SEALS
GASKET NOTE For gasket sets: Call with Serial and Arrangement Numbers
10 5I7648 Gasket cylinder head
11 5I7728 Gasket head plate rear
1 5I7660 Seal crankshaft rear Seal kit
1 5I7524 Seal crankshaft rear
1 5I7540 Sleeve crankshaft rear
CAMSHAFT
12 2228183 Lifter (repl 5I7627)
12 5I7723 Push rod
12 0913474 Nut rocker assembly
VALVE TRAIN
6 5I7738 Valve intake
6 5i7739 Valve exhaust
12 5I7740 Valve spring
12 5I7625 Valve spring retainer
24 5I7719 Valve keeper
6 1838172 Valve guide Intake
6 1838173 Valve guide Exhaust
12 5I7624 Valve stem seal
12 5I7630 Valve stem cap
6 5I8011 Valve insert Intake
6 5I8012 Valve insert Exhaust
26 5I7718 Bolt cylinder head
CRANKSHAFT
1 5I7541 Plate crankshaft gear
1 1307596 Nut crankshaft
CONNECTING ROD
12 0947154 Bolt connecting rod
12 0947516 Nut connecting rod
TURBO / AIR
TURBO TURBOCHARGER

Other Piston ring

PARTS SHOW

3:FACTORY WORKSHOP AND INTRODUCTION

Packing:

1: TPK packing

2: acording with your requirments

Shipping

(1): By sea

(2): By air

(3): By express (DHL, FEDEX, TNT, EMS... )

1: 24 hours Onliner service

2: repying your inquiry list in 8 hours by email

Payment

(1): TT (30 %  in Advanced, 70 % before Shipment)
(2): Western Union
(3): Cash

Related Parts

         Piston Kit, cylinder liner, gasket set, other engine parts

uangzhou TPK Diesel Parts Co.,Ltd, Build in 1996, is a professional  manufacturer on Diesel Piston, Piston ring, Cylinder Liner, Head Gasket & Overhaul Gasket Kit. TPK has been cooperating with OEM factory in China for several years, running business mainly in imported diesel engines (. All products in TPK have passed the national quality supervision on combustion engines and obtained certificates from ISO9002.

Till now, TPK has four storehouses in Guangzhou, occupying an area of over 5,000 square meters. The number of employees in TPK reaches up to 100, among which include 20 sales personnel in China, 15 sales personnel outside China, 10 QC personnel. TPK products command a ready market in Europe, Middle East, South America, North America, and Southeast Asia and are well received.

With the principles of international brand, good quality, shared resources, and serving the world, TPK endeavors to provide perfect accessories replacement solutions for customers. TPK is ready to cooperte with you to reach a win-win future.
