Product Description

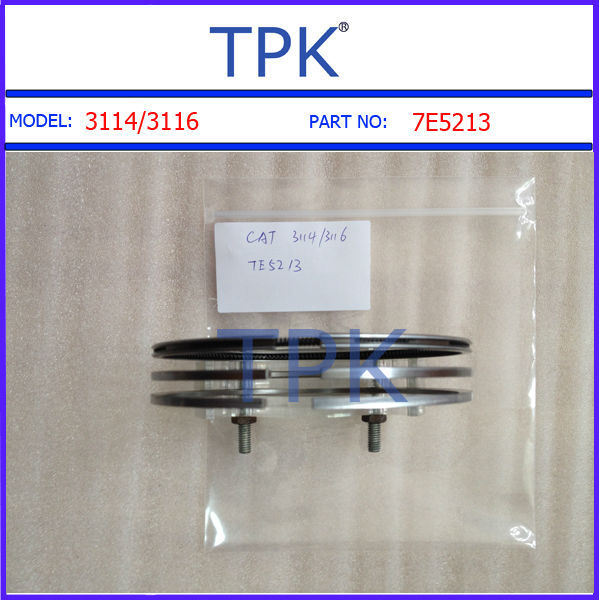

Specification For TPK Piston Ring
|
Item: |
3114 piston ring, 7E5213 |
|
Engine: |
3114 |
|
Oem No: |
7E5213 |
|
Material: |
DCI/ACI |
|
Dia(mm): |
105.0 |
|
Ring Size(mm): |
3.0+3.0+5.0 |
|
Moq: |
10 Sets For Ex-stocks, 150 Sets for Production |
|
Delivery: |
1-3 Days for Ex-stocks,45 days for production |
|
Packing: |
TPK or according to your requirements |
|
Other Parts: |
Piston Ring, Piston Ring Set,Ring Piston |
|
|
Cylinder Liner, Cylinder Sleeve |
|
|
Overhaul Gasket set,Complete Gasket kit, Full Gasket Set |
|
|
Cyliner Head Gasket |
|
FOR |
3114 |
6 |
Top |
105 |
3 |
4.3 |
|
|
|
|
3116 |
2nd |
3 |
4.3 |
|
|
7E5213 |
|
|
O |
5 |
4.3 |
|
|
|
Guangzhou TPK Diesel Parts Co.,Ltd
Our company's main engine parts for Ex-stocks as followings:
1: Cylinder block, cylinder head, crankshaft, camshaft, connecting rod.
2: Liner Kits. Piston kits, piston ring set, cylinder liner (sleeve), Pin bush.
3: Full gasket kit, head gasket,Oil Seal.
4: Engine bearing, Main bearing, con rod bearing,Camshaft Bearing,thrust washer
5: Engine valve, valve seat, valve guide.
6: Oil Pump, water pump,
7: Starter, alternator
8: Turbocharger
3024,3044,3046,3054,3056, 3064, 3066, 3176, 3114, 3116, 3204, 3208, 3126,
3304,3304PC,3304DI, 3306,3306PC,3306DI, 3406, 3408, 3412, 3508, 3512, 3516,
C2.2, C4.2,C4.4, C6.4, C6.6, C7, C9, C10,C11, C12, C15,C18, C18,C27
D315,D318,D330,D333,D343,D346,D348,D349,D353,D9H,D8,D8H,D8K,G3300,G3406,G3412,G353
Other Piston ring
|
3306C |
N/A |
9S3029
5S6750
6I0497 |
1646560 |
|
3304, 3306 |
2114321 |
2W1707
2W1708
6I0497 |
1654262 |
|
3304, 3306 |
2W1709 |
2W1707
2W1708
7E6047 |
1654262 |
|
3304, 3306 |
2114321 |
2W1707
2W1708
6I0497 |
1684531 |
|
3406E |
N/A |
1343761
1445902
7N7078 |
1684540 |
|
3500, 3508 |
N/A |
1445695 |
1720919 |
3406, 3408,
3412 |
1W8922 |
2W1521
2P2817
7N7078 |
1723284 |
PARTS SHOW
D340 / 9.8L 4
Diesel
Cylinder
595 CID Stroke
Bore 5.400
6.500
CYLINDER KIT
6 PLG9N2874 Cylinder kit 5.400 bore, 2.00 pin, PC [9N2874 piston, 8N0822 rings, 7N9806 pin, 3F8513 retainers, 1260739 liner]
6 LK0735 Cylinder kit 5.4000 bore, PC, 2.000 pin, straight rod, dual ni, 1/4 oil ring [7N0735 piston, 1P0734 rings, 7N9806 pin,
7E5665 retainers, 1260739 liner, 5P8789 seal kit]
6 9N2874 Piston body 5.400 bore, 2.00 pin, PC, straight rod, 4 valve relief with plug, 1/8 oil ring
6 7N0735 Piston body 5.4000 bore, 2.00 pin, PC, straight rod, early type piston L/F, dual-ni, 1/4 oil ring groove
6 8N0822 Ring set 1/8 keystone top ring [8N0502 top, 2P2817 mid, 7N7078 oil] 1 cyl set
6 1P0734 Ring set 5.4000 bore, 1/4 oil ring [1 cyl set]
6 7N9806 Piston pin 2.000 dia, 4.525 length (straight and narrow taper rod)
12 3F8513 Retiner piston pin
12 7E5665 Retainer piston pin Use with 2.000 pin diameter [repl 8N7295]
6 1260739 Cylinder liner 5.4000 bore [uses (3) 3S3978, (1) 9L5854 seals] [repl 6N8700]
6 5P8789 Cylinder liner oring kit Contains: (3) 3S3978, (1) 9L5854
18 3S3978 Cylinder liner oring
6 9L5854 Cylinder liner oring Upper band seal, 1 per liner
BEARINGS
4 7W2138 Bearing main pair Std, 4.500 journal, 4.8860 housing bore, 1.500 length
4 8N5346 Bearing main pair .025
4 8N5347 Bearing main pair .050
1 7W2137 Bearing thrust pair Std, 4.500 journal, 4.8860 housing bore, 1.500 and 2.088 length
1 8N5341 Bearing thrust pair .025
1 8N5342 Bearing thrust pair .050
4 7W2136 Bearing rod pair Std, 3.540 journal, 3.8560 housing bore, 1.776 length
4 8N5339 Bearing rod pair .025
4 8N5338 Bearing rod pair .050
8 5M3560 Bearing cam 2.885 shaft, 3.127 OD, 0.744 OAL
2 5M3603 Bearing cam 1.878 shaft, 2.127 OD, 0.720 OAL
4 1M6107 Bushing con rod 2.001 ID, 2.183 OD, 1.875 OAL
GASKET & SEALS
GASKET NOTE For gasket sets: Call with Serial and Arrangement Numbers
CAMSHAFT
CAMSHAFT CAMSHAFT Remanufactured available, call with casting number
VALVE TRAIN
CYLHEAD NOTE For complete and bare cylinder heads - Refer to Cylinder Head Catalog or Call with casting
8 1N4885 Valve intake 1.771 head dia, 5.997 OAL [repl 1P0407]
8 7E7830 Valve exhaust 1.646 head dia, 5.997 length [repl 1P1081]
32 2A4429 Valve lock 0.372 stem dia, 2G, 7 degree
16 6N2236 Valve guide [repl 2N3293]
16 2S4213 Valve spring
16 4N6761 Rotator
8 9M3205 Insert intake
8 1W5283 Valve insert Exhaust, IPD standard size 1.692"
TURBO / AIR
TURBO TURBOCHARGER New or remanufactured available, call for pricing
D342 / 20.4L 6
Diesel
Cylinder
1246 CID Stroke
Bore 5.750
8.000
CYLINDER KIT
6 LK9111 Cylinder kit 5.750 bore, PC, straight rod, with plug, rect ring [4M9111 piston, 3S4031 rings, 7N9809 pin, 7M4926
retainers, 8N5676 liner, 5P9221 seal kit]
6 PLG7N1366 Cylinder kit 5.750 bore, PC, straight rod, with plug, key ring [8N5676 liner, 7N1366 piston, 8N5760 rings, 7N9809
pin, 7M4926 retainers, 8N5676 liner]
6 4M9111 Piston body 5.750 bore, PC, straight rod, with plug, rectangular ring; use with ring set 3S4031
6 7N1366 Piston body 5.750 bore, PC, straight rod, with plug, keystone ring
6 3S4031 Ring set 5.7500 bore, rectangular ring [1 cyl set]
6 8N5760 Ring set 5.7500 bore, keystone ring [1 cyl set]
6 7N9809 Piston pin 2.3899 dia, 4.726 length
12 7M4926 Retainer piston pin use with 2.400 dia pin [repl 6B2291]
6 8N5676 Cylinder liner 5.7500 bore, bare liner
6 5P9221 Cylinder liner oring kit Contains: (3) 6L7812, (1) 8N4638
18 6L7812 Cylinder liner oring Lower liner seal; contained in 5P9221 seal kit
6 8N4638 Cylinder liner oring Upper filler band; contained in 5P9221 seal kit
BEARINGS
D339BRG NOTE 3 styles of mains: (1) 3.750 sft, 4.625 hsg bore; (2) 3.750 sft, 4.114 hsg bore, (3) 4.261 sft, 4.625 hg
bore
D339BRG1 NOTE Early main bearing set: 3.750 shaft, 4.625 housing bore
1 6F1931 Bearing main pair Std, rear; 3.7500 journal, 4.625 housing bore, 2.587 length
4 6F1932 Bearing main pair Std, intermediate; 3.7500 journal, 4.625 housing bore, 1.791 length
1 4H5510 Bearing thrust pair Std, center; 3.7500 journal, 4.625 housing bore, 3.256 and 3.858 length
1 6H4510 Bearing main pair Std, front; 3.7500 journal, 4.625 housing bore, 4.083 length
1 6H4498 Seal Front, Std
1 2H2451 Bearing main pair .025, rear
5 2H2449 Bearing main pair .025, intermediate
1 4H5511 Bearing thrust pair .025, center
1 7H4448 Bearing main pair .025, front
1 7H6747 Seal Front, Oversize
1 6F1935 Bearing main pair .050, rear
5 6F1936 Bearing main pair .050, intermediate
1 4H5512 Bearing thrust pair .050, center
1 7H4449 Bearing main pair .050, front
1 7H6747 Seal Front, Oversize
D339BRG2 NOTE Mid main bearing set:: 3.750 shaft, 4.114 housing bore
5 9M2429 Bearing main pair Std, Intermediate and Rear; 3.7500 journal, 4.114 housing bore, 1.780 length
1 9M2430 Bearing thrust pair Std, Center; 3.7500 journal, 4.114 housing bore, 3.256 and 3.858 length
1 9M2431 Bearing main pair Std, Front; 3.7500 journal, 4.114 housing bore, 4.086 length
1 3S7569 Adapter Std, Front
1 6H4498 Seal Front, Std
5 1S7573 Bearing main pair .025, Intermediate and Rear
1 1S7574 Bearing thrust pair .025, Center
1 1S7575 Bearing main pair .025, Front
1 4S5358 Adapter Front, Oversize
1 7H6747 Seal Front, Oversize
5 1S7576 Bearing main pair .050, Intermediate and Rear
