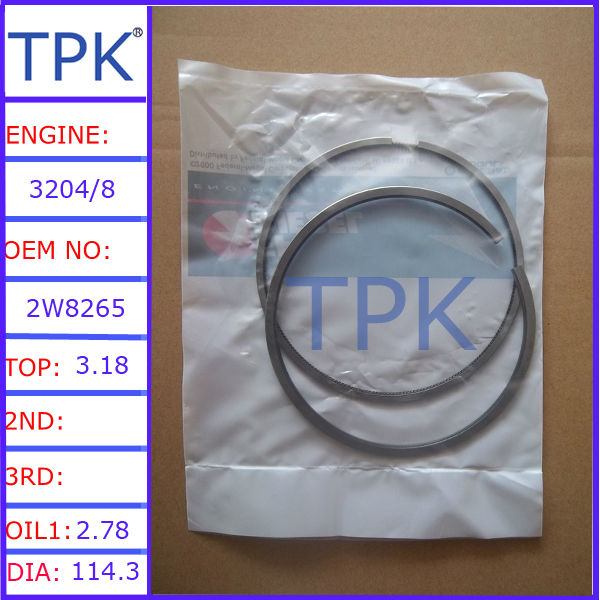

3204 piston ring, 2W8265, engine parts

Product Attribute:

Supply Ability:6000 Set/Sets per Month

Delivery Details:1-3 DAYS FOR EX-STOCKS,30-45 DAYS FOR PRODUCTION

Production Description:

 Product Description

Specification For TPK Piston Ring

Guangzhou TPK Diesel Parts Co.,Ltd

Our company's main engine parts for Ex-stocks as followings:

1: Cylinder block, cylinder head, crankshaft, camshaft, connecting rod.
2: Liner Kits. Piston kits, piston ring set, cylinder liner (sleeve), Pin bush.
3: Full gasket kit, head gasket,Oil Seal.
4: Engine bearing, Main bearing, con rod bearing,Camshaft Bearing,thrust washer
5: Engine valve, valve seat, valve guide.
6: Oil Pump, water pump,
7: Starter, alternator
8: Turbocharger

C-A-T:

3024,3044,3046,3054,3056, 3064, 3066, 3176, 3114, 3116, 3204, 3208, 3126,
3304,3304PC,3304DI, 3306,3306PC,3306DI, 3406, 3408, 3412, 3508, 3512, 3516,
C2.2, C4.2,C4.4 C6.4 C6.6, C7, C9, C10,C11, C12, C15,C18, C18,C27
D315,D318,D330,D333,D343,D346,D348,D349,D353,D9H,D8,D8H,D8K,G3300,G3406,G3412,G353

Other Piston ring for

 3204 / 5.2L 4

Diesel
Cylinder
318 CID Stroke
Bore 4.500
5.000
CYLINDER KIT
4 PK4221 Piston kit Std, 4.500 bore, 2-ring style, PC, straight rod; Piston, rings, pin, retainers [6N4221, 2W8265, 7N9803,
8N7294]
4 6N4221 Piston body Std, 4.500 bore, 2-ring style, PC, straight rod, rectangular rings; use with ring set 2W8265
4 PK4341 Piston kit .020, 2-ring style, PC, straight rod; Piston, rings, pin, retainers [6N4341, 2W8646, 7N9803, 8N7294]
4 6N4341 Piston body .020, 2-ring style, PC, straight rod, rectangular rings; use with ring set 2W8646
4 PK4351 Piston kit .040, 2-ring style, PC, straight rod; Piston, rings, pin, retainers [6N4351, 2W8647, 7N9803, 8N7294]
4 6N4351 Piston body .040, 2-ring style, PC, straight rod, rectangular rings; use with ring set 2W8647
4 PK3208TA Piston kit Std, 3-ring style, turbo, 17.1:1 CR; Piston, rings, pin, retainers
4 3208TA Piston body Std, 3-ring style, turbo, 17.1:1 CR
4 PK3208TB Piston kit .020, 3-ring style, turbo, 17.1:1 CR; Piston, rings, pin, retainers
4 3208TB Piston body .020, 3-ring style, turbo, 17.1:1 CR
4 PK3208TC Piston kit .030, 3-ring style, turbo, 17.1:1 CR; Piston, rings, pin, retainers
4 3208TC Piston body .030, 3-ring style, turbo, 17.1:1 CR
4 PK3208TD Piston kit .040, 3-ring style, turbo, 17.1:1 CR; Piston, rings, pin, retainers
4 3208TD Piston body .040, 3-ring style, turbo, 17.1:1 CR
4 PK3208HA Piston kit Std, 3-ring style, non-turbo, 18.2:1 CR; Piston, rings, pin, retainers
4 3208HA Piston body Std, 3-ring style, non-turbo, 18.2:1 CR
4 PK3208HB Piston kit .020, 3-ring style, non-turbo, 18.2:1 CR; Piston, rings, pin, retainers
4 3208HB Piston body .020, 3-ring style, non-turbo, 18.2:1 CR
4 PK3208HC Piston kit .030, 3-ring style, non-turbo, 18.2:1 CR; Piston, rings, pin, retainers
4 3208HC Piston body .030, 3-ring style, non-turbo, 18.2:1 CR
4 PK3208HD Piston kit .040, 3-ring style, non-turbo, 18.2:1 CR; Piston, rings, pin, retainers
4 3208HD Piston body .040, 3-ring style, non-turbo, 18.2:1 CR
4 PK1146 Piston kit Std, 4.500 bore, 2-ring style, DI, taper rod; Piston, rings, pin, retainers [7C1146, 2W8265, 7N9803,
8N7294] [Can replace in sets with 3-ring PK3208TA]
4 7C1146 Piston body Std, 4.500 bore, 2-ring style, DI, taper rod [Can repl in sets with 3-ring PK3208TA] use w/ring 2W8265
4 PK4831 Piston kit Std, 4.500 bore, 2-ring style, DI, tapered rod, 16.5:1 CR; piston, rings, pin retainers [2W4831, 2W8265,
7N9803, 8N7294] [Can replace sets with 3-ring PK3208TA]
4 2W4831 Piston body Std, 4.500 bore, 2-ring style, DI, 2.320 CD, cup .824 x 2.50, tapered rod, 16.5:1 CR [Can replace sets
with 3-ring PK3208TA] use with ring set 2W8265
4 PK8410 Piston kit .020, 2-ring style, DI, tapered rod, 16.5:1 CR; Piston, rings, pin, retianers [2W8410, 2W8646, 7N9803,
8N7294]
4 2W8410 Piston body .020, 2-ring style, 2.320 CD, cup .824 x 2.50, tapered rod, 16.5:1 CR, use with ring set 2W8646
4 2W4831 30 Piston body .030, 2-ring style, 2.320 CD, cup .824 x 2.50, tapered rod, 16.5:1 CR
4 PK8411 Piston kit .040, 2-ring style, DI, tapered rod, 16.5:1 CR; Piston, rings, pin, retianers [2W8411, 2W8647, 7N9803,
8N7294]
4 2W8411 Piston body .040, 2-ring style, 2.320 CD, cup .824 x 2.50, tapered rod, 16.5:1 C, Ruse with ring set 2W8647
4 PK4729 Piston kit Std, 4.500 bore, 3-ring style,DI, tapered rod, 16.5:1 CR, (2) 1/8, (1) 7/64; piston, rings, pin retainers
[7E4729, 7E4729-RS, 7N9803, 8N7294]
4 7E4729 Piston body Std, 4.500 bore, 3-ring style, DI, tapered rod, 16.5:1 CR; (2) 1/8, (1) 7/64; use w/ring set 7E4729-RS
4 3R3208RSA Ring set Std, 3-ring style [1 cyl set] (2) 3/32, (1) 3/16
4 3R3208RSB Ring set .020, 3-ring style [1 cyl set] (2) 3/32, (1) 3/16
4 3R3208RSC Ring set .030, 3-ring style [1 cyl set] (2) 3/32, (1) 3/16
4 3R3208RSD Ring set .040, 3-ring style [1 cyl set] (2) 3/32, (1) 3/16
4 2W8265 Ring set 4.5000 bore; Std, 2-ring style: (1) 1/8, (1) 7/64 [1 cyl set]

4 2W8265 10 Ring set .010, 2-ring style [1 cyl set]
4 2W8646 Ring set .020, 2-ring style: (1) 1/8, (1) 7/64 [1 cyl set]
4 2W8265 30 Ring set .030, 2-ring style [1 cyl set]
4 2W8647 Ring set .040, 2-ring style: (1) 1/8, (1) 7/64 [1 cyl set]
4 2W8265-3R Ring set Std, 3-ring style [1 cyl set] (2) 3/32, (1) 3/16, rect comp
4 2W8646-3R Ring set .020, 3-ring style [1 cyl set] (2) 3/32, (1) 3/16, rect comp
4 2W8647-3R Ring set .040, 3-ring style [1 cyl set] (2) 3/32, (1) 3/16, rect comp
4 7E4729-RS Ring set Std, 4.500 bore, 3-ring style: (2) 1/8, (1) 7/64, keystone comp [1 cyl set]
4 7N9803 Piston pin For all 3-ring and 2-ring pistons, 1.500 dia, 3.207 length [repl 9L9889]
8 8N7294 Retainer piston pin For all 3-ring and 2-ring pistons
4 9N6275 Cylinder liner Repair sleeve, 3/32 thick
4 9N6275SP Cylinder liner Repair sleeve, 1/8 thick
BEARINGS
3204BRGS MAIN BEARING NOTE Select main bearings by serial# & arrangement#; 1.000 length bearings [5059M, MS2020P]
Use in sets: 4W8093, 4W08092, 6N8940
3 4W8093 Bearing main pair Std; non grooved, 3 oil holes, center tang, 3.500 journal, 3.708 housing bore, 1.000 length
3 8N8976 Bearing main pair .010
3 8N8972 Bearing main pair .020
3 4W8093 30 Bearing main pair .030
3 4W8093 40 Bearing main pair .040
2 4W8092 Bearing main pair Std; grooved, center oil hole, right hand offset tang, 3.500 jrn, 3.708 hsg bore, 1.000 length
2 8N9022 Bearing main pair .010
2 8N9023 Bearing main pair .020
2 4W8092 30 Bearing main pair .030
2 4W8092 40 Bearing main pair .040
2 8N9020 Bearing main pair .050
2 6N8940 Thrust plate .185 thick (replaces 6N4129)
3204BRGS2 MAIN BEARING NOTE Select main bearings by serial# & arrangement#; 1.173 length bearings [MS2000P]
Use in sets: 1W0311, 1W0312, 1003652
2 1W0311 Bearing main pair Std, 3.500 journal, 3.708 housing bore, 1.173 length
2 1W1661 Bearing main pair .010
2 1W1662 Bearing main pair .020
2 1W1663 Bearing main pair .050
3 1W0312 Bearing main pair Std, 3.500 journal, 3.708 housing bore, 1.173 length
3 1W1655 Bearing main pair .010
3 1W1656 Bearing main pair .020
3 1W1657 Bearing main pair .050
2 1003652 Thrust plate .214 thick (replaces 7N9342)
4 8N6308 Bearing rod pair Std, 2.750 journal, 2.9423 housing bore, 1.260 length
4 1N3821 Bearing rod pair .010
4 1N3822 Bearing rod pair .020

4 1W3906 Bearing rod pair .050
4 9N5082 Bushing con rod For tapered connecting rod
4 8N0701 Bushing con rod For straight connecting rod
4 9N5246 Bearing cam [repl 9L8072]
3 or 4 used; 2 used with 1W5920 front bearing
1 1W5920 Bearing cam
Front, used with (2) 9N5246
GASKET & SEALS
GASKET NOTE For gasket sets: Call with Serial and Arrangement Numbers
9L8016 Gasket oil pan
G3 CRANK SEALS
1 9L7735 Seal crankshaft front 2.375 shaft, 3.066 OD
9N0307 Seal crankshaft front 2.875 shaft, 3.628 OD; Lip type seal
7C6660 Seal crankshaft front 2.875 shaft, 3.628 OD; Directional teflon seal (included in overhaul gasket set)
1 99237 Sleeve crank seal Front, redi-sleeve: 2.374/2.380, 0.781 width
5P6183 Sleeve crank seal Front, for 2.875 shaft
7W3200 Seal crankshaft rear Seal and sleeve, directional (included in overhaul gasket set) [repl 9L7736, 9L7600]
99499 Sleeve crank seal Rear, 4.998/5.006 shaft, 1.000 width
CAMSHAFT
1 2W1221 Camshaft [OEM] (9Y3353 cam kit) Call for price and availability of remanufactured
1 4N0657 Camshaft [OEM] (9Y3351 cam kit) Call for price and availability of remanufactured
1 6N2394 Camshaft [OEM] (9Y3353 cam kit) Call for price and availability of remanufactured
8 4N0649 Lifter [OEM] Call for price and availability of remanufactured
VALVE TRAIN
CYLHEAD NOTE For complete and bare cylinder heads - Refer to Cylinder Head Catalog or Call with casting
4 9N0180 Valve intake 1.894 head dia, 5.701 OAL, 0.372 stem dia, 30 degree
4 9L7682 Valve intake 2.094 head dia, 5.698 length, 0.3725 stem, 30 deg, 2G
4 9N0185 Valve exhaust 1.801 head dia, 5.685 length, 0.372 stem dia, 45 degree
4 9L7683 Valve exhaust 1.804 head dia, 5.693 length, 0.3715 stem, 45 deg, 2G
Non-turbo engines
4 1196772 Valve exhaust 1.804 head dia, 5.683 length, 0.3715 stem, 45 deg, 2G; Stellite (replaces 9N5125)
Turbo engines
16 2A4429 Valve lock 0.372 stem dia, 2G, 7 degree
8 6I2864 Valve guide Intake; converts cast in guide to replaceable guide
8 6I2865 Valve guide Exhaust; converts cast in guide to replaceable guide
8 9N0187 Rotator Use with 9N0180, 9N0185 valves
8 9L9425 Valve spring retainer use with 9N3617 spring only
8 1W4259 Valve spring 2.000 free, 1.56 OD, 1.15 ID, 0.20 wire
8 9N3617 Valve spring 1.875 height, .190 wire dia
8 1W9897 Valve spring washer Lower washer, all engines
4 7W9143 Valve stem seal
Intake
4 9N0181 Valve insert Intake; use with 9N0180 valve
4 2N8943 Valve insert Intake
4 9N2837 Valve insert Exhaust
CRANKSHAFT
1 1W9771 Crankshaft
CONNECTING ROD
4 0R3274 Connecting rod Remanufactured; specify casting and straight or tapered
4 4N2217 Connecting rod New, straight, cast# 4N2218

2:PARTS SHOW

3:FACTORY WORKSHOP AND INTRODUCTION

Packing:

1: TPK packing

2: acording with your requirments

Shipping

(1): By sea

(2): By air

(3): By express (DHL, FEDEX, TNT, EMS... )

1: 24 hours Onliner service

2: repying your inquiry list in 8 hours by email

Payment

(1): TT (30 %  in Advanced, 70 % before Shipment)
(2): Western Union
(3): Cash

Related Parts

         Piston Kit, cylinder liner, gasket set, other engine parts
