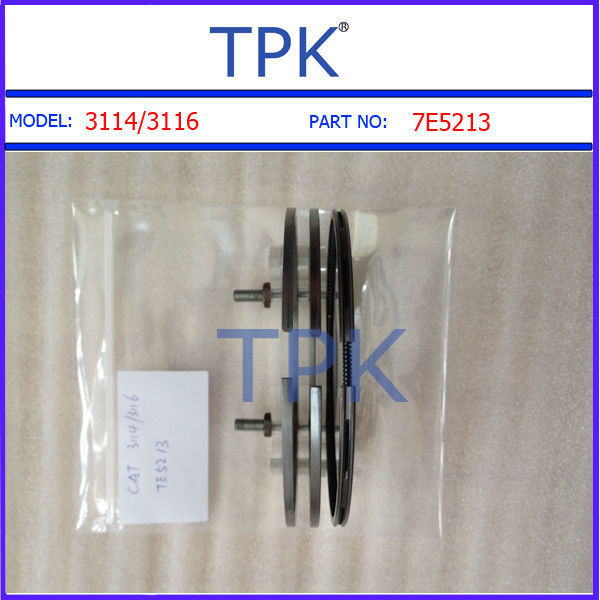

3116 ENGINE PISTON, RING SET, 7E5213

Product Attribute:

Supply Ability:6000 Set/Sets per Month

Delivery Details:1-3 DAYS FOR EX-STOCKS,30-45 DAYS FOR PRODUCTION

Production Description:

 Product Description

Specification For TPK Piston Ring

Guangzhou TPK Diesel Parts Co.,Ltd

Our company's main engine parts for Ex-stocks as followings:

1: Cylinder block, cylinder head, crankshaft, camshaft, connecting rod.
2: Liner Kits. Piston kits, piston ring set, cylinder liner (sleeve), Pin bush.
3: Full gasket kit, head gasket,Oil Seal.
4: Engine bearing, Main bearing, con rod bearing,Camshaft Bearing,thrust washer
5: Engine valve, valve seat, valve guide.
6: Oil Pump, water pump,
7: Starter, alternator
8: Turbocharger

3024,3044,3046,3054,3056, 3064, 3066, 3176, 3114, 3116, 3204, 3208, 3126,
3304,3304PC,3304DI, 3306,3306PC,3306DI, 3406, 3408, 3412, 3508, 3512, 3516,
C2.2, C4.2,C4.4, C6.4, C6.6, C7, C9, C10,C11, C12, C15,C18, C18,C27
D315,D318,D330,D333,D343,D346,D348,D349,D353,D9H,D8,D8H,D8K,G3300,G3406,G3412,G353

Other Piston ring for

PARTS SHOW

D379 / 32.2L 8
Diesel
Cylinder
1964 CID Stroke
Bore 6.250
8.000
CYLINDER KIT
8 PLG7N4515 Cylinder kit 6.2500 bore, rectangular ring [7N4515 piston, 1W5105 rings, 7N9810 pin, 7M4926 retainers, 8N9174
liner]
8 PLG7N5036 Cylinder kit 6.2500 bore, keystone ring [7N5036 piston, 1N3601 rings, 7N9810 pin, 7M4926 retainers, 8N9174 liner]
8 8M3167 Piston body 6.2500 bore, PC [3S4066]
8 7N4515 Piston body 6.2500 bore, PC [3S5502] rectangular compression ring
8 7N5036 Piston body 6.2500 bore, PC [7N5037] keystone compression ring
8 5H1085 Piston pin 2.4 dia; use with 8M3167 piston
8 7N9810 Piston pin 2.5 dia; use with 7N4515, 7N5036 piston [4L3843]
16 7M4926 Retainer piston pin use with 2.400 dia pin [repl 6B2291]
8 1W5105 Ring set 6.2500 bore, use with 8M3167, 7N4515 piston [9S8973]; rectangular comp ring
8 1N3601 Ring set 6.2500 bore, use with 7N5036 piston; keystone comp ring
8 8N9174 Cylinder liner 6.2500 bore
8 5P8970 Cylinder liner oring kit For one liner, contains: (3) 6L7815, (1) 8N4708
24 6L7815 Cylinder liner oring Lower liner seal; contained in 5P8970 seal kit
8 8N4708 Cylinder liner oring Upper filler band; contained in 5P8970 seal kit
BEARINGS
5 8N7764 Bearing main pair Std, 5.750 journal, 6.3730 housing bore, 2.130 length
5 8N7764 10 Bearing main pair .010
5 8N7765 Bearing main pair .025
5 8N7766 Bearing main pair .050
2 4L4653 Thrust washer 0.284 thick
8 8N7769 Bearing rod pair Std, 5.000 journal, 5.3850 housing bore, 1.862 length
8 8N7769 10 Bearing rod pair .010
8 8N7770 Bearing rod pair .025
8 8N7771 Bearing rod pair .050
5 5L2894 Bearing cam
8 8N2275 Bushing con rod 2.450 ID, 2.678 OD, 2.250 length
GASKET & SEALS
GASKET NOTE For gasket sets: Call with Serial and Arrangement Numbers
4 3N3220 Gasket cylinder head Metal clad, use with 6L4497 gasket
4 3N3220CP Gasket cylinder head Soft, use with 6L4497 gasket
4 6L4497 Gasket push rod oil Push rod oil return, use with 3N3220 or 3N3220CP
4 6L3352 Gasket valve cover
4 2N3597 Seal valve cover
1 4W2606 Seal crankshaft Directional CW
1 4W2607 Seal crankshaft Directional CCW
2 3N9160 Ring crankshaft Piston ring type
1 8L5457 Gasket oil pan
CAMSHAFT
CAMSHAFT CAMSHAFT Remanufactured available, call with casting number
16 1021561 Lifter (repl 5L5486)
VALVE TRAIN
CYLHEAD NOTE For complete and bare cylinder heads - Refer to Cylinder Head Catalog or Call with casting
D353HEAD1 NOTE: Tapered groove valve stem with 0.4955 dia and 3 locks each
8 7M7817 Valve intake 2.505 head, 0.4955 stem, tapered groove [4H9805, 6H3186, 1M7452]
8 8N3723 Valve exhaust 2.340 head, 0.4955 stem, tapered groove [4H9804, 6H3187, 8H7097, 4N6883, 3N1141]

16 7S6323 Valve spring Single spring
Single spring, use with 7N7639 rotocap
16 4F5408 Valve spring Outer, 1.641 OD, 2.421 free
Dual spring
16 4F5409 Valve spring Inner, 1.145 OD, 2.359 free
Dual spring
8 4N3664 Valve guide Intake; non flanged, use with 3N1414 spacer; for 0.4955 stem dia, 5.045 length
8 6N8847 Valve guide Exhaust; non flanged, use with 3N1414 spacer; for 0.4955 stem dia, 5.438 length
16 3N1414 Spacer Use with non-flanged guide
48 3B1143 Valve lock No bead, for tapered valve stem, for 0.4995 stem
16 7N7639 Rotator [repl 8M7637, 4S7468]
Use with single valve spring
16 7F7666 Rotator
Use with dual valve springs
16 3H5867 Retainer
12 used; 6 used on intake with 3B1142 used on exhaust
8 3B1142 Retainer
6 used on exhaust with 3H5867 retainer on intake
8 5H1464 Valve seat Intake
use with 6H8514 cylinder head
8 5S1757 Valve seat Intake
8 5H1463 Valve seat Exhaust
use with 6H8514 cylinder head
8 8M4014 Valve seat Exhaust
D353HEAD2 NOTE: Two groove valve stem with 0.3717 dia and 2 locks each
8 1W8606 Valve intake 2.505 head, 0.3717 stem, 2 groove
8 2W3211 Valve exhaust 2.350 head, 0.3717 stem, 2 groove
8 1W1822 Valve exhaust 2.350 head, 0.3717 stem, 2 groove
16 9M5349 Valve spring Inner, 1.125 OD, 2.201 free
16 9M5350 Valve spring Outer, 1.654 OD, 2.574 free
8 2N9298 Valve guide Intake; for 0.3717 stem, 5.065 length
8 2N9299 Valve guide Exhaust; for 0.3717 stem, 5.450 length
16 3N1414 Spacer Use with non-flanged guide
32 2A4429 Valve lock 0.372 stem dia, 2G, 7 degree
16 7N7639 Rotator [repl 8M7637, 4S7468]
8 1W3062 Retainer Intake; includes 8N7780 shield
8 2N9297 Retainer Exhaust
8 5S1757 Valve seat Intake
8 8M4014 Valve seat Exhaust
FUEL / INJECTOR
8 9F2393 Nozzle service group Contains: capsule nozzle, orings, seal ring
8 7M7431 Nozzle service group Contains: capsule nozzle, orings, seal ring
COOLING SYSTEM
4 6I4954 Thermostat Used with 4W9135 water connector group (4W4011)
4 4W4794 Thermostat Used with 7W8066 water lines group only, 180 degree [new# 2477133]
4 4W4841 Thermostat 190 degree
4 3S9643 Seal thermostat Use with 6I4954 and 4W4794 thermostats
1 3S1723 Set water pump All engines with large case seal
TURBO / AIR
TURBO TURBOCHARGER New or remanufactured available, call for pricing
BLOCK
8N6938 Insert block 0.0625, stainless steel

3:FACTORY WORKSHOP AND INTRODUCTION

Packing:

1: TPK packing

2: acording with your requirments

Shipping

(1): By sea

(2): By air

(3): By express (DHL, FEDEX, TNT, EMS... )

1: 24 hours Onliner service

2: repying your inquiry list in 8 hours by email

Payment

(1): TT (30 %  in Advanced, 70 % before Shipment)
(2): Western Union
(3): Cash

Related Parts

         Piston Kit, cylinder liner, gasket set, other engine parts
