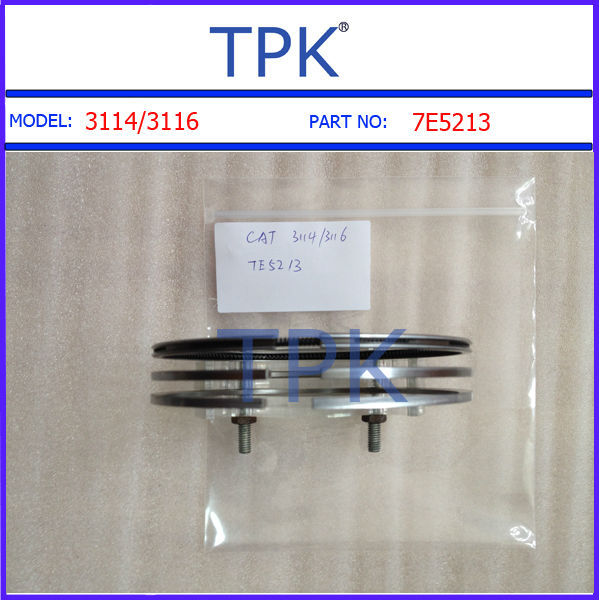

3114 ENGINE PISTON, RING SET, 7E5213

Product Attribute:

Supply Ability:6000 Set/Sets per Month

Delivery Details:1-3 DAYS FOR EX-STOCKS,30-45 DAYS FOR PRODUCTION

Production Description:

 Product Description

Specification For TPK Piston Ring

Guangzhou TPK Diesel Parts Co.,Ltd

Our company's main engine parts for Ex-stocks as followings:

1: Cylinder block, cylinder head, crankshaft, camshaft, connecting rod.
2: Liner Kits. Piston kits, piston ring set, cylinder liner (sleeve), Pin bush.
3: Full gasket kit, head gasket,Oil Seal.
4: Engine bearing, Main bearing, con rod bearing,Camshaft Bearing,thrust washer
5: Engine valve, valve seat, valve guide.
6: Oil Pump, water pump,
7: Starter, alternator
8: Turbocharger

3024,3044,3046,3054,3056, 3064, 3066, 3176, 3114, 3116, 3204, 3208, 3126,
3304,3304PC,3304DI, 3306,3306PC,3306DI, 3406, 3408, 3412, 3508, 3512, 3516,
C2.2, C4.2,C4.4, C6.4, C6.6, C7, C9, C10,C11, C12, C15,C18, C18,C27
D315,D318,D330,D333,D343,D346,D348,D349,D353,D9H,D8,D8H,D8K,G3300,G3406,G3412,G353

Other Piston ring

PARTS SHOW

D386 / 40.9L 12
Diesel
Cylinder
2493 CID Stroke
Bore 5.750
8.000
CYLINDER KIT
12 LK9111 Cylinder kit 5.750 bore, PC, straight rod, with plug, rect ring [4M9111 piston, 3S4031 rings, 7N9809 pin, 7M4926
retainers, 8N5676 liner, 5P9221 seal kit]
12 PLG7N1366 Cylinder kit 5.750 bore, PC, straight rod, with plug, key ring [8N5676 liner, 7N1366 piston, 8N5760 rings, 7N9809
pin, 7M4926 retainers, 8N5676 liner]
12 4M9111 Piston body 5.750 bore, PC, straight rod, with plug, rectangular ring; use with ring set 3S4031
12 7N1366 Piston body 5.750 bore, PC, straight rod, with plug, keystone ring
12 3S4031 Ring set 5.7500 bore, rectangular ring [1 cyl set]
12 8N5760 Ring set 5.7500 bore, keystone ring [1 cyl set]
12 7N9809 Piston pin 2.3899 dia, 4.726 length
24 7M4926 Retainer piston pin use with 2.400 dia pin [repl 6B2291]
12 8N5676 Cylinder liner 5.7500 bore, bare liner
12 5P9221 Cylinder liner oring kit Contains: (3) 6L7812, (1) 8N4638
36 6L7812 Cylinder liner oring Lower liner seal; contained in 5P9221 seal kit
12 8N4638 Cylinder liner oring Upper filler band; contained in 5P9221 seal kit
BEARINGS
D386BRG1 NOTE Early main bearing set:
6 7F9121 Bearing main pair Std
1 5F9848 Bearing main pair Std
6 4H9972 Bearing main pair .050
1 5F9847 Bearing main pair .050
D386BRG2 NOTE Late main bearing set:
6 4M8121 Bearing main pair Std
1 4M8122 Bearing main pair Std
6 4M9045 Bearing main pair .050
1 4M9046 Bearing main pair .050
12 4M9043 Bearing rod pair Std
12 4M9044 Bearing rod pair .050
1 7F5075 Bearing cam
6 7F5073 Bearing cam
12 4M9183 Bushing con rod 2.380 ID, 2.617 OD, 2.06 OAL
12 1599X Bushing con rod 2.350 ID, 2.687 OD, 2.067 OAL; Full round bushing; use with rod 7B6225, 7B6625
GASKET & SEALS
GASKET NOTE For gasket sets: Call with Serial and Arrangement Numbers
CAMSHAFT
CAMSHAFT CAMSHAFT Remanufactured available, call with casting number
VALVE TRAIN
CYLHEAD NOTE For complete and bare cylinder heads - Refer to Cylinder Head Catalog or Call with casting
12 8H1993 Valve intake 2.343 head dia, 9.297 OAL, 0.4955 stem dia, tapered groove [repl 7F5310]
12 8H1994 Valve exhaust 2.282 head dia, 9.266 length, 0.4955 stem dia, tapered groove [repl 7F4784, 5F8365, 1H9292]
24 4F5409 Valve spring Inner, 1.145 OD, 2.359 free
24 4F5408 Valve spring Outer, 1.641 OD, 2.421 free
12 2S0893 Valve guide Intake, flanged; for 0.4955 stem dia [repl 6F5263]
12 1S6654 Valve guide Exhaust, flanged; for 0.4955 stem dia
72 3B1143 Valve lock No bead, for tapered valve stem, for 0.4995 stem
24 7F7666 Rotator

3:FACTORY WORKSHOP AND INTRODUCTION

Packing:

1: TPK packing

2: acording with your requirments

Shipping

(1): By sea

(2): By air

(3): By express (DHL, FEDEX, TNT, EMS... )

1: 24 hours Onliner service

2: repying your inquiry list in 8 hours by email

Payment

(1): TT (30 %  in Advanced, 70 % before Shipment)
(2): Western Union
(3): Cash

Related Parts

         Piston Kit, cylinder liner, gasket set, other engine parts

Guangzhou TPK Diesel Parts Co.,Ltd, Build in 1996, is a professional  manufacturer on Diesel Piston, Piston ring, Cylinder Liner, Head Gasket & Overhaul Gasket Kit. TPK has been cooperating with OEM factory in China for several years, running business mainly in imported diesel engines. All products in TPK have passed the national quality supervision on combustion engines and obtained certificates from ISO9002.

Till now, TPK has four storehouses in Guangzhou, occupying an area of over 5,000 square meters. The number of employees in TPK reaches up to 100, among which include 20 sales personnel in China, 15 sales personnel outside China, 10 QC personnel. TPK products command a ready market in Europe, Middle East, South America, North America, and Southeast Asia and are well received.

With the principles of international brand, good quality, shared resources, and serving the world, TPK endeavors to provide perfect accessories replacement solutions for customers. TPK is ready to cooperte with you to reach a win-win future.
