Product Attribute:
Supply Ability:6000 Set/Sets per Month
Delivery Details:1-3 DAYS FOR EX-STOCKS,30-45 DAYS FOR PRODUCTION
Production Description:
Product Description

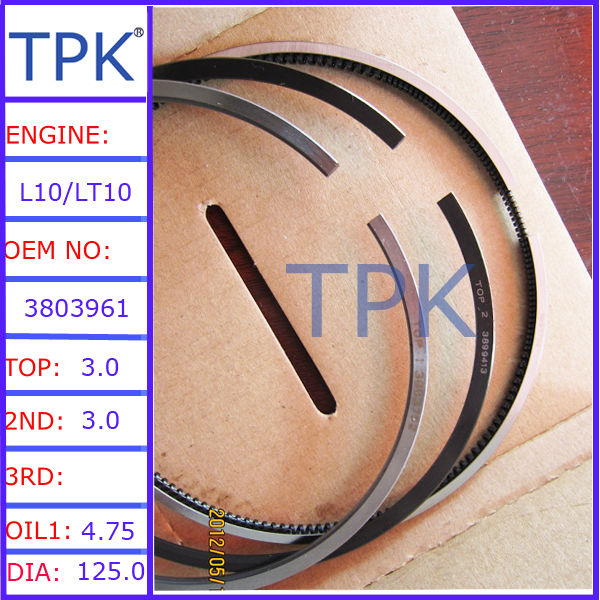

LT10 Engine piston ring,L10 piston ring Oem: 3803961
| | | 6 | Top | 125 | 3 | 4.4 | | | |
| LT10 | 2nd | 3 | 4.3 | | | 3803961 |
| L10 | O | 4.75 | 4.5 | | | |
PARTS SHOW FOR CMS ENGINE PISTON RING
CMS
Diesel
611 CID
L10, 10.0L
(Continued)
6 Cylinder
Stroke
Bore 4.9213
5.354
3818843-F 1 Gasket manifold intake Intake manifold, aftercooler [3818843; replaces 3017730]
Pre 1991
3069786-F 1 Gasket manifold intake Intake manifold, aftercooler [3069786; replaces 3066369]
91L10
3328948-F Gasket manifold exhaus Graphite style [3328948; replacaes 3819760, 3102804, 3026155]
G2 FRONT GASKETS
3058148-F 1 Gasket front gear cover For cast iron front gear cover [3058148; replaces 3037349, 3027714]
Pre 1991
3600925-F Gasket front plate For cast iron front gear cover [3600925; replaces 3032526, 3031940, 3028201]
Pre 1991
4089995-F Gasket front gear cover 1 Seal kit with 4920751 seal strip, (38) 4070462 and (5) 4070463 screw [replaces
4025151 kit, 3893964 seal strip]
91L10, stamped steel gear housing and cover
1 4920751-F Gasket front gear cover Rectangular seal strip [replaces 3893964, 3893812]
91L10, stamped steel gear housing and cover
3803573-F 1 Seal kit Front cover, water pump / alternator drive, 6-bolt [3803573; replaces 3801624,
3801135, 3032008, 3895062, 3049464, 3031445]
Pre 1991
1 3801136 Seal kit Front cover, accessory drive, 1st design, 1.496 inch (38mm) [3801136; replaces
3032009, 3027659, 3031446]
Pre 1991
1 3803574-F Seal kit Front cover, accessory drive, 2nd design, 1.772 inch (45mm) [3803574; replaces
3895035, 3821385, 3801625, 3801519]
Pre 1991
3803575-EP 1 Seal kit Front cover, gear drive fan hub [3803575; replaces 3801626, 3801137, 3032010,
3895036, 3821386, 3895064, 3049466, 3031447]
Pre 1991
1 3804304-F Seal kit Front cover, accessory drive, 3.75 dia, 5-bolt [3804304; replaces 3803728, 3803488,
3803273]
91L10
3803894-F 1 Seal kit Front cover, water pump / alternator drive, 3.75 dia, 5-bolt [3803894; replaces
3161772, 3803487, 3803272]
91L10
1 3899746-B Gasket accy drive Accessory drive support [3899746; replaces 3883390, 3031768, 3028311]
1 3004242-F Gasket hydraulic pump Hydraulic pump cover to adapter [3004242; supercedes to 3558515]
1 3818847-F Gasket hydraulic pump Hydraulic pump adapter, or cover without pump [3818847; replaces 3600881, 3027641]
1 2863702-F Oring hydraulic pump Hydraulic pump adapter [2863702; replaces 3883042]
1 4952625-B Gasket air compressor Air compressor mount [4952625; replaces 3820922, 3819770]
3883472-F 3 Gasket hand hole cvr [3883472]
91L10
G4 LOWER GASKETS
3025296-F Gasket cover plate cam rear
3818845-B 3 Gasket hand hole cvr [3818845]
Pre 1991
3026134-F 1 Gasket cover plate flywheel housing
G3 CRANK SEALS
TPK DIESEL PARTS CUM611-1 6/2/2014 (86)-20 37380256
CMS L10, 10.0L 6
DieselCylinder
611 CID Stroke
Bore 4.9213
5.354
(Continued)
3803896-F Seal crankshaft front 1 Kit, use with internal dampner, flat with clamping ring, replaces dimpled carrier
[3803896; 3803576 seal kit and (6) 3025802 capscrew]
3803576-F Seal crankshaft front 1 Seal with flat carrier and clamping ring; to replace dimpled carrier order 3803896; 6.25
dia, 6 bolt; 3895065 seal, 3600467 gasket, 3895069 ring [3803576; repl 3801627]
3804744-EP Seal crankshaft front 1 Kit, use with external front dampner [3804744]
4089544-EP Seal crankshaft rear 1 Kit, Dry clutch, REPTO and non-REPTO; 3883774 seal, 4022497 gsk, 3161025 dust seal,
(12) 3821783 screw [replaces 3800968, 3800643, 3883774, 3049468, 3031449]
4024777-F Seal crankshaft rear 1 Kit, Dry clutch, with sleeve [4024777; replaces 3819774 separate wear sleeve]
4089542-B Seal crankshaft rear 1 Kit, Dry clutch, non-REPTO applications; 4923644 seal, (12) 4083121 screw [4089542;
replaces 4923644, 4023018]
4089543-F Seal crankshaft rear 1 Dry clutch / non-REPTO applications with sleeve, new style [4089543; replaces 4004652]
3800969-EP Seal crankshaft rear 1 Kit, Wet clutch, 3883775 seal, 4022497 gasket, (12) 3821783 screw [3800969;
replaces 3803355, 3801629, 3801140, 3032013, 3027950]
4024778 Seal crankshaft rear 1 Kit, Wet clutch, with wear sleeve [repl 4004653]
3820917-F Sleeve crankshaft 1 Front, redi sleeve, 3.540/3.546 shaft [3820917; Natl 99351]
Pre 1991
3820918-F Sleeve crankshaft 1 Front, redi sleeve, 3.337/3.346 shaft [3820918; Natl 99333]
91L10
3819774-F Sleeve crankshaft 1 Rear, redi sleeve, 6.495/6.505 shaft (Natl 99650)
G5 PAN GASKETS
3882433-PS-F Set oil pan 1 Set; 3882433 gasket, (2) 3032787 oring, (2) 67946
Pre 1991
3882733-PS-F Set oil pan 1 Set; 3882733 gasket, (2) 3032787 oring, (2) 67946
91L10
3882433-F Gasket oil pan 1 13" wide, 43.25" length, 34 holes, narrow block, 7 gallon [3882433; replaces
3818842, 3026966]
Pre 1991, esn -> 34601884; esn -> 23524882
3882894-F Gasket oil pan 1 Narrow block, used with spacer (Identical to 3882433 except has 2 slotted holes)
Pre 1991
3401290-F Gasket oil pan 1 Wide block; 14" wide, 40.00" length, 32 holes, 9 gallon, silicone bead [3401290;
replaces 3882733]
91L10
67946-F Washer pan plug 2
3032787-F Seal oring 2 Lube oil transfer / pickup tube
Stroke
Bore 4.9213
5.354
(Continued)
3803896-F Seal crankshaft front 1 Kit, use with internal dampner, flat with clamping ring, replaces dimpled carrier
[3803896; 3803576 seal kit and (6) 3025802 capscrew]
3803576-F Seal crankshaft front 1 Seal with flat carrier and clamping ring; to replace dimpled carrier order 3803896; 6.25
dia, 6 bolt; 3895065 seal, 3600467 gasket, 3895069 ring [3803576; repl 3801627]
3804744-EP Seal crankshaft front 1 Kit, use with external front dampner [3804744]
4089544-EP Seal crankshaft rear 1 Kit, Dry clutch, REPTO and non-REPTO; 3883774 seal, 4022497 gsk, 3161025 dust seal,
(12) 3821783 screw [replaces 3800968, 3800643, 3883774, 3049468, 3031449]
4024777-F Seal crankshaft rear 1 Kit, Dry clutch, with sleeve [4024777; replaces 3819774 separate wear sleeve]
4089542-B Seal crankshaft rear 1 Kit, Dry clutch, non-REPTO applications; 4923644 seal, (12) 4083121 screw [4089542;
replaces 4923644, 4023018]
4089543-F Seal crankshaft rear 1 Dry clutch / non-REPTO applications with sleeve, new style [4089543; replaces 4004652]
3800969-EP Seal crankshaft rear 1 Kit, Wet clutch, 3883775 seal, 4022497 gasket, (12) 3821783 screw [3800969;
replaces 3803355, 3801629, 3801140, 3032013, 3027950]
4024778 Seal crankshaft rear 1 Kit, Wet clutch, with wear sleeve [repl 4004653]
3820917-F Sleeve crankshaft 1 Front, redi sleeve, 3.540/3.546 shaft [3820917; Natl 99351]
Pre 1991
3820918-F Sleeve crankshaft 1 Front, redi sleeve, 3.337/3.346 shaft [3820918; Natl 99333]
91L10
3819774-F Sleeve crankshaft 1 Rear, redi sleeve, 6.495/6.505 shaft (Natl 99650)
G5 PAN GASKETS
3882433-PS-F Set oil pan 1 Set; 3882433 gasket, (2) 3032787 oring, (2) 67946
Pre 1991
3882733-PS-F Set oil pan 1 Set; 3882733 gasket, (2) 3032787 oring, (2) 67946
91L10
3882433-F Gasket oil pan 1 13" wide, 43.25" length, 34 holes, narrow block, 7 gallon [3882433; replaces
3818842, 3026966]
Pre 1991, esn -> 34601884; esn -> 23524882
3882894-F Gasket oil pan 1 Narrow block, used with spacer (Identical to 3882433 except has 2 slotted holes)
Pre 1991
3401290-F Gasket oil pan 1 Wide block; 14" wide, 40.00" length, 32 holes, 9 gallon, silicone bead [3401290;
replaces 3882733]
91L10
67946-F Washer pan plug 2
3032787-F Seal oring 2 Lube oil transfer / pickup tube
CAMSHAFT
3036117-F Camshaft 1 CPL 528, 638, 703, 704, 717, 770, 773, 774, 775, 776, 777, 784, 785, 786, 881, 882
894, 919, 921, 958, 1198, 1234, 1198, 1359, 1414, 1454, 1459, 1660, 1674, 1687, 1695, 1696, 1699, 1849
3037523-F Camshaft 1 CPL: 652, 655, 671, 735, 748, 751, 764, 765, 780,
781, 783, 787, 788, 789, 790, 835, 836, 894, 978, 995, 1208, 1429, 1443
3417766-B Shaft cam follower 2 Shaft 3417769, plugs 4060455 [3417766; replaces 3895835, 3803724]
3895488-F Roller cam 12 Valve [3895488; replaces 3038178, 3033293, 3028098]
3335342-F 12 Valve [3335342; replaces 3328458, 3028105]
3895487-F Roller cam 6 Injector; 0.75 ID [3895487; replaces 3038179]
3335341-F Pin roller cam 6 Injector; 0.75 OD, 1.83 OAL [3335341; replaces 3328457, 3028106]
3161423-F Roller cam 6 Injector; 0.875 ID, 1.62 OD, 1.29 OAL [3161423; replaces 3895489, 3073651]
3335343-F Pin roller cam 6 Injector; 0.875 [3335343; replaces 3328456, 3073650]
TPK DIESEL PARTS CUM611-1 6/2/2014 (86)-20 37380256
CMS L10, 10.0L
Diesel
611 CID
(Continued)
6 Cylinder
Stroke
Bore 4.9213
5.354
3033292-F Socket Cam follower and Rocker levers [3033292]
Pre 1991
3064621-B Socket Cam follower and Rocker levers [3064621]
91L10
168306-F Screw rocker lever 18 1/2-20 x 2-3/64 [168306; replaces 213109]
S212-F Nut rocker lever 18 1/2-20 UNF [S212]
3066644-F Screw rocker lever 18 9/16-18 UNF [3066644]
3417765-B Shaft rocker lever 2
3019733-F Bushing rocker arm 12
3067871-F Bushing rocker arm 6
Shaft 3417767, plugs 4023085 [3417765; replaces 3803166, 3820750, 3028271]
For valve rocker arms [3019733]
For injector rocker arms [3067871; replaces 3033225]
3892251-EP Push rod12 Valve, 5.75 length, solid rod [3892251; replaces 3820151, 3019282]
Pre 1991
3892170-EP Push rod6 Injector, 5.75 length, solid rod [3892170; replaces 3820152, 3019283, 3047667]
Pre 1991
3069043 Push rod 6 Injector [3069043]
Pre 1991
3068390-F Push rod 12 Valve, 6.50 length, tube [3068390]
91L10
3076046-EP Push rod6 Injector, solid [3076046; replaces 4022824]
91L10
3067830 Push rod 6 Injector [3067830]
91L10
VALVE TRAIN
3055721C Cylinder head 1
4003980RX Cylinder head 1
L10HEAD01
Remanufactured complete, L10-88 Dual valve springs [Assy: 3896288; Cast: 3055721]
Remanufactured complete, L10-91 Single valve springs [Assy: 4004086, 3883527; Cast
3417629, 3883525]
Pre-1991 valve train:
3801356-F Valve intake kit 12 Kit; 3033234 valve, 3275354 locks [3801356]
3033234-F Valve intake 12 1.673 head, 6.945 length; use with dual springs; single spring for Industrial applications
[3033234]
3803995-F Valve exhaust kit 12 Kit; 3895477 valve, 3275354 locks [3803995; replaces 3801357]
(Up to 250HP, Check CPL)
3895477-F Valve exhaust 12 1.673 head, 6.940 length [3895477; replaces 3818520, 3033235]
(Up to 250HP, Check CPL)
3803996-F Valve exhaust kit 12 Kit; 3417713 valve, 3275354 locks, Stellite [3803996; replaces 3803348]
(250HP and Up, Check CPL)
3417713-F Valve exhaust 12 1.673 head, 6.940 length, stellite, use with dual springs [3947713; replaces 3895478,
3883287]
(250HP and Up, Check CPL)
3033314-F Valve guide 24 2.934 length; cannot use seal, original taper top (can use 3328785 with seal) [3033314]
140-7625SA Valve guide 24
3033232-F Valve spring 24
3033233-F Valve spring 24
Special Alloy, For Ultra Low Sulfur Diesel; 2.934" length, 0.3819" ID, 0.6504" OD (alt
for 3033314)
Outer [3033232]
Inner [3033233]
3033231-F Valve spring retainer 24 [3033231]
TPK DIESEL PARTS CUM611-1 6/2/2014 (86)-20 37380256
CMS L10, 10.0L 6
DieselCylinder
611 CID Stroke
Bore 4.9213
5.354
(Continued)
3033230-F Valve spring seat 24 [3033230]
L10HEAD02
1991 and Up (91L10) valve train:
3800638-F Valve intake kit 12 Kit; 3418020 valve, 3275354 locks [3800638; replaces 3803310, 3065903]
3418020-F Valve intake 12 1.673 head, 7.690 length, use with single spring [3418020; replaces 3068828]
3800639-F Valve exhaust kit 12 Kit; 3418021 valve, 3275354 locks [3800639; replaces 3803730, 3803311]
3418021-F Valve exhaust 12 1.673 head, 7.690 length, use with single spring, stellite [3418021; replaces 3417714,
3895110, 3070159]
01720S Valve exhaust 12 1.673 head dia, 6.945 length, 0.3789 stem dia, 30 deg, 1G, 'F' marked head, stellite,
Natural gas applications [3606856, replaces 3884005]
3328785-F Valve guide 24 2.633 length, 0.3819 ID, 0.6504 OD; uses seal, machined top (guide protrudes 1.069-
1.089 above top surface of head) [3328785; replaces 3073512]
140-8210SA Valve guide 24 2.633 length, 0.3819 ID, 0.6504 OD; Special Alloy, For Ultra Low Sulfur Diesel (alt for
3328785)
140-8210+2 Valve guide 24 2.633 length, 0.3819 ID, 0.6524 OD (0.002 O/S), machined for seal [3074118]
3328786-F Valve guide 24 3.378 length, 0.3819 ID, 0.6506 OD, uses seal, machined top (guide protrudes 1.824-
1.834 above top surface of head) [3328786]
3895860-F Valve spring 24 [3895860; replaces 3070174]
3883512-F Valve spring retainer 24 Upper [3883512]
3070072 Valve spring seat 24 Lower [3070072; replaces 3883513]
3328781-F Valve stem seal 24 [3328781; replaces 3073509, 3073510]
L10HEAD03
Common components for all L10 heads:
3275354-F Valve lock 48 [3275354]
3418040-F Valve insert 12 Std [3418040; replaces 3028070 exhaust, 3820180 intake]
3418044-F Valve insert 24 0.25mm os [3418044; replaces 3028071]
3418045-F Valve insert 24 0.50mm os [3418045; replaces 3028072]
3418046-F Valve insert 24 0.75mm os [3418046; replaces 3028073]
3418047-F Valve insert 24 1.00mm os [3418047; replaces 3028074]
3070486-F Injector sleeve 6 Thin nose [3070486]
3417717-F Injector sleeve 6 Stainless steel [3417717]
3007759-F Injector sleeve oring 6 [3007759]
Use with 3070486 sleeve
3035026-F Injector sleeve oring 6 [3035026]
Use with 3417717 sleeve
4923187-F Bolt cylinder head 29 M14-1.50 x 136mm [4923187 replaces 3045850]
4022907-F Bolt cylinder head 3 M14-1.50 x 70mm [4022907 replaces 3161515, 3045849]
3328379-F Bolt cylinder head 7 M10-1.50 x 75mm [3328379 replaces 3896839, 3028272]
CRANKSHAFT
3803898-Q Crankshaft 1 6 hole snout; Pre 91 L10 early; 2.75" from end of snout to front of main journal
[3803898]
3819989-F Crankshaft 1 5 hole snout; Pre 91 L10 late; 2.75" from end of snout to front of main journal [3819989]
3819624-Q Crankshaft 1 5 hole snout; 91L10, external dampner; 3.98" from end of snout to front main journal
[3819624]
Stroke
Bore 4.9213
5.354
(Continued)
3033230-F Valve spring seat 24 [3033230]
L10HEAD02
1991 and Up (91L10) valve train:
3800638-F Valve intake kit 12 Kit; 3418020 valve, 3275354 locks [3800638; replaces 3803310, 3065903]
3418020-F Valve intake 12 1.673 head, 7.690 length, use with single spring [3418020; replaces 3068828]
3800639-F Valve exhaust kit 12 Kit; 3418021 valve, 3275354 locks [3800639; replaces 3803730, 3803311]
3418021-F Valve exhaust 12 1.673 head, 7.690 length, use with single spring, stellite [3418021; replaces 3417714,
3895110, 3070159]
01720S Valve exhaust 12 1.673 head dia, 6.945 length, 0.3789 stem dia, 30 deg, 1G, 'F' marked head, stellite,
Natural gas applications [3606856, replaces 3884005]
3328785-F Valve guide 24 2.633 length, 0.3819 ID, 0.6504 OD; uses seal, machined top (guide protrudes 1.069-
1.089 above top surface of head) [3328785; replaces 3073512]
140-8210SA Valve guide 24 2.633 length, 0.3819 ID, 0.6504 OD; Special Alloy, For Ultra Low Sulfur Diesel (alt for
3328785)
140-8210+2 Valve guide 24 2.633 length, 0.3819 ID, 0.6524 OD (0.002 O/S), machined for seal [3074118]
3328786-F Valve guide 24 3.378 length, 0.3819 ID, 0.6506 OD, uses seal, machined top (guide protrudes 1.824-
1.834 above top surface of head) [3328786]
3895860-F Valve spring 24 [3895860; replaces 3070174]
3883512-F Valve spring retainer 24 Upper [3883512]
3070072 Valve spring seat 24 Lower [3070072; replaces 3883513]
3328781-F Valve stem seal 24 [3328781; replaces 3073509, 3073510]
L10HEAD03
Common components for all L10 heads:
3275354-F Valve lock 48 [3275354]
3418040-F Valve insert 12 Std [3418040; replaces 3028070 exhaust, 3820180 intake]
3418044-F Valve insert 24 0.25mm os [3418044; replaces 3028071]
3418045-F Valve insert 24 0.50mm os [3418045; replaces 3028072]
3418046-F Valve insert 24 0.75mm os [3418046; replaces 3028073]
3418047-F Valve insert 24 1.00mm os [3418047; replaces 3028074]
3070486-F Injector sleeve 6 Thin nose [3070486]
3417717-F Injector sleeve 6 Stainless steel [3417717]
3007759-F Injector sleeve oring 6 [3007759]
Use with 3070486 sleeve
3035026-F Injector sleeve oring 6 [3035026]
Use with 3417717 sleeve
4923187-F Bolt cylinder head 29 M14-1.50 x 136mm [4923187 replaces 3045850]
4022907-F Bolt cylinder head 3 M14-1.50 x 70mm [4022907 replaces 3161515, 3045849]
3328379-F Bolt cylinder head 7 M10-1.50 x 75mm [3328379 replaces 3896839, 3028272]
CRANKSHAFT
3803898-Q Crankshaft 1 6 hole snout; Pre 91 L10 early; 2.75" from end of snout to front of main journal
[3803898]
3819989-F Crankshaft 1 5 hole snout; Pre 91 L10 late; 2.75" from end of snout to front of main journal [3819989]
3819624-Q Crankshaft 1 5 hole snout; 91L10, external dampner; 3.98" from end of snout to front main journal
[3819624]
CONNECTING ROD
3027104RX Connecting rod Remanufactured, drilled bushing [Assy 3027107, 3820302; Cast 3027104, 3820301]
TPK DIESEL PARTS CUM611-1 6/2/2014 (86)-20 37380256
3:FACTORY WORKSHOP AND INTRODUCTION
Packaging & Shipping
Shipping
(1): By sea
(2): By air
(3): By express (DHL, FEDEX, TNT, EMS... )
Packing:
1, TPK Packing
2, according to your requirments.
Payment
(1): TT (30 % in Advanced, 70 % before Shipment)
(2): Western Union
(3): Cash
Related Parts
Piston Kit, cylinder liner, gasket set, other engine parts
Our Services1, 24 hours Online , Skype, Msn, Yahoo, QQ...
2, 10 hours reply for your email inquiry
Company Information
Guangzhou TPK Diesel Parts Co.,Ltd, Build in 1996, is a professional manufacturer on Diesel Piston, Piston ring, Cylinder Liner, Head Gasket & Overhaul Gasket Kit. TPK has been cooperating with OEM factory in China for several years, running business mainly in imported diesel engines, and TOYOTA). All products in TPK have passed the national quality supervision on combustion engines and obtained certificates from ISO9002.
Till now, TPK has four storehouses in Guangzhou, occupying an area of over 5,000 square meters. The number of employees in TPK reaches up to 100, among which include 20 sales personnel in China, 15 sales personnel outside China, 10 QC personnel. TPK products command a ready market in Europe, Middle East, South America, North America, and Southeast Asia and are well received.
With the principles of international brand, good quality, shared resources, and serving the world, TPK endeavors to provide perfect accessories replacement solutions for customers. TPK is ready to cooperte with you to reach a win-win future.
Chat Now
Contact Supplier
