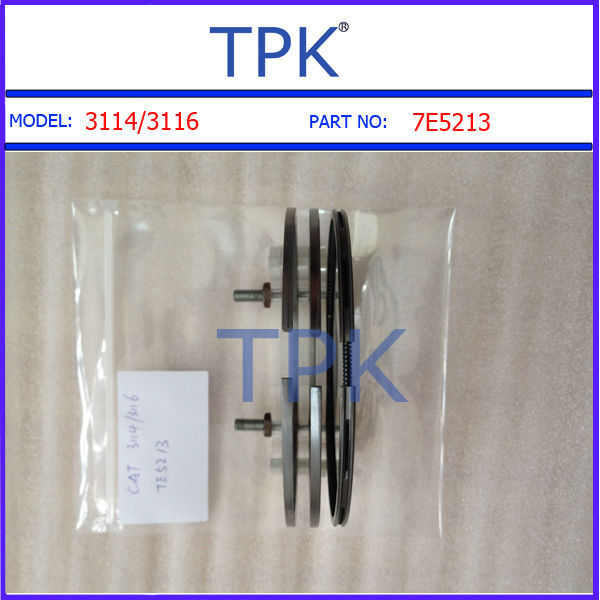

3114, 3116 engine parts,piston, ring set, liner, bearing, valve, seat, guide, 7E5213

Product Attribute:

Supply Ability:6000 Set/Sets per Month

Delivery Details:1-3 DAYS FOR EX-STOCKS,30-45 DAYS FOR PRODUCTION

Production Description:

 Product Description

Specification For TPK Piston Ring

Other Piston ring

Guangzhou TPK Diesel Parts Co.,Ltd

Our company's main engine parts for Ex-stocks as followings:

1: Cylinder block, cylinder head, crankshaft, camshaft, connecting rod.
2: Liner Kits. Piston kits, piston ring set, cylinder liner (sleeve), Pin bush.
3: Full gasket kit, head gasket,Oil Seal.
4: Engine bearing, Main bearing, con rod bearing,Camshaft Bearing,thrust washer
5: Engine valve, valve seat, valve guide.
6: Oil Pump, water pump,
7: Starter, alternator
8: Turbocharger

3024,3044,3046,3054,3056, 3064, 3066, 3176, 3114, 3116, 3204, 3208, 3126,
3304,3304PC,3304DI, 3306,3306PC,3306DI, 3406, 3408, 3412, 3508, 3512, 3516,
C2.2, C4.2,C4.4, C6.4, C6.6, C7, C9, C10,C11, C12, C15,C18, C18,C27
D315,D318,D330,D333,D343,D346,D348,D349,D353,D9H,D8,D8H,D8K,G3300,G3406,G3412,G353

PARTS SHOW

D353 / 24.2L 6
Diesel
Cylinder
1473 CID Stroke
Bore 6.250
8.000
CYLINDER KIT
6 PLG7N4515 Cylinder kit 6.2500 bore, rectangular ring [7N4515 piston, 1W5105 rings, 7N9810 pin, 7M4926 retainers, 8N9174
liner]
6 PLG7N5036 Cylinder kit 6.2500 bore, keystone ring [7N5036 piston, 1N3601 rings, 7N9810 pin, 7M4926 retainers, 8N9174 liner]
6 8M3167 Piston body 6.2500 bore, PC [3S4066]
6 7N4515 Piston body 6.2500 bore, PC [3S5502] rectangular compression ring
6 7N5036 Piston body 6.2500 bore, PC [7N5037] keystone compression ring
6 5H1085 Piston pin 2.4 dia; use with 8M3167 piston
6 7N9810 Piston pin 2.5 dia; use with 7N4515, 7N5036 piston [4L3843]
12 7M4926 Retainer piston pin use with 2.400 dia pin [repl 6B2291]
6 1W5105 Ring set 6.2500 bore, use with 8M3167, 7N4515 piston [9S8973]; rectangular comp ring
6 1N3601 Ring set 6.2500 bore, use with 7N5036 piston; keystone comp ring
6 8N9174 Cylinder liner 6.2500 bore
6 5P8970 Cylinder liner oring kit For one liner, contains: (3) 6L7815, (1) 8N4708
18 6L7815 Cylinder liner oring Lower liner seal; contained in 5P8970 seal kit
6 8N4708 Cylinder liner oring Upper filler band; contained in 5P8970 seal kit
BEARINGS
D353BRG1 NOTE: Thick wall bearings, 0.2474 wall, 4.6250 journal, 5.1240/5.1250 housing bore
4 9M3894 Bearing main pair Std; 0.2474 thickness, 4.6250 journal, 5.1250 housing bore, 2.008 length
1 9M3893 Bearing main pair Std; 0.2474 thickness, 4.6250 journal, 5.1250 housing bore, 2.382 length
1 9M3895 Bearing main pair Std; 0.2474 thickness, 4.6250 journal, 5.1250 housing bore, 3.224 length
1 9M3896 Bearing thrust pair Std; 0.2474 thickness, 4.6250 journal, 5.1250 housing bore, 2.882 and 3.670 length
4 9M4873 Bearing main pair .025
1 9M4872 Bearing main pair .025
1 9M4874 Bearing main pair .025
1 9M4875 Bearing thrust pair .025
4 9M4878 Bearing main pair .050
1 9M4877 Bearing main pair .050
1 9M4879 Bearing main pair .050
1 9M4880 Bearing thrust pair .050
D353BRG2 NOTE: Thin wall bearings, 0.1805 wall, 4.6250 journal, 4.9883/4.9893 housing bore
4 1N4317 Bearing main pair Std; 0.1805 thick, 4.6250 journal, 4.9890 housing bore, 1.874 length
1 1N4316 Bearing main pair Std; 0.1805 thick, 4.6250 journal, 4.9890 housing bore, 2.382 length
1 1N4318 Bearing main pair Std; 0.1805 thick, 4.6250 journal, 4.9890 housing bore, 2.972 length
1 1N4331 Bearing thrust pair Std; 0.1805 thick, 4.6250 journal, 4.9890 housing bore, 2.874 and 3.671 length
4 1N4320 Bearing main pair .025
1 1N4319 Bearing main pair .025
1 1N4321 Bearing main pair .025
1 1N4332 Bearing thrust pair .025
4 1N4323 Bearing main pair .050
1 1N4322 Bearing main pair .050
1 1N4324 Bearing main pair .050
1 1N4333 Bearing thrust pair .050
6 1N4336 Bearing rod pair Std; 4.1250 journal, 4.4400 housing bore, 1.980 length [4H9884, 9M3892]
6 1N4336 10 Bearing rod pair .010
6 1N4337 Bearing rod pair .025 [5H5993, 9M4871]

6 1N4338 Bearing rod pair .050 [5H5992, 9M4876]
6 2H2330 Bearing cam
1 2H7878 Bearing cam
6 4H9842 Bushing con rod
6 8N2275 Bushing con rod 2.450 ID, 2.678 OD, 2.250 length
GASKET & SEALS
GASKET NOTE For gasket sets: Call with Serial and Arrangement Numbers
1 2W6769 Seal crankshaft front Piston ring type
1 2W2191 Seal crankshaft rear Piston ring type
1 2L3451 Gasket oil pan
CAMSHAFT
CAMSHAFT CAMSHAFT Remanufactured available, call with casting number
12 2H3069 Lifter Solid; Call for price and availability of remanufactured
VALVE TRAIN
CYLHEAD NOTE For complete and bare cylinder heads - Refer to Cylinder Head Catalog or Call with casting
D353HEAD1 NOTE: Tapered groove valve stem with 0.4955 dia and 3 locks each
6 7M7817 Valve intake 2.505 head, 0.4955 stem, tapered groove [4H9805, 6H3186, 1M7452]
6 8N3723 Valve exhaust 2.340 head, 0.4955 stem, tapered groove [4H9804, 6H3187, 8H7097, 4N6883, 3N1141]
12 7S6323 Valve spring Single spring
Single spring, use with 7N7639 rotocap
12 4F5408 Valve spring Outer, 1.641 OD, 2.421 free
Dual spring
12 4F5409 Valve spring Inner, 1.145 OD, 2.359 free
Dual spring
6 4N3664 Valve guide Intake; non flanged, use with 3N1414 spacer; for 0.4955 stem dia, 5.045 length
6 6N8847 Valve guide Exhaust; non flanged, use with 3N1414 spacer; for 0.4955 stem dia, 5.438 length
12 3N1414 Spacer Use with non-flanged guide
36 3B1143 Valve lock No bead, for tapered valve stem, for 0.4995 stem
12 7N7639 Rotator [repl 8M7637, 4S7468]
Use with single valve spring
12 7F7666 Rotator
Use with dual valve springs
12 3H5867 Retainer
12 used; 6 used on intake with 3B1142 used on exhaust
6 3B1142 Retainer
6 used on exhaust with 3H5867 retainer on intake
6 5H1464 Valve seat Intake
use with 6H8514 cylinder head
6 5S1757 Valve seat Intake
6 5H1463 Valve seat Exhaust
use with 6H8514 cylinder head
6 8M4014 Valve seat Exhaust
D353HEAD2 NOTE: Two groove valve stem with 0.3717 dia and 2 locks each
6 1W8606 Valve intake 2.505 head, 0.3717 stem, 2 groove
6 2W3211 Valve exhaust 2.350 head, 0.3717 stem, 2 groove
6 1W1822 Valve exhaust 2.350 head, 0.3717 stem, 2 groove
12 9M5349 Valve spring Inner, 1.125 OD, 2.201 free
12 9M5350 Valve spring Outer, 1.654 OD, 2.574 free
6 2N9298 Valve guide Intake; for 0.3717 stem, 5.065 length
6 2N9299 Valve guide Exhaust; for 0.3717 stem, 5.450 length

12 3N1414 Spacer Use with non-flanged guide
24 2A4429 Valve lock 0.372 stem dia, 2G, 7 degree
12 7N7639 Rotator [repl 8M7637, 4S7468]
6 1W3062 Retainer Intake; includes 8N7780 shield
6 2N9297 Retainer Exhaust
6 5S1757 Valve seat Intake
6 8M4014 Valve seat Exhaust
FUEL / INJECTOR
6 5H7936 Nozzle service group Contains: capsule nozzle, orings, seal ring
6 7M7431 Nozzle service group Contains: capsule nozzle, orings, seal ring
6 8N1831 Nozzle Capsule nozzle (repl 7S1059)
COOLING SYSTEM
2 2S4044 Thermostat 170 degree
2 6N4540 Thermostat 180 degree
2 4W4841 Thermostat 190 degree
2 4L3848 Seal thermostat Use with 6N4540 and 4W4841 thermostats
TURBO / AIR
TURBO TURBOCHARGER New or remanufactured available, call for pricing
BLOCK
8N6938 Insert block 0.0625, stainless steel
4 1W6265 Sleeve block Z stepped
2 1W6266 Sleeve block Z stepped
5P0936 Sleeve block L type, Cast Iron

3:FACTORY WORKSHOP AND INTRODUCTION

Packing:

1: TPK packing

2: acording with your requirments

Shipping

(1): By sea

(2): By air

(3): By express (DHL, FEDEX, TNT, EMS... )

1: 24 hours Onliner service

2: repying your inquiry list in 8 hours by email

Payment

(1): TT (30 %  in Advanced, 70 % before Shipment)
(2): Western Union
(3): Cash

Related Parts

         Piston Kit, cylinder liner, gasket set, other engine parts

Guangzhou TPK Diesel Parts Co.,Ltd, Build in 1996, is a professional  manufacturer on Diesel Piston, Piston ring, Cylinder Liner, Head Gasket & Overhaul Gasket Kit. TPK has been cooperating with OEM factory in China for several years, running business mainly in imported diesel engines. All products in TPK have passed the national quality supervision on combustion engines and obtained certificates from ISO9002.

Till now, TPK has four storehouses in Guangzhou, occupying an area of over 5,000 square meters. The number of employees in TPK reaches up to 100, among which include 20 sales personnel in China, 15 sales personnel outside China, 10 QC personnel. TPK products command a ready market in Europe, Middle East, South America, North America, and Southeast Asia and are well received.

With the principles of international brand, good quality, shared resources, and serving the world, TPK endeavors to provide perfect accessories replacement solutions for customers. TPK is ready to cooperte with you to reach a win-win future.
