Product Attribute:
Production Description:
N14 Full Gasket Kit,Complete Engine Gasket Set 4089371 4025069
Product Description
Specification For N14 GASKET KIT
|
Item name: |
N14 Full Gasket Kit,Complete Engine Gasket Set 4089371 4025069 |
|
Engine: |
N14 |
|
Oem No: |
4089371 4025069 |
|
Material: |
Graphite/Metal/Interface/N-8092/N-8094 |
|
Moq: |
20 Sets For Ex-stocks, 100 Sets for Production |
|
Delivery: |
1-3 Days for Ex-stocks,30 days for production |
|
Packing: |
TPK or according to your requirements |
|
Other Parts: |
Piston Ring, Piston Ring Set,Ring Piston |
|
|
Cylinder Liner, Cylinder Sleeve |
|
|
Liner Kit, Piston Kit. Piston Sets |
|
|
|
1: Cylinder block, cylinder head, crankshaft, camshaft, connecting rod.
2: Liner Kits. Piston kits, piston ring set, cylinder liner (sleeve), Pin bush.
3: Full / Overhaul gasket kit, head gasket,Oil Seal.
4: Engine bearing, Main bearing, con rod bearing,Camshaft Bearing,thrust washer
5: Engine valve, valve seat, valve guide.
6: Oil Pump, water pump,
7: Starter, alternator
9: Oil cooler, radiator
10: Turbocharger
(1): 4BT,4BT3.9,4BTA,6BT,6BT5.9,6BTA,6BTA5.9,
(2): 6CT,6CTA,6CTAA,6CT8.3,6CTA8.3,6CTAA8.3
(3): 6L,L375,NH220,N14,NTA14,L10,LT10,
(4): NT855,NTA855,NTC,K19,KTA19,KTAA19,K38,KTA38,KTAA38
(5): ISBE, ISB3.9,ISB5.9, ISB6.7,ISCE,ISDE,ISDE107,
(6): M11,ISM,ISM11,QSM, ISF2.8,ISF3.8
(7): ISL,ISLE,ISL340,ISL375,L375,T375,ISLE375,
(8): QSB,QSB6.7,QSC,QSL,ISX,QSX,ISX15,QSX15
CMS N14 GASKET KIT
CMS N14 GASKET, CYLINDER HEAD 4058790
CMS N14 GASKET, UPPER SET 4089368
CMS N14 GASKET, LOWER SET 3801468
CMS N14 GASKET, ROCKER COVER 3066311
CMS N14 GASKET, ROCKER LEVER HOUSING 4058981
CMS N14 GASKET, CAMSHAFT TIMING 3074400
CMS N14 PISTON RING 3803471
CMS N14 VALVE STEM SEAL 3064281
CMS N14 MAIN BEARING 3801260
CMS N14 CON ROD BEARING 3055145

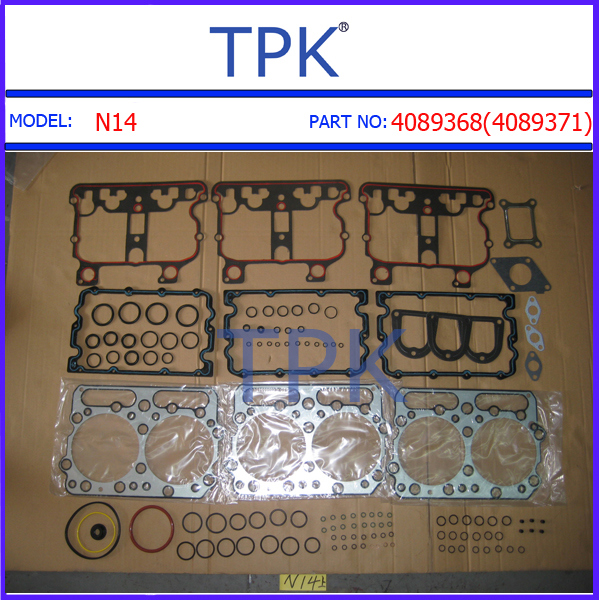

PARTS SHOW FOR CMS GASKET KIT
CMS N14, 14.0L
Diesel
855 CID
(Continued)
6 Cylinder
Stroke
Bore 5.500
6.000
COOLING SYSTEM
3803605-G Water pump 1 New assembly [3803605]
CPL #'s 1054, 1059, 1061, 1062, 1718, 1719, 1722, 1723
3066330-F Water pump idler 1 New
7073X-BP Water pump idler 1 Reman (3066330)
3076522-F Gasket water pump mtg 1
3029099-F Seal water pump 1 Impeller side, seal and seat (repl AR12732)
3038998-F Seal water pump 2 Idler side
201737-EP Thermostat Thermostat and seal, non-vented, 180F degree [3076489 kit, 201737 thermostat]
3411335-B Thermostat [3411335]
4973373-EP Thermostat Thermostat and seal, non-vented, 180F degree [4973373 replaces 3335550, 4952204]
Celect Plus
186780-F Seal thermostat 1 [186780]
3066285-F Gasket thermostat hsg 1 Housing cover, single thermostat
3064313-F Gasket thermostat hsg 1 Housing to block, single thermostat
3865236-EP Gasket thermostat hsg 1 Housing cover, dual thermostat [3865236]
3865195-F Gasket thermostat hsg 1 Housing to block, dual thermostat [3865195]
43463A-F Oring water tube 2 Water bypass tube
3803612-F Water pump kit 1 Minor [S16255, 43463A, 3029099, 3024960, 3076522]
3803614-F Water pump kit 1 Major [S16255, 43463A, 3029099, 3024960, 3076522, 3064386, 3064392]
3064392-F Water pump shaft 1 Assembly [3064389, 196844, 3064390, 3064406, 3074482]
3064389-F Water pump shaft 1
196844-F Spacer 1 Water pump shaft
3064390-B Slinger 1 Water pump shaft
3064406-F Bearing 2 Water pump shaft
3074482-F Seal 1 Water pump shaft
3050667-F Oring water tube 5 Water transfer tube
TURBO / AIR
1
TURBO
3069177-F
TURBOCHARGER New or remanufactured available, call for pricing
Gasket turbo mtg 4 bolt
1 201049-F Gasket turbo connection Inlet
1 3037537-F Oring turbo inlet [3037537]
1
4
201048-F
3056155-EP
Gasket turbo connection Drain
Stud turbo mounting 3/8-16 x 2 length x 3/8-24 [3056155]
4 3010914-EP Nut turbo mounting 3/8-24 [3010914; replaced by 3056158]
1 181005 Manifold exhaust Manifold kit with hardware, gaskets, hose, 1994 and below [3065024 front, 3065022
center, 3062568 rear]
1 AKN14EMPC Manifold exhaust kit Celect plus: 3078322 center, 3078323 front, 3078324 rear (no mounting kit)
12
3
3067930-EP
3008591-F
Bolt manifold exhaust
Gasket manifold intake
6 3020943-F Gasket manifold exhaus 4 valve head
3 3865235-B Gasket manifold exhaus For diagonal bolt pattern, graphite
1 3801523-F Turbo repair kit
1 3801522-F Turbo seal kit
BLOCK
6 4058947-EP Piston cooling nozzle [4058947]
6 4058941-F Oring nozzle piston cool
TPK DIESEL PARTS CUM855-2 6/2/2014 (86)-20 37380256
CMS N14, 14.0L 6
DieselCylinder
855 CID Stroke
Bore 5.500
6.000
(Continued)
3067954 Screw nozzle piston coo 6
204165-F Bolt locking 6 flywheel and damper
3055069-F Plug oil pan 1 1" NPT
3007635-F Plug expansion 6 1 inch diameter [3007635]
MISC
3076496-EP Timing cover 1 For large accessory drive shaft [3076496, 3411458]
3005133-F Accessory drive 1 Assembly: cast iron housing, helical gear, small shaft 1.5
3067988 Accessory drive 1 [OEM] Assembly: aluminum housing, helical gear, small shaft 1.5
3078307-EP Accessory drive 1 Assembly, cast iron housing, straight gear, large shaft 2.0 [3078307] Shaft dia stepped:
1.375, 1.905, 1.997; 4.75 length from gear
131395 Set front cover 1 For small shaft 1.5 [3004316, 3020183, 3021704, 3069101, 3069102, 3069103,
3067613, 215705, 3008947]
4058949-KIT-EP Set front cover 1 For large shaft 2.0, without wear ring, with 136066 seal [3800616, 3020183, 4058949,
3069101, 3069102, 3069103, 3067613, 215705, 3008947]
4058949-KIT-WR-Set front cover 1 For large shaft 2.0, with wear ring [3800617, 3020183, 4058949, 3069101, 3069102,
3069103, 3067613, 215705, 3008947]
3069101-F Gasket accessory drive 1 Accessory drive mounting, paper
3076225-EP Gasket accessory drive 1 Accessory drive mounting, edge molded [3076225]
132770-F Bushing accessory driv 1 For small shaft 1.5, in front gear cover
3411389-EP Bushing accessory driv 1 For large shaft 2.0, in front gear cover [3411389, 3076091]
3004316-F Seal accessory drive 1 For small shaft 1.5, in front gear cover
3020185-F Seal accessory drive 1 Seal with dust seal; in front gear cover
3800616-EP Seal accessory drive 1 For large shaft 2.0, in front gear cover; Seal kit with dust shield; use without wear ring
[3800616 / 3803720 kit, 3078292 seal]
used when the shaft does not have a worn groove in it
3800617-EP Seal accessory drive 1 For large shaft 2.0, in front gear cover [3800617]
used when the shaft has a groove worn in it from the seal lip and requires a wear sleeve to restore it
116391-F Bushing accessory driv 1 Drive housing
2190397 Sleeve pulley wear 1 Small shaft 1.5-inch [190397]
3076346 Sleeve pulley wear 1 For accessory drive pulley [OEM]
3008947-F Seal shaft keyway 1 L-shaped
3000174-F Hub jaw coupling 1 Splined, air compressor and fuel pump drive [3000174]
3014103-F Washer 1 Between hub jaw coupling and rear thrust washer
3026557-F Thrust washer 1 Rear, 1.997 OD
3026556-F Thrust washer 1 Front, 2.438 OD
142689-F Gear accessory drive 1 Drive gear, helical teeth, small shaft 1.5
3078310-B Gear accessory drive 1 Drive gear, straight teeth, large shaft 2.0 [3078310]
3006483-F Accessory drive shaft 1 Kit, small shaft 1.5 [3000171 shaft, 170664, 3000173, 3000174, 3008947, 3034438]
3000171-F Accessory drive shaft 1 Shaft only, small shaft 1.5
3076500-F Accessory drive shaft 1 Shaft only, large shaft 2.0
199349-B Sleeve spline coupling 1 Connects drive and air compressor hubs [199349]
3000173-F Screw 1 3/8-16 x 1, drilled
170664-F Washer1 plain (for 3000173 screw)
Stroke
Bore 5.500
6.000
(Continued)
3067954 Screw nozzle piston coo 6
204165-F Bolt locking 6 flywheel and damper
3055069-F Plug oil pan 1 1" NPT
3007635-F Plug expansion 6 1 inch diameter [3007635]
MISC
3076496-EP Timing cover 1 For large accessory drive shaft [3076496, 3411458]
3005133-F Accessory drive 1 Assembly: cast iron housing, helical gear, small shaft 1.5
3067988 Accessory drive 1 [OEM] Assembly: aluminum housing, helical gear, small shaft 1.5
3078307-EP Accessory drive 1 Assembly, cast iron housing, straight gear, large shaft 2.0 [3078307] Shaft dia stepped:
1.375, 1.905, 1.997; 4.75 length from gear
131395 Set front cover 1 For small shaft 1.5 [3004316, 3020183, 3021704, 3069101, 3069102, 3069103,
3067613, 215705, 3008947]
4058949-KIT-EP Set front cover 1 For large shaft 2.0, without wear ring, with 136066 seal [3800616, 3020183, 4058949,
3069101, 3069102, 3069103, 3067613, 215705, 3008947]
4058949-KIT-WR-Set front cover 1 For large shaft 2.0, with wear ring [3800617, 3020183, 4058949, 3069101, 3069102,
3069103, 3067613, 215705, 3008947]
3069101-F Gasket accessory drive 1 Accessory drive mounting, paper
3076225-EP Gasket accessory drive 1 Accessory drive mounting, edge molded [3076225]
132770-F Bushing accessory driv 1 For small shaft 1.5, in front gear cover
3411389-EP Bushing accessory driv 1 For large shaft 2.0, in front gear cover [3411389, 3076091]
3004316-F Seal accessory drive 1 For small shaft 1.5, in front gear cover
3020185-F Seal accessory drive 1 Seal with dust seal; in front gear cover
3800616-EP Seal accessory drive 1 For large shaft 2.0, in front gear cover; Seal kit with dust shield; use without wear ring
[3800616 / 3803720 kit, 3078292 seal]
used when the shaft does not have a worn groove in it
3800617-EP Seal accessory drive 1 For large shaft 2.0, in front gear cover [3800617]
used when the shaft has a groove worn in it from the seal lip and requires a wear sleeve to restore it
116391-F Bushing accessory driv 1 Drive housing
2190397 Sleeve pulley wear 1 Small shaft 1.5-inch [190397]
3076346 Sleeve pulley wear 1 For accessory drive pulley [OEM]
3008947-F Seal shaft keyway 1 L-shaped
3000174-F Hub jaw coupling 1 Splined, air compressor and fuel pump drive [3000174]
3014103-F Washer 1 Between hub jaw coupling and rear thrust washer
3026557-F Thrust washer 1 Rear, 1.997 OD
3026556-F Thrust washer 1 Front, 2.438 OD
142689-F Gear accessory drive 1 Drive gear, helical teeth, small shaft 1.5
3078310-B Gear accessory drive 1 Drive gear, straight teeth, large shaft 2.0 [3078310]
3006483-F Accessory drive shaft 1 Kit, small shaft 1.5 [3000171 shaft, 170664, 3000173, 3000174, 3008947, 3034438]
3000171-F Accessory drive shaft 1 Shaft only, small shaft 1.5
3076500-F Accessory drive shaft 1 Shaft only, large shaft 2.0
199349-B Sleeve spline coupling 1 Connects drive and air compressor hubs [199349]
3000173-F Screw 1 3/8-16 x 1, drilled
170664-F Washer1 plain (for 3000173 screw)
TPK DIESEL PARTS CUM855-2 6/2/2014 (86)-20 37380256
