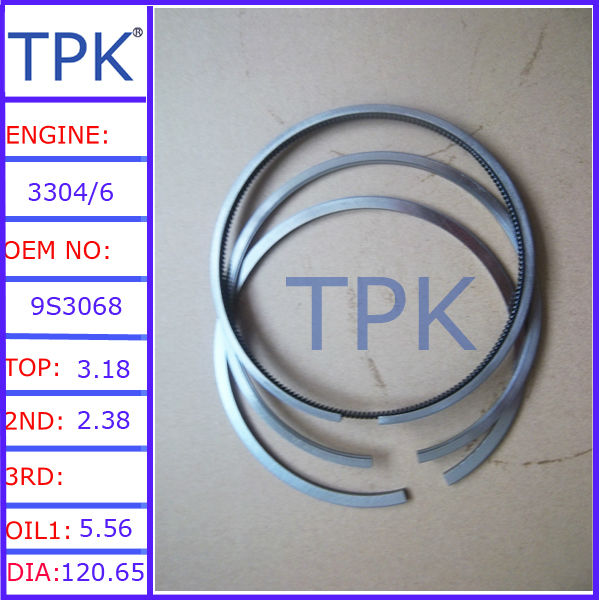

9S3068, 3304,3304PC,3304DI piston ring set

Product Attribute:

Supply Ability:6000 Set/Sets per Month

Delivery Details:1-3 DAYS FOR EX-STOCKS,30-45 DAYS FOR PRODUCTION

Production Description:

 Product Description

1: Specification For TPK Piston Ring

Other Piston ring for

2:PARTS SHOW

3:FACTORY WORKSHOP AND INTRODUCTION

 3304 / 7.0L 4
Diesel
Cylinder
425 CID Stroke
Bore 4.750
6.000

CYLINDER KIT
PLG8N3180 Cylinder kit 4 4.750 bore, 1.500 pin, PC, straight rod, 17.5:1 CR, [8N3180 piston, 9S3068 rings, 7N9804 pin, 9H4015
retainers, 1105800 liner] [Can use PLG8N3182]
PLG8N3182 Cylinder kit 4 4.750 bore, 1.500 pin, PC, straight rod, 17.5:1 CR, [8N3182 piston, 9S3068 rings, 7N9804 pin, 9H4015
retainers, 1105800 liner]
PLG8N3184 Cylinder kit 4 4.750 bore, 1.500 pin, PC,straight rod, 21:1 CR [8N3184 piston, 9S3068 rings, 7N9804 pin, 9H4015
retainers, 1105800 liner]
PLG9N5250 Cylinder kit 4 4.750 bore, 1.700 pin, PC,straight rod, 17.5:1 CR, with plug [9N5250 piston, 9S3068 rings, 7N9805 pin,
1S9543 retainers, 1105800 liner]
PLG9N5403 Cylinder kit 4 4.750 bore, 1.700 pin, PC, straight rod, 17.5:1 CR,with plug [9N5403 piston, 2W1709 rings, 7N9805
pin, 1S9543 retainers, 1105800 liner]
PLG1290358 Cylinder kit 4 4.750 bore, 1.700 pin, DI, taper rod, 15:1 CR [1290358 piston, 2W6091 rings, 7N9805 pin, 1S9543
retainers, 1105800 liner]
PLG1654262 Cylinder kit 4 4.750 bore, 1.700 pin, DI, taper rod, 15:1 CR [1654262 piston, 2114321 rings, 7N9805 pin, 1S9543
retainers, 1105800 liner] (replaces PLG1290338, PLG8N3102)
Caution: use casting# from crown, not skirt or bottom
PLG1684531 Cylinder kit 4 4.750 bore, 1.700 pin, DI, taper rod, 16:1 CR [1684531 piston, 2114321 rings, 7N9805 pin,
1S9543retainers, 1105800 liner] (replaces PLG1568262, PLG9Y8271)
PLG1646560 Cylinder kit 4 4.750 bore, 1.700 Pin, DI,taper rod, 16:1 CR [1646560 piston, 3300RS3 rings, 7N9805 pin, 1S9543
retainers, 1105800 liner]
PLG1548087 Cylinder kit 4 4.750 bore, 1.700 pin, DI, taper rod, 17:1 CR [1548087 piston, 2114321 rings, 7N9805 pin, 1S9543
retainers, 1105800 liner] (replaces PLG6I2650)
PLG1073565 Cylinder kit 4 4.750 bore, 1.700 pin, DI, taper rod, 17:1 CR [1073565 piston, 3300RS2 rings, 7N9805 pin, 1S9543
retainers,1105800 liner]
Caution: use casting# from crown, not skirt or bottom
8N3180 Piston 4 4.7500 bore, PC, single-ni, 17.5:1 CR (can use 8N3182)
8N3182 Piston 4 4.7500 bore, PC, dual-ni, 17.5:1 CR
8N3184 Piston 4 4.7500 bore, PC, dual-ni, high altitude: 21:1 CR
9N5250 Piston 4 4.7500 bore, PC, dual-ni, with heat plug, 17.5:1 CR (rect comp rings)
9N5403 Piston 4 4.7500 bore, PC, dual-ni, with heat plug, 17.5:1 CR (key comp rings)
1290358 Piston 4 4.7500 bore, DI, dual-ni, 15:1 CR (rect comp rings) (replaces 1W6757)
1654262 Piston 4 4.7500 bore, DI, dual-ni, 15:1 CR (key comp rings) (replaces 1290338, 8N3102)
1684531 Piston 4 4.7500 bore, DI, dual-ni, 16:1 CR (key comp rings) (replaces 1568262, 9Y8217)
1290359 Piston 4 4.7500 bore, DI, 16:1 CR (rect comp rings) (replaces 4P8132) [will be 1646560]
1548087 Piston 4 4.7500 bore, DI, 17:1 CR (key comp rings, 4mm oil ring) (replaces 6I2650)
1073565 Piston 4 4.7500 bore, DI, 17:1 CR, 1 valve rlf, (key comp, reverse twist intermediate)
1290360 Piston 4 4.7500 bore, DI, 15:1 CR (3300RS3 ring set) (replaces 6I3650)
1568263 Piston 4 4.7500 bore, DI, 16:1 CR (3300RS4 ring set) (replaces 1050185)
9S3068 Ring set 4 4.7500 bore; 2 rectangular compression, .218 oil (9S3029, 5S6750, 9S7788)
2W6091 Ring set 4 4.7500 bore; 2 rectangular compression, .125 oil (9S3029, 5S6750, 7E6047)
2W1709 Ring set 4 4.7500 bore; 2 keystone compression, .125 oil (2W1707, 2W1708. 7E6047)
2114321 Ring set 4 4.7500 bore, 1 keystone comp, 1 keystone inside bevel comp, 4mm oil (replaces 3300RS1)
3300RS2 Ring set 4 4.7500 bore; 2 keystone comp, reverse twist intermediate, 4mm oil (1006695, 1006694, 6I0497)
3300RS3 Ring set 4 4.7500 bore; 1 keystone comp, 1 rectangular comp, .125 oil (2W1707, 5S6750, 7E6047)
3300RS4 Ring set 4 4.7500 bore; 1 keystone comp, 1 rectangular comp, 4mm oil (2W1707, 5S6750, 6I0497)
7N9804 Piston pin 4 1.500 dia, 3.735 length
7N9805 Piston pin 4 1.700 dia, 3.730 length
9H4015 Retainer piston pin 8 use with 1.500 dia pin
1S9543 Retainer piston pin 8 use with 1.700 dia pin
1105800 Cylinder liner 4 4.7500 bore, uses 5P8768 liner oring kit (Liner only) [repl 2P8889

4 (3) 5S6670, (1) 2W6134
5S6670 Cylinder liner oring 12 Lower seal
2W6134 Cylinder liner oring 4 Upper filler band
BEARINGS
4W5738 Bearing main pair 5 Std, 3.5000 journal, 3.8160 housing bore, 1.130 length (replaces 8N8224)
8N8225 Bearing main pair 5 .010
8N8226 Bearing main pair 5 .020
8N8227 Bearing main pair 5 .030
2531APA 40 Bearing main pair 5 .040
2531APA 50 Bearing main pair 5 .050
6N8940 Thrust plate 2 .185 thick (replaces 6N4129)
9S3037 Thrust plate 2 .232 thick (replaces 6N4129)
1003652 Thrust plate 2 .214 thick (replaces 7N9342)
4W5739 Bearing rod pair 4 Std, 3.0000 journal, 3.2500 housing bore, 1.504 length (replaces 8N8220)
8N8221 Bearing rod pair 4 .010
8N8222 Bearing rod pair 4 .020
8N8223 Bearing rod pair 4 .030
7M4046 Bearing cam 2 1.008 OAL
9M5477 Bearing cam 1 1.135 OAL
8N0702 Bushing con rod 4 1.500 pin, 1.388 OAL, straight
8N1985 Bushing con rod 4 1.500 pin, tapered
8N0703 Bushing con rod 4 1.700 pin, 1.430 OAL, straight
8N1849 Bushing con rod 4 1.700 pin, tapered
GASKET & SEALS
GASKET NOTE For gasket sets: Call with Serial and Arrangement Numbers
9Y9895 Seal crankshaft front 1 2.625 shaft, 3.700 OD
2P3859 Sleeve crankshaft 1 Front, 2.502 shaft, 2.627 effective shaft
9S3111 Seal crankshaft rear 1 6.328 shaft, 7.336 OD, lip type seal
2P3858 Sleeve crankshaft 1 Rear, use with 9S3111 seal, 6.206 shaft, 6.328 effective shaft
4W0452 Seal crankshaft rear 1 6.198 shaft, 7.336 OD, directional type, late
7C4297 Seal crankshaft rear 1 6.202 shaft, 7.336 OD, directional type seal, late, double lip (4W0452 single lip)
8S1963 Gasket oil pan 1
CAMSHAFT
7C3862 Camshaft 1 [9Y1723 cam kit]
7S3161 Lifter 8 Solid type
VALVE TRAIN
CYLHEAD NOTE For complete and bare cylinder heads - Refer to Cylinder Head Catalog or Call with casting
1007860 Valve intake 4 2.020 head dia, 5.350 length, .3717 stem, 30 deg, 2G, stellite (replaces: 6N9915, 2W2620, 7N0572)
DI: Turbo & Natural
5S6452 Valve intake 4 2.020 head dia, 5.510 length, .3717 stem, 30 deg, 2G
IDI: Natural
2W2621 Valve intake 4 2.020 head dia, 5.510 length, .3717 stem, 30 deg, 2G, Stellite (replaces 4W1670, 7S8809, 9N6117)
IDI: Turbo, Spark ignited short
7W7490 Valve intake 4 2.020 head dia, 6.437 length, .3717 stem, 30 deg, 2G
Spark ignited long
6N9915 Valve intake 4 2.020 head dia, 5.369 length, .3717 stem, 30 deg, 2G (CAN USE 1007860)
DI: Natural
1487455 Valve exhaust 4 1.896 head dia, 5.285 length, .3717 stem, 30 deg, 2G, stellite (replaces 1007861, 6N9916, 7N0573)
DI: Turbo & Natural
5S6449 Valve exhaust 4 1.896 head, 5.469 length, 0.3717 stem, 30 deg, 2G [can use 8N0875]
IDI: Natura
