Product Attribute:
Supply Ability:1000 Set/Sets per Month RV air conditioning
Place of Origin:Henan China (Mainland)
Brand Name:thermokingtec
Model Number:TKT-40
Size:1150*720*365 mm
Car Make:CARAVAN
OE NO.:TKT-40
Key Word:RV air conditioning
Installation:roof top model
Type:Electric driven type
Cooling Capacity:Heating-4.5kw/cooling-4.2kw
Compressor:Electric compressor
Voltage:200V / 110V
Delivery Details:General Two Weeks After We get Payment
Applicationt:
caravan
Production Description:

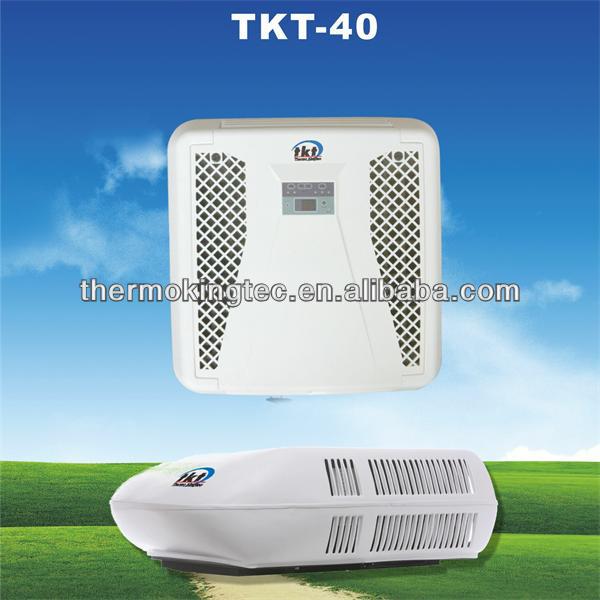

Hot selling- 220V/ 110V, 4.5 KW RV air conditioning
TKT-40 (Electrical Drive)
Roof Top Model
Thermo Kingtec, the caravan system supplier, offers you a full range of technological superior products that guarantee additional comfort in your caravan or motor home.
Travel at ease and arrive safely with products that have been developed especially with the requirements of mobile living in mind.
s Fully Reverse-cycle, Suitable for Heating & Cooling Fully Insulated Caravans & Motor homes up to 27ft (external) in Length;
s Remote Controlled so You Can Adjust Your comfort Level Anywhere Within Your Caravan or RV;
s Fitted With Built in Compressor Protection Against Intermittent Power Supply;
s Quieter than Any Other Competitive Caravan A/C;
s Designed to Dehumidify the Air to Help Asthma Suffers
Model No. | TKT-40H | TKT-40E |
Description | Unit | Technical Parameter | Technical Parameter |
Cooling | Cooling Capacity | W | 4500 | 4500 |
BTU/hr | 15300 | 15300 |
Power Consumption | W | 1220 | 1220 |
Rated Current | A | 6.2 | 11.2 |
Heating | Heating | W | 4200 | 4200 |
Power Consumption | W | 1620 | 1620 |
Rated Current | A | 7.8 | 14.8 |
Way of Heating | | Hot Water | Electrical Heating |
Air Cycle | m3/h | 650/585 | 650/585 |
Voltage (AC) | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz |
Working Temperature | °C | -5~50 | -5~50 |
Temp. Range | °C | 15~35 | 15~35 |
Noise | External | db(A) | <52 |
Internal | db(A) | <41 |
Refrigerant | R22/R407C |
Refrigerant Charge | g | 850 | 850 |
Weight | External | Kg | 47 | 47 |
Internal | Kg | 3.4 | 3.4 |
Dimension | External | mm | 1150(L)*720(W)*365(H) |
Internal | mm | 545(L)*520(W)*80(H) |
