Product Attribute:
Place of Origin:Henan China (Mainland)
Brand Name:THERMO KINGTEC
Model Number:Bus AC Unit with Sub engine TKT-380PB
Size:4120*1830*210mm
Type:Bus AC Unit with Sub engine
Car Make:64~67seats Tata bus, Ashok Leyland Bus
OE NO.:Standard
Model:Bus AC Unit with Sub engine TKT-380PB
Voltage:24V
Compressor type:Original Bock FKX40 compressor
Material:Cooper tube and aluminum fins
Driven type:Driven by sub engine
Refrigerant:R134a
Certification:ISO9001 TS16949
Condition:100% New
Warranty:36 months after delivery
Applicationt:
64~67seats Tata bus, Ashok Leyland Bus
Production Description:
Product Description
Tata and Ashok Leyland Bus AC Unit with Sub engine for Bus air conditioner TKT-380PB
TKT-380PB is designed for 66 Seats TATA and Ashok Leyland Buses for Mid East Market, Shuttle Buses for Airport ect(Ambient Temperature 55 鈩?.It is powered by Sub Diesel Engine, you can feel the cool air without influence the performance of bus in hot summer. It is famous in Mid East, South America, Europe, South Africa and Asia. It has great advantage as follows:
1. High Quality Copper Tube & Aluminum Fin Design to Guarantee the Enough Cooling
2. Special Designed Water Tank and Radiator which can Guarantee the Engine Work Normally even the Ambient Temperature Reach 60 Deg. C;
3. Special Modified Engine which Has Low Speed (1200 RPM) and High Speed (1800 RPM) to Save Fuel;
4. Special Designed Control Panel which Can Show the Bus AC Running Time, Warning of Sub Engine Maintenance;
5. Providing All the Components for Installation (Air Duct is Optional);
6. 3 Years Warranty Time after Delivery;\
Bus AC Unit with Sub engine TKT-380PB Technical Data:
1.Structure Roof Top Model
Cooling Capacity: 37 KW / 126100 BTU/ 29770 Kcal/h
Expansion Valve: Danfoss, 9.6 T
Voltage : DC24V
Power Consumption: 95A
Condenser QTY of Condenser Fan: 5 PCs
Condenser Coil Type: Copper Tube & Aluminum Fin
Condenser Air Flow: 11550M3/H
Evaporator QTY of Evaporator Blower: 8 PCs
Evaporator Coil: Type Copper Tube & Aluminum Fin
Evaporator Air Flow: 9020M3/H
Refrigerant: R134A,9.5~ 9.8KGS
Dimension of Roof Top AC: 4670X1830X210MM
Weight for Roof Top: 190KGS
2.Sub Engine Unit:
Brand & Model No. : ISUZU 4JB1 (Assembling in China)
Type: 4 Cylinder, Inline
Displacement: 2.771 L
Rated Power: 57KW/3,600rpm
Low Speed for A/C: 1000-1200RPM 锛團or Fuel Saving)
High Speed for A/C: 1600-1800RPM (For High Cooling)
Min Fuel Consumption: ≤221 g/kw.h
3.Compressor
Brand & Model No.: Bock(Germany), FX40
Displacement: 655CC
Pulley Type: 2A2B
4.Alternator & Capacitance Box
Brand & Model No.: BOSCH(USA)
Type: F042308017455 150A, Batteryless
Capacitance Box: SZXG-III
5.Water Tank
Pure Aluminum Design
Special Design for Qatar Market
Guarantee the Engine Working Under 69 Deg.c Air Temperature
Power Pack Unit Dimension: 1300x650x695MM (Lx W x H)
Weight: 410KG
Special Design: Secondary Shock Absorption/High Temperature Resistant Design/Stone Guard Design
Noise: ≤89db
Application 12-12.8M City Bus, Coach and Intercity Bus(Ambient Temperature 55 鈩?

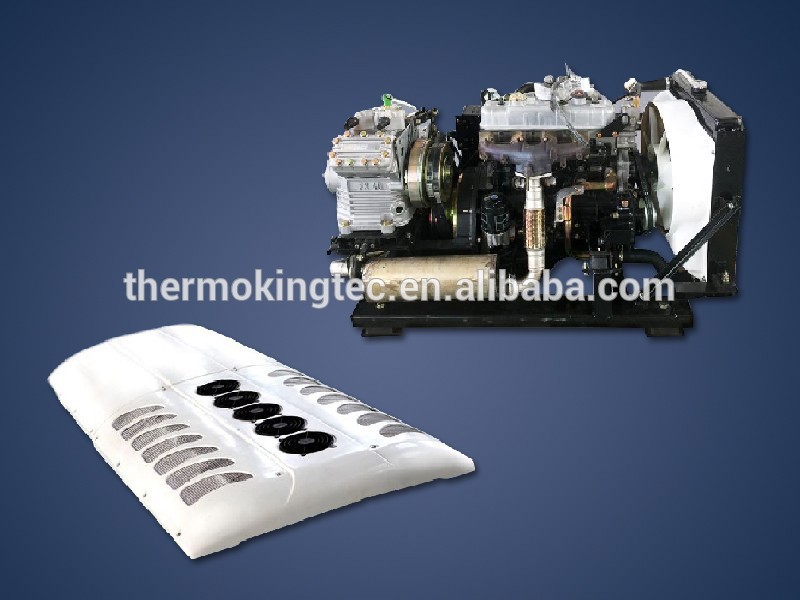

Products Show Our Package Roof Bus AC Unit
.
Sub Engine Unit
One 20ft Container sea shippment
Our Company Finished Tata Bus
FAQQ: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ?
A: Yes, we could offer the sample
Q: What is your terms of payment ?
A: Payment<=50000USD, T/Tin advance. Payment>=50000USD, 50% T/T in advance ,balance before shippment.
