Type:Pressure Gauge
Size:52mm
Place of Origin:Guangdong China (Mainland)
Brand Name:TENET
Model Number:TD52P10
Warranty:18 Months
size:52mm 2"
Range:0~10Bar or 0~5Bar
Specifications:

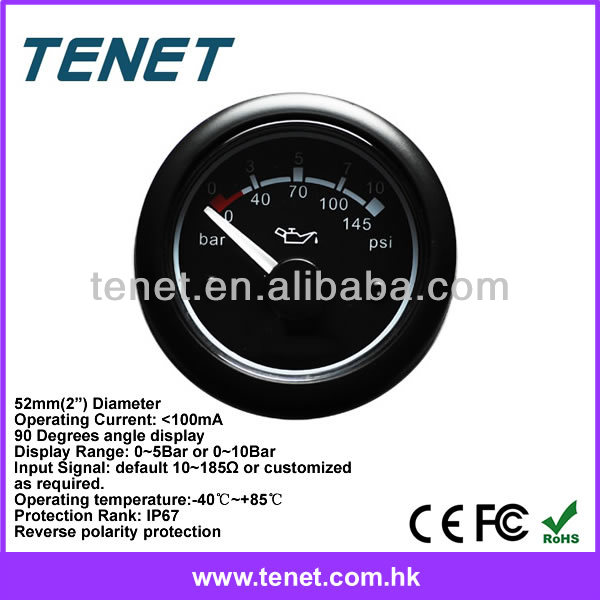

Oil Pressurege Gauge
Use moving-magnet principle to drive the needle, featuring good endurance and Anti-vibration
Operating Current: <100mA
90 Degrees angle display
Red or Yellow background light for option
Display Range: 0~5Bar or 0~10Bar
Input Signal: default 10~185Ω or customized as required.
Operating temperature:-40°C~+85°C
Protection Rank: IP67
Reverse polarity protection
Part No.
Pressure Range
Voltage
Mounting Hole
TD52P10
0~10 bar
8~32V
52mm(2”)
TD52P05
0~5 bar
