Type:Water Temp Gauge
Size:52mm
Place of Origin:Guangdong China (Mainland)
Brand Name:TENET
Model Number:TWT52
Warranty:18 Months
size:52mm 2"
Specifications:

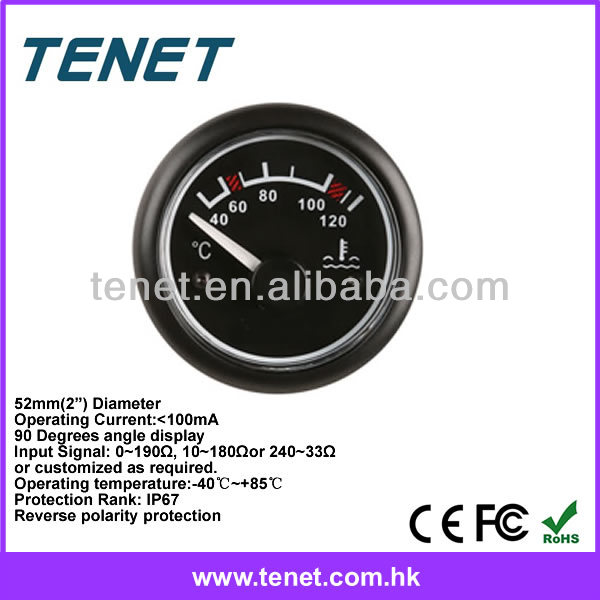

Water Temperature Gauge
Use moving-magnet principle to drive the needle, featuring good endurance and Anti-vibration
Operating Current:<100mA
90 Degrees angle display
Red or Yellow background light for option
Input Signal: 300~23Ωor customized as required.
Operating temperature:-40°C~+85°C
Protection Rank: IP67
Reverse polarity protection
Part No.
Input Signal
Temp Range
Voltage
Mounting Hole
TD52WT20
300~23Ω
40~120°C
8~32V
52mm(2”)
TD52WT28
287~23Ω
