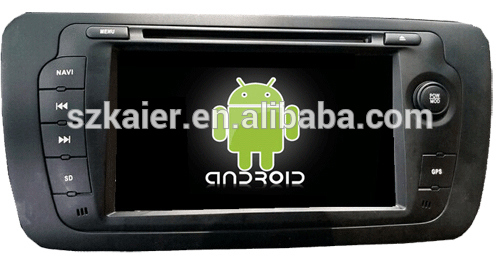

Hot selling ! Android 4.2 dual core OBD Mirror-link car navigator for VW 2013 Seat with GPS/Bluetooth/TV/3G/WIFI

Hot selling ! Android 4.2 dual core OBD Mirror-link car navigator for VW 2013 Seat with GPS/Bluetooth/TV/3G/WIFI

Market Type:  After Market

Packing:  carton/gift box

Delivery Port:  shenzhen/hongkong

Minimum Order:  50 Units

Product Attribute:

Supply Ability:20000 Unit/Units per Month

Delivery Details:3-5 working days( it dependents on quantity)

Production Description:

New product! Android 4.2 dual core car dvd for VW 2013 Seat with GPS/Bluetooth/TV/3G/WIFI











Specifications

System

CPU

Cortex A9 Dual core 1.5GHz Mstar786

RAM

DDR3 1Gb

ROM

8G EMMC

SD

support 32G SD card

VIDEO

RMVB,MKV,MOV,WMV,AVI,MPG,TS with 1080P H.264 format etc. almost all format was supported

AUDIO

MP3,WMA,WAV,OGG,FLAC

GPS MODULE

Support GPS

OS

Android 4.1.1

Temperature

-20°C TO +70°C

OS update

SD update

APP update

SD update

Logo update

SD update

Navigation software

IGO, navitel,  Sygic etc

DVD decoder

SUNPLUS 8202TQ

Screen

SUPPORT HD TFT (800*480/1024*600)and capacitive touch screen.

FM IC

NXP 6624 with RDS

WIFI

Build-in or External

3G GPRS

External (optional)3G dongle

TV

Build-in Analog or Digital TV( DVB-T, ISDB-T,DVB-T2)

Bluetooth

A2DP and Bluetooth OBD

Steering Wheel control

Support (Some cars need CAN BUS)

Rear view video

Support Automative turn on when reversing'

Power on

16S~20S, high speed turn on system

Power off

Rearly shut off the OS, <10mA

work volt

DC12V

Operate volt range

10.8V ~16V

Max current

10A

Form Factor

In-Dash

Enclosure Type

2 DIN

Features

GPS, DVD, FM/AM, iPod, Bluetooth, RDS, Steering wheel control, SD/USB multimedia palyback, Rear Camera Input, Aux In,

Ill control

Yes

Anti shock

Mechanical anti-shock & Electronic anti-shock

Motorized slide-down Face

NO

Panel Angle Control

NO

Display

Display mode

16:09

Screen Size

6.2 7 8inch

Touch Screen

Capacitance touch screen

Screen Resolution

800*480





Display Type

LCD-TFT

Brightness Control

Yes

OSD Language

English,Russian,Arabic,German,Spanish,French,Thai,Italian,Chinese,etc.

Display off

NO

Remote Control

Yes

Radio

Radio Tuner

FM/AM

Station Preset Qty.

18

Support RDS

Yes

Radio response bandwidth

AM: 522~1620 KHz, FM: 87.5~108 MHz

DVD

Video Output System

NTSC,PAL

Signal-to-Noise Ratio

85dB

Media Type

CD,HDCD,MP3,WMA,VCD,DVD,DVD-R/RW,DVD+R/RW,CD-R/RW,JPEG,etc.

Amplifier

Form Factor

In-Dash unit integrated

Amplifier output power / channel qty.

45W*4

EQ mode

Rock, Hip Hop, Dance, Latin, Rave, Urban, Acoustic;

Loudness

Yes

Subwoofer

Yes

Audio Line out channel

4.1

Bluetooth

Version

V2.0,support A2DP(Bluetooth Stereo Music),can play stereo music through Bluetooth

Built-in Microphone

Yes

Rear Camera Input

Reversing mode

Screen automatic display rear camera video when reversing whether power off or on.

Rear Camera

No, is optional

SD/USB/iPod

Playback mode

Automatic paly multimedia when the device connected unit

Interface

Video Input

2 Channel, One for camera, one for aux in

Video Output

2 Channel

Audio Input

1 Channel for aux in

Audio Output

4.1 Channel

Connector Type

1*Power, 1*iPod, 1*USB, 1*GPS ANTENNA

USB/SD CARD Port

USB Port, SD Port

iPod Control

Yes

Color

Originaly
