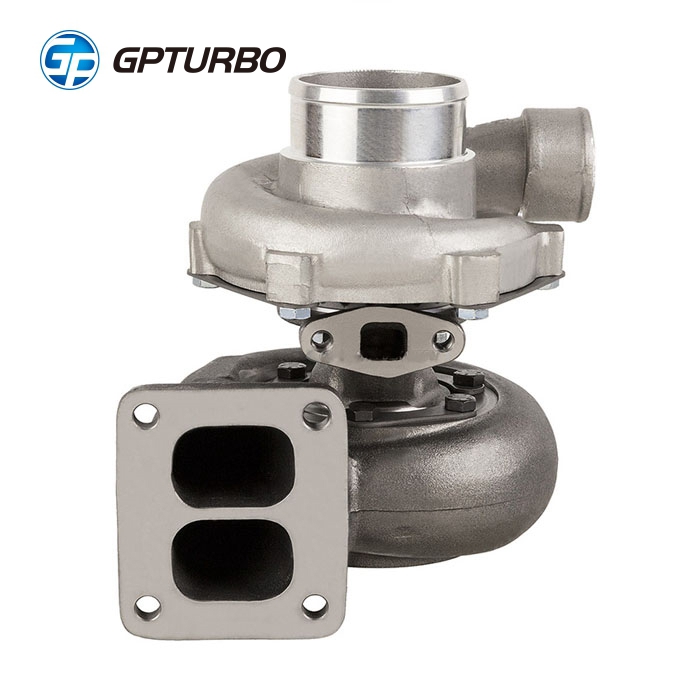

Diesel A451BDT Engine Garrett T04B37 Turbo 465260-0001 465354-0003, 465260-0003 for J.I. Case Industrial

Diesel A451BDT Engine Garrett T04B37 Turbo 465260-0001 465354-0003, 465260-0003 for J.I. Case Industrial

Market Type:  After Market

Packing:  Neutral Carton

Delivery Port:  Ningbo

Minimum Order:  1 Piece

Product Attribute:

Supply Ability:50000 Piece/Pieces per Month

Delivery Details:Shipped in 40 days after payment

Production Description:

Diesel A451BDT Engine Garrett T04B37 Turbo 465260-0001 465354-0003, 465260-0003 for J.I. Case Industrial

Product Description
Part Number 465260-5002S
Previous Version 168820, 465260-0001, 465260-0002, 465260-1, 465260-2
OE Number 403897707
Description White Tractor Agricultural vehicle (Altitude comp.) Agricultural
Turbo Model T04B37
Manufacturer Part Number 168820
CHRA 408105-0093 (303227405, 310379A, 311455)
Engine D500DT, A504BDHIALT
Engine Manufacturer Hercules
Fuel Diesel
Angle α (compressor housing) 122º
Angle β (turbine housing)
Bearing Housing 430027-0021/407285-0039 (311439A, 311439)
Shaft and wheel (right-hand thread) 407276-0006 (310944A, 310944)
Comp. Wheel 409179-0022 (310094)
Back plate 408045-0034 (312576)
Heat shield Number 407565-0000 (311607)
Repair Kit 468100-0000
Turbine Housing 410328-0005 (311737A, 311737/311722)
Compressor Cover 313106
Turbine Housing AR 1.32
Gasket (turbine inlet) 310694
Gasket (oil outlet) 311496
Gasket (oil inlet) 147837
NOTE Complete replacement turbo. Internal parts not interchangeable
Manufacturer Honeywell-Garrett





Applications

Hercules Agricultural with D500DT Engine
