Product Attribute:
Supply Ability:10000 Set/Sets per Month ,3 days samples ; 10-15 days mass production delivery within 5k
Delivery Details:15 days
Production Description:

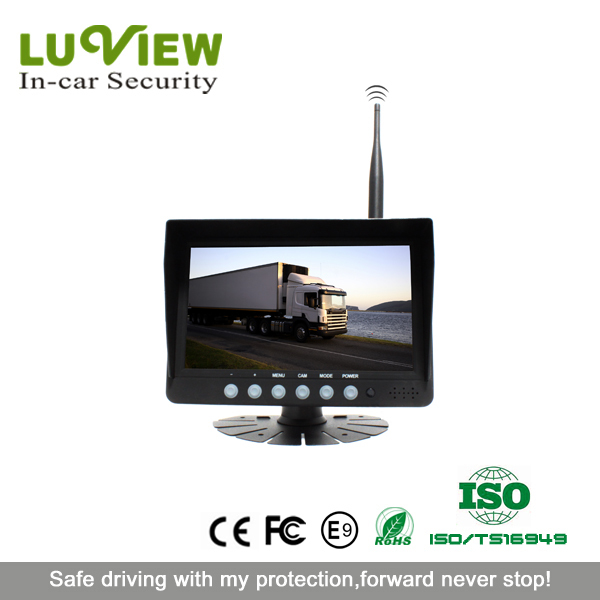

Wide screen wireless lcd screen monitor for farm vehicle
MDL# | JY-MS07 |
Video inputs | 2-CH inputs |
Screen size | 7" TFT LCD car monitor |
Type | 16:9 wide screen |
Resolution | 480 R.G.B x234 dots |
Color system | AUTO |
Power requirement | 12V DC |
Power consumption | ≤8.64W |
Operating temperature | -10°C to +65°C |
MIRROR/NORMAL switch | Yes |
Speaker | Yes |
Reversing gear is engaged | Automatically |
Dimension:7 Inch Color LCD car monitor.
TV System: NTSC/PAL AUTO
Resolution:480 X 3 X(RGB)X 234
Brightness: 300cd
Contrast: :300 :1
Aspect ratio:16:9
Viewing angle: U:50°/ D:60°, R/L:70°
Rating:20,000 hours
Multiple menu languages:English, Dutch, French, Portuguese, Spanish, Russian,
With remote control
Monitors can be optional with loudspeaker or not, users can adjust sound on the control panel or remote control
Support 2 cameras video simultaneous input
Support 1cameras audio simultaneous input
Separate trigger control wire on second camera
Monitor will automatic switch-over the image to second camera and back to the original mode when the trigger stops.
In standby mode, monitor will turn on automatically when triggered and will switch to second camera image.
Working voltage:12V
Working Current: 300MA
Self-protect of the DC voltage at the Short-Circuit.
Operating Temperature:-10°C~+65°C
Storage Temperature:-30°C~+80°C
Car make:
Excavator, crane, refuse truck, bus, concrete mixer ,lorry, farm vehicle, Truck , fire truck,sedan,RV, Vessel, etc
Advantages & services
1. Professional product orientation: In-car rearview products
Best price:we are a manufacturer
2.Moderate price, unlimited on MOQ, immediately delivery time for small amount orders, (normally in 5 days);
3. Leading techniques: we have the most innovative & creative R&D team
4. Quality control: full testing for all outgoing products
5. High quality insurance: 1% repair rate
6. Worldwide recognition: ISO, TS16949, CE, FCC, RoHS, E-mark certificates, Stable quality and we can offer the products' certificates, eg. CE, FCC, E-mark, & more
7. Great after-sales service:13 months quality insurance on our products
8. Supports the logo silk printing service without MOQ limited
9. Supports the design service for products & gift box
10. Offer the functional software development service for the products.
