Product Attribute:
Supply Ability:20000 Piece/Pieces per Month
Delivery Details:10 days
Production Description:

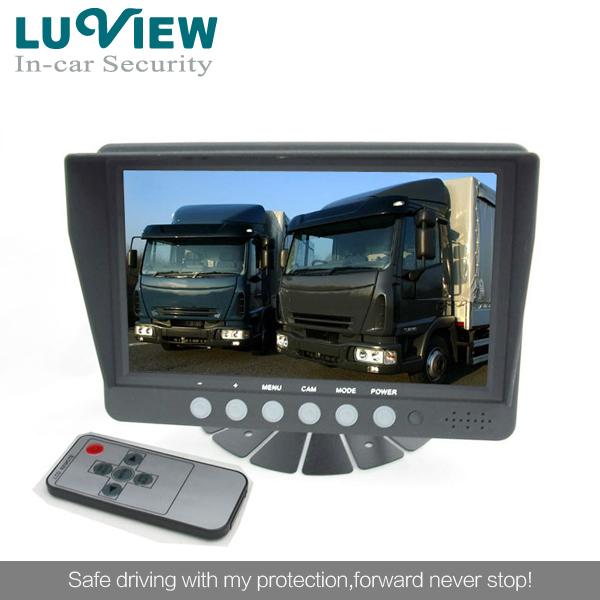

7inch TFT LCD Digital Screen Car Monitor with CE ,FCC rear view camera
Model#JY-MS07
Video Input:2-CH inputs;4-CH inputs without quad;4-CH inputs with quad funtion
Certification:CE FCC ROHS ISO9001
Video inputs | 2-CH inputs |
Screen size | 7" TFT LCD monitor |
Type | 16:9 wide screen |
Resolution | 480 R.G.B x234 dots |
Color system | AUTO |
Power requirement | 12/32V DC |
Power consumption | ≤8.64W |
Operating temperature | -10鈩?/span> to +65鈩?/span> |
Reverse guide | Yes |
MIRROR/NORMAL switch | Yes |
Reverse trigger | Automatically |
LCD-TFT Performance:
16:9 wide screen Video input: 4CH, audio optional Resolution:800*RGB*480 dots System:PAL&NTSC optional Power:12~32VDC Automatically turn on when the reversing gear is engaged Can be mounted on dashboard: 2CH&4CH optional: Outer dimension:74.7x(L)x 182(W)x 124(H)mm
Products featured function:
*Multiple menu languages: English, Dutch, French, Portuguese, Spanish, Russian, German, Italian
*With remote control *Monitors can be optional with loudspeaker or not, users can adjust sound on the control panel or remote control
*Support 2 cameras video simultaneous input
*Support 1 cameras audio simultaneous input
*Single, dual, triple, quad image for optional
*Normal or mirrored picture can be switched separately on each camera
*Separate trigger control wire on each camera *Monitor will automatic switch-over the image to the corresponding triggered camera and back to the original mode when the trigger stops.
*The trigger delay time can be adjusted (1-5s) on each camera.
*In standby mode, monitor will turn on automatically when triggered and will switch to the corresponding trigger camera image. *Self-protect of the DC voltage at the Short-Circuit
