Product Attribute:
Supply Ability:30000 Piece/Pieces per Month
Delivery Details:5 days
Production Description:
Specifications
Backup Monitor
Support 4 cameras input
16:9 Wide Screen
800 R.G.B x480 dots
RoHS, CE,E-mark,FCC,TS16949 Certificate

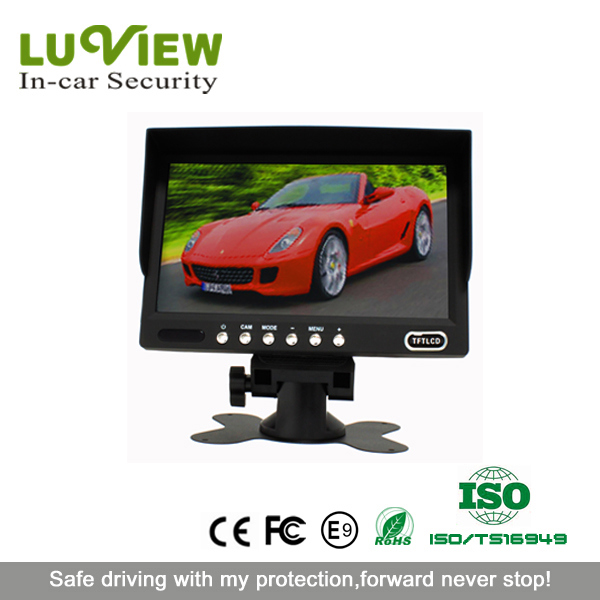

7 Inch LCD Reversing Security Car Stand Alone Backup Monitor for Truck/Trailer
MDL# | JY-M710Q |
Video inputs | 4-CH inputs |
Screen size | 7 Inch LCD Monitor |
Type | 16:9 wide screen |
Resolution | 800R.G.B x480 dots |
Color system | PAL/NTSC(selectable) |
Power requirement | 12/32V DC |
Power consumption | ≤8.64W |
Operating temperature | -10°C to +65°C |
MIRROR/NORMAL switch | Yes |
Reversing gear is engaged | Yes |
Dimension:7 Inch Car Digital Monitor
Resolution: 800 *3(RGB)*480
TV System: NTSC/PAL
Multiple menu languages: English, Dutch, French, Spanish, Russian, German, Italian
Monitors can be optional with loudspeaker or not, users can adjust sound on the control
Support 4 cameras video simultaneous input
Support 4 cameras audio simultaneous input
Can repeat the view picture ,1-60 sec can adjustment
Single, dual, triple, quad image for optional
Normal or mirrored picture can be switched separately on each camera
Separate trigger control wire on each camera
Monitor will automatic switch-over the image to the corresponding triggered camera and
back to the original mode when the trigger stops.
The trigger delay time can be adjusted (0-4s) on each camera.
In standby mode, monitor will turn on automatically when triggered
and will switch to the corresponding trigger camera image,Trigger end after shutdown
Working voltage: 12~32V,Self-protect of the DC voltage at the Short-Circuit.
Rearview Mirror Car Monitor with 7" TFT LCD Quad Monitor for Bus
