Product Attribute:
Supply Ability:30000 Piece/Pieces per Month
Delivery Details:5 days
Production Description:
Specifications
1,LCD Monitor
2,16:9 Wide Screen
3,Support 4 cameras input lcd monitor
4,800 R.G.B x480 dots lcd monitor
5,Working voltage 12-32V lcd monitor

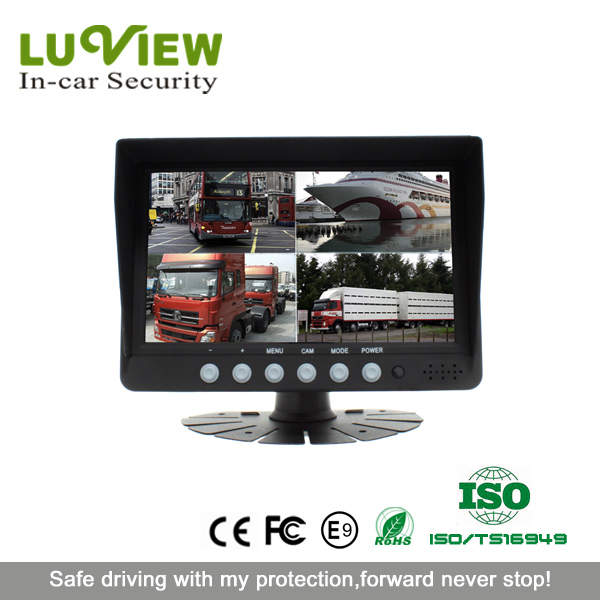

Luview 7 inch 4-CH Quad Digital Dashboard Car Rearview LCD Monitor for Truck
MDL# | JY-MS0704 |
Video inputs | 4-CH inputs |
Screen size | 7" digital LCD monitor |
Type | 16:9 wide screen |
Resolution | 800 R.G.B x480 dots |
Color system | AUTO |
Power requirement | 12/32V DC |
Power consumption | ≤8.64W |
Operating temperature | -10°C to +65°C |
MIRROR/NORMAL switch | Yes |
Speaker | Yes (4 audio) |
*Multiple menu languages: English, Dutch, French, Spanish, Russian, German, Italian
*Monitors can be optional with loudspeaker or not, users can adjust sound on the control car monitor
*Support 4 cameras video simultaneous input lcd monitoror
*Support 4 cameras audio simultaneous input lcd monitor
*Can repeat the view picture ,1-60 sec can adjustment car monitor
*Single, dual, triple, quad image for optional car monitor
*Normal or mirrored picture can be switched separately on each camera
*Separate trigger control wire on each camera
*Monitor will automatic switch-over the image to the corresponding triggered camera and back to the original mode when the trigger stops.
*The trigger delay time can be adjusted (0-4s) on each camera.
*In standby mode, monitor will turn on automatically when triggered and will switch to the corresponding trigger camera image,Trigger end after shutdown
*Working voltage: 12~32V,Self-protect of the DC voltage at the Short-Circuit.
Working voltage: 12V,Self-protect of the DC voltage at the Short-Circuit.
Services
1 Professional product orientation: In-car rearview products.
2 Moderate price, unlimited on MOQ, immediately delivery time for small amount orders, (normally in 5 days);
3 Stable quality and we can offer the products' certificates, eg. CE, FCC, E-mark, etc.;
4 Offer the LOGO silk printing service without MOQ limited.
5 Offer the design service for products and gift box.
6 Offer the functional software development service for the products.
