Product Attribute:
Supply Ability:30000 Piece/Pieces per Month
Delivery Details:5 days
Production Description:
Specifications
Touch Button Monitor
7 Inches Digital Moitor
Support 4 cameras input
800 R.G.B x480 dots
Working voltage 12-32V

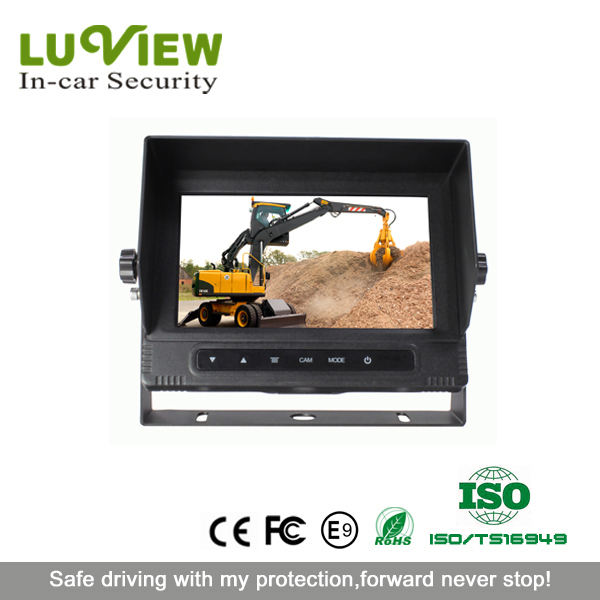

IP67 Waterproof 7 Inch Quad Security Car Dashboard Touch Button Monitor
MDL# | JY-M7554 |
Video inputs | 4-CH inputs |
Screen size | 7" Car Monitor |
Type | 16:9 wide screen |
Resolution | 800R.G.B x480 dots |
Color system | PAL/NTSC(selectable) |
Power requirement | 12-32V DC |
Power consumption | ≤8.64W |
Operating temperature | -10°C to +65°C |
MIRROR/NORMAL switch | Yes |
Reversing gear is engaged | Yes |
7 Inch Waterproof TFT Digital Backup Car Monitor for Trailer
Products featured function:
*Multiple menu languages: English, Dutch, French, Portuguese, Spanish, Russian, German, Italian
*With remote control
*Monitors can be optional with loudspeaker or not, users can adjust sound on the control panel or remote control
*Support 4 cameras video simultaneous input
*Support 4 cameras audio simultaneous input *Single, dual, triple, quad image for optional
*Normal or mirrored picture can be switched separately on each camera
*Separate trigger control wire on each camera
*Monitor will automatic switch-over the image to the corresponding triggered camera and back to the original mode when the trigger stops.
*The trigger delay time can be adjusted (1-5s) on each camera.
*In standby mode, monitor will turn on automatically when triggered and will switch to the corresponding trigger camera image.
*Self-protect of the DC voltage at the Short-Circuit
