Product Attribute:
Supply Ability:30000 Piece/Pieces per Month
Delivery Details:5 days
Production Description:
Specifications
Dashboard Monitor
Support 2 cameras input
800 R.G.B x480 dots
Working voltage 12-32V

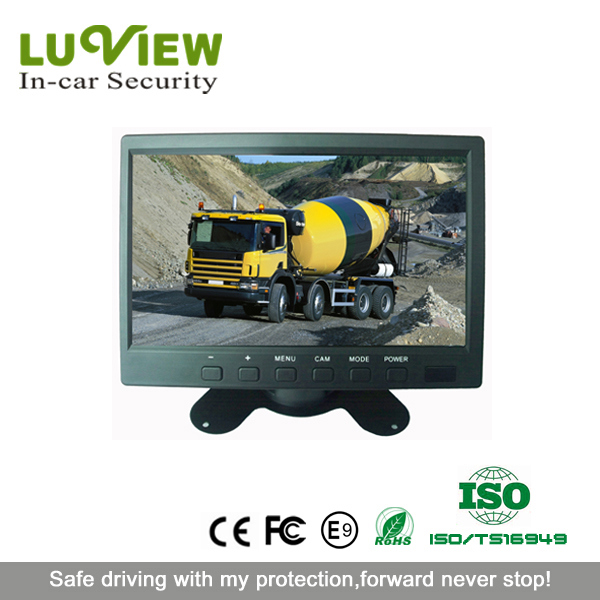

7 Inch Heavy Duty LCD Digital Car Reverse Dashboard Monitor for Lorry/Coach
MDL# | JY-M7802 |
Video inputs | 2-CH inputs without quad function |
Screen size | mounted 7 inch digital monitor |
Type | 16:9 wide screen lcd monitor |
Resolution | 800R.G.B x480 dots |
Color system | PAL/NTSC(selectable) |
Power requirement | 12/32V DC |
Power consumption | ≤8.64W |
Operating temperature | -10°C to +65°C |
MIRROR/NORMAL switch | Yes |
Reversing gear is engaged | Yes |
Dimension:7 Inch Color mounted 7 inch digital monitor
Resolution: 800 *3(RGB)*480
TV System: NTSC/PAL
Multiple menu languages:English, Dutch, French, Spanish, Russian, German, Italian
Monitors can be optional with loudspeaker or not, users can adjust sound on the control
Support 2 cameras video simultaneous input
Support 1cameras audio simultaneous input
Separate trigger control wire on second camera
Monitor will automatic switch-over the image to second camera and back to
the original mode when the trigger stops.
In standby mode, monitor will turn on automatically when triggered
and will switch to second camera image,Trigger end after shutdown
Working voltage: 12V mounted 7 inch digital monitor
Self-protect of the DC voltage at the Short-Circuit.
