Product Attribute:
Supply Ability:10000 Set/Sets per Month
Delivery Details:10 days
Production Description:

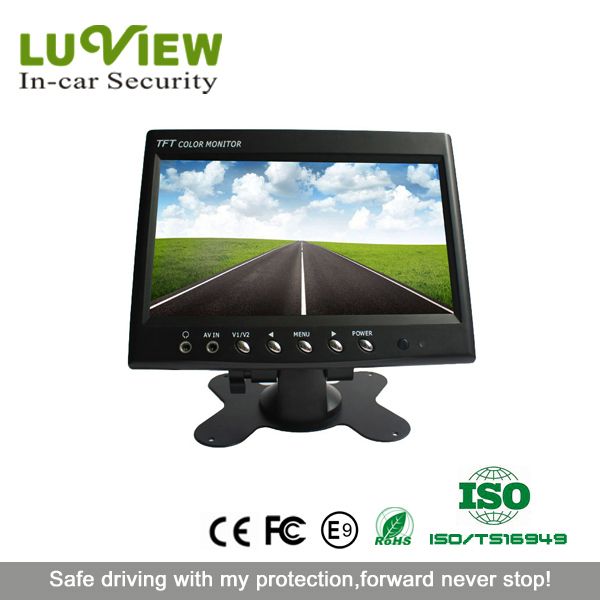

LUVIEW 7 inch Color TFT Rear View Monitor for Vehicle Security Driving System
MDL# | JY-M07 |
Video inputs | 2-CH inputs |
Screen size | 7'' LCD monitor |
Type | 16:9 wide screen |
Resolution | 480 R.G.B x234 dots |
Color system | AUTO |
Power requirement | 12VDC |
Power consumption | ≤8.64W |
Operating temperature | -10°C to +65°C |
MIRROR/NORMAL switch | Yes |
Speaker | Yes |
Car Rear View Monitor
*Multiple menu languages: English, Dutch, French, Spanish, Russian, German, Italian
*Car Monitor can be optional with loudspeaker or not, users can adjust sound on the control
*Support 2 cameras video simultaneous input
*Support 1 cameras audio simultaneous input
*Can repeat the view picture ,1-60 sec can adjustment
*Single, dual, triple, quad image for optional
*Normal or mirrored picture can be switched separately on each camera
*Separate trigger control wire on each camera
*Car Monitor will automatic switch-over the image to the corresponding triggered camera and back to the original mode when the trigger stops.
*The trigger delay time can be adjusted (0-4s) on each camera.
*In standby mode, monitor will turn on automatically when triggered and will switch to the corresponding trigger camera image,Trigger end after shutdown
*Working voltage: 12V, self-protect of the DC voltage at the Short-Circuit.
