Product Attribute:
Supply Ability:10000 Piece/Pieces per Month
Delivery Details:rearview monitor in 3 days after confirmed all information
Production Description:

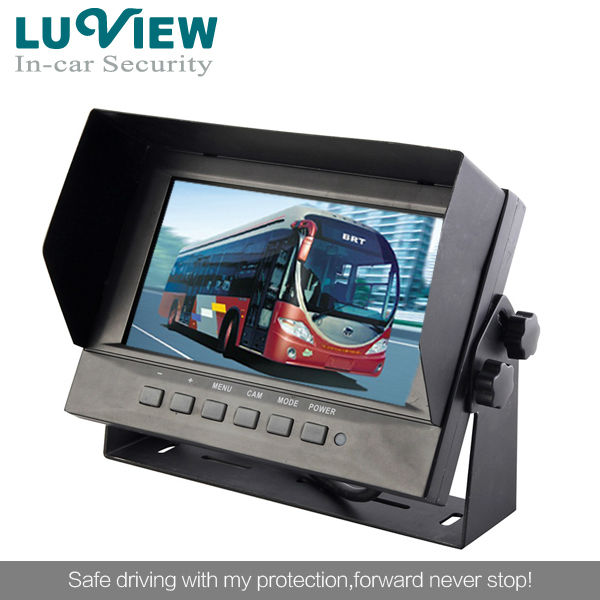

2014 Luview reverse rearview monitor 7inch rear view monitor backup rearview monitor for bus
LCD-TFT Performance
Dimension: 7" inch waterproof car monitor for boat
Brightness: 400cd
Contrast:500:1
lattice distance:0.192(H) x 0.1805(V)
Aspect ratio:16:9
Viewing angle:U: 50°/ D: 60°, R/L: 70°Rating: 20,000 hours
Products featured function
Shell material:aluminum alloy
Bracket material: iron
Dustproof, waterproof, hydrochloric acid prevention, explosion prevention
Multiple menu languages: English, Dutch, French, Portuguese, Spanish, Russian, German
With remote control
Monitors can be optional with loudspeaker or not, users can adjust sound on the control panel or remote control
Support 2 cameras video simultaneous input
Normal or mirrored picture can be switched separately on each camera
Separate trigger control wire on each camera
Monitor will automatic switch-over the image to the corresponding triggered camera and back to the original mode when the trigger stops.
The trigger delay time can be adjusted (0-4s) on each camera.
In standby mode, monitor will turn on automatically when triggered and will switch to the corresponding trigger camera image.
Working Current: 800MA(within 2 cameras)
Self-protect of the DC voltage at the Short-Circuit.
Operating Temperature: -10°C~+65°C
Storage Temperature:-30°C~+80°C
Bracket option:U-shape / S-shape
Outer dimension:82(L)X 40(W)X 124(H)mm
| Model | JY-M730Q |
| Video inputs | 4-CH inputs |
| Screen size | 7" digital LCD monitor |
| Type | 16:9wide screen |
| Resolution | 800 R.G.B x480dots |
| Color system | PAL/NTSC(selectable) |
| Power requirement | 12/32V DC |
| Power consumption | ≤8.64W |
| Operating temperature | -10°C to +65°C |
| MIRROR/NORMAL switch | Yes |
| Speaker | Yes |
| Reversing gear is engaged | Automatically |
