Product Attribute:
Supply Ability:10000 Piece/Pieces per Month
Delivery Details:3-7 days depends on the quantity
Production Description:

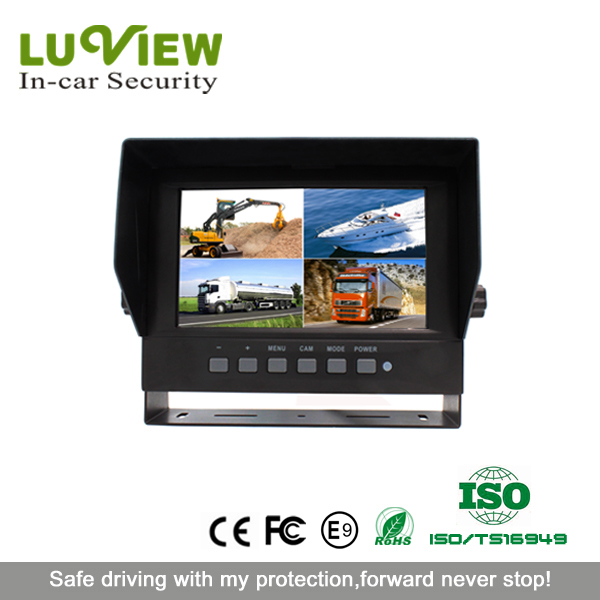

7 inch OEM waterproof LCD monitor for fire truck
MDL# | JY-M750Q |
Video inputs | 4-CH inputs with quad function |
Screen size | 7" waterproof digital LCD monitor |
Type | 16:9 wide screen |
Resolution | 800 R.G.B x480 dots |
Color system | PAL/NTSC(selectable) |
Power requirement | 12/32V DC |
Power consumption | ≤8.64W |
Operating temperature | -10°C to +65°C |
MIRROR/NORMAL switch | Yes |
Reversing gear is engaged | Automatically |
Waterproof | IP69K |
Some other specification of waterproof monitor JY-M750Q
Working voltage: 12-32V,Self-protect of the DC voltage at the Short-Circuit.
Shell material: aluminum alloy
Bracket material: iron
Dustproof, waterproof, hydrochloric acid prevention, explosion prevention
Multiple menu languages:English, Dutch, French, Spanish, Russian, German, Italian
Support 4 cameras video simultaneous input
Can repeat the view picture ,1-60 sec can adjustment
Single, dual, triple, quad image for optional
Normal or mirrored picture can be switched separately on each camera
Separate trigger control wire on each camera
Monitor will automatic switch-over the image to the corresponding triggered camera and
back to the original mode when the trigger stops.
The trigger delay time can be adjusted (0-4s) on each camera.
In standby mode, monitor will turn on automatically when triggered
and will switch to the corresponding trigger camera image,Trigger end after shutdown
Our advantages and services:
1. The best price--we are a manufacturer;
2. Offer the LOGO silk printing service without MOQ limited;
3. Offer the design service for products and gift box;
4. Leading techniques--we have the most innovative & creative R&D team;
5. Quality Control--Full testing for all outgoing products.
6. Great quality insurance--1% repair rate;
7. Worldwide recognition--CE,FCC,E-MARK Certificate and ISO 9001 management;
8. Great after-sales-service--12 months quality insurance on all products;
