Product Attribute:
Supply Ability:10000 Piece/Pieces per Month
Delivery Details:3-7 days
Production Description:

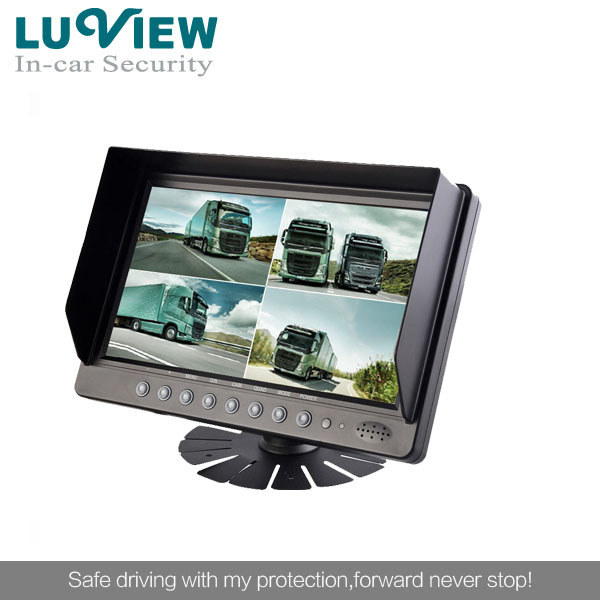

9'' LCD Rear View Car Quad Monitor for all Vehicles
1. Quick Detail
MDL# | JY-M900Q |
Video inputs | 4-CH inputs with quad function |
Screen size | 9" digital LCD monitor |
Type | 16:9 wide screen |
Resolution | 800 R.G.B x480 dots |
Color system | AUTO |
Power requirement | 12/32V DC |
Power consumption | ≤8.64W |
Operating temperature | -10°C to +65°C |
MIRROR/NORMAL switch | Yes |
Speaker | Optional |
Reversing gear is engaged | Automatically |
2. Specification:
Multiple menu languages: English, Dutch, French, Spanish, Russian, German, Italian
Monitors can be optional with loudspeaker or not, users can adjust sound on the control
Support 4 cameras video simultaneous input
Support 4 cameras audio simultaneous input
Can repeat the view picture ,1-60 sec can adjustment
Single, dual, triple, quad image for optional
Normal or mirrored picture can be switched separately on each camera
Separate trigger control wire on each camera
Monitor will automatic switch-over the image to the corresponding triggered camera and back to the original mode when the trigger stops.
The trigger delay time can be adjusted (0-4s) on each camera.
In standby mode, monitor will turn on automatically when triggered and will switch to the corresponding trigger camera image,Trigger end after shutdown
Working voltage: 12~32V,Self-protect of the DC voltage at the Short-Circuit.
3. Packing Detail:
Net Weight: 1.4KG
White box size: 28.5*27*8.3cm
Carton box size: 57.5*40*31
10 boxes in one carton
Total: 16.8KG
4. Car Make
This 9'' Rear View Car Quad Monitor can suitable for all kind of vehicle rear view system, backup. A good tool for your vehicle parking.
5. Picture
