Product Attribute:
Supply Ability:10000 Set/Sets per Month , 3 days samples ; 10-15 days mass production delivery within 5k
Delivery Details:5 days
Production Description:

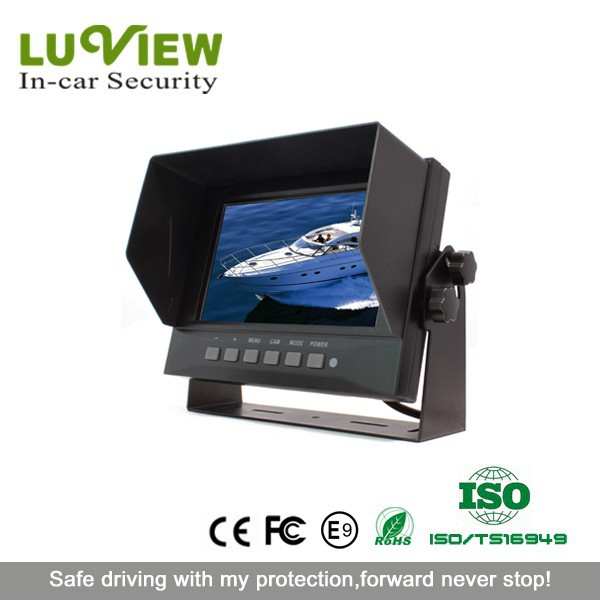

7" inch 4CH waterproof rear view car monitor for Boat
MDL# | JY-M7504 |
Video inputs | 4-CH inputs without split function |
Screen size | 7" waterproof digital LCD car monitor |
Type | 16:9 wide screen |
Resolution | 800 R.G.B x480 dots |
Color system | AUTO |
Power requirement | 12/32V DC |
Power consumption | ≤8.64W |
Operating temperature | -10°C to +65°C |
MIRROR/NORMAL switch | Yes |
Reversing gear is engaged | Automatically |
Waterproof | IP69K |
Heavy-duty car monitor
Dimension: 7" inch waterproof car monitor for fire truck
Brightness: 400cd
Contrast:500:1
lattice distance:0.192(H) x 0.1805(V)
Aspect ratio:16:9
Viewing angle:U: 50°/ D: 60°, R/L: 70° Rating: 20,000 hours
Shell material:aluminum alloy
Bracket material: iron
Dustproof, waterproof, hydrochloric acid prevention, explosion prevention
Multiple menu languages: English, Dutch, French, Portuguese, Spanish, Russian, German
With remote control
Monitors can be optional with loudspeaker or not, users can adjust sound on the control panel or remote control
Support 2 cameras video simultaneous input
Normal or mirrored picture can be switched separately on each camera
Separate trigger control wire on each camera
Monitor will automatic switch-over the image to the corresponding triggered camera and back to the original mode when the trigger stops.
The trigger delay time can be adjusted (0-4s) on each camera.
In standby mode, monitor will turn on automatically when triggered and will switch to the corresponding trigger camera image.
Working Current: 800MA (with in 2 cameras)
Self-protect of the DC voltage at the Short-Circuit.
Operating Temperature: -10°C~+65°C
Storage Temperature:-30°C~+80°C
Bracket option:U-shape / S-shape
Outer dimension:82(L)X 40(W)X 124(H)mm
Car make:
Excavator, crane, refuse truck, bus, concrete mixer ,lorry, farm vehicle, Truck , fire truck,sedan,RV, Vessel, etc
Advantages & services
1. Professional product orientation: In-car rearview products
Best price:we are a manufacturer
2.Moderate price, unlimited on MOQ, immediately delivery time for small amount orders, (normally in 5 days);
3. Leading techniques: we have the most innovative & creative R&D team
4. Quality control: full testing for all outgoing products
5. High quality insurance: 1% repair rate
6. Worldwide recognition: ISO, TS16949, CE, FCC, RoHS, E-mark certificates, Stable quality and we can offer the products' certificates, eg. CE, FCC, E-mark, & more
7. Great after-sales service:13 months quality insurance on our products
8. Supports the logo silk printing service without MOQ limited
9. Supports the design service for products & gift box
10. Offer the functional software development service for the products.
7" inch waterproof car monitor for fire truck / Waterproof monitor for boat / quad waterproof scree
