Type:Diesel Engine
No. of Cylinders:3 Cylinder
Power:Standard
Displacement:Standard
Torque:280/2000 Nm (kg-m)/rpm
Place of Origin:Zhejiang China (Mainland)
Brand Name:FOR TOYOTA
Model Number:4Y
Warranty:1 Years

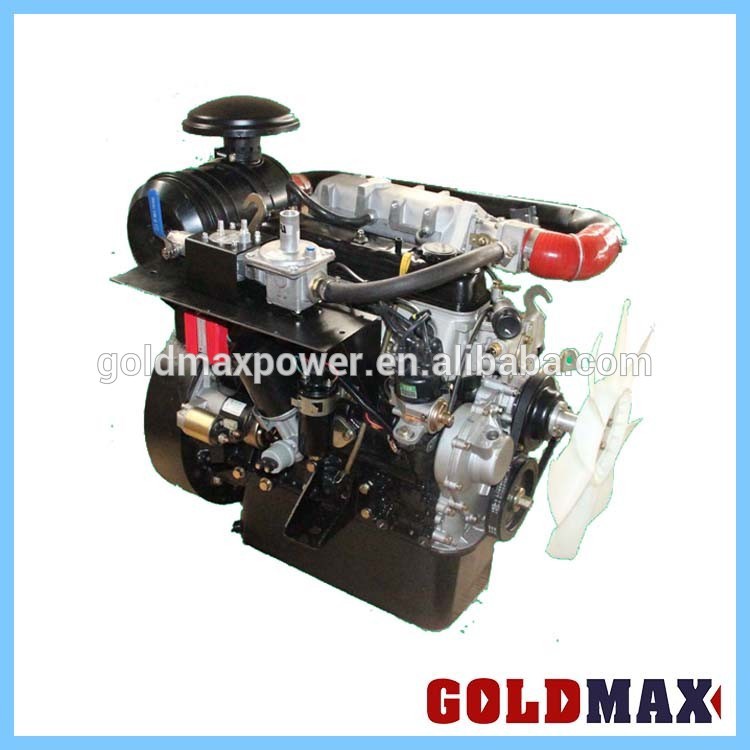

Toyota 4Y engine Our products are welcomed by our customers with good quality and competive pric3e. We supply various engines with high quality and welcome your contaction.
Specifications and Description:
Line
Item
Specifications and Description
1
Model
Toyota 4Y
2
Type
4 stroke, water cooling, inline, wedge shape combustion chamber
3
Cylinders
4
Bore
91 mm
5
Stroke
86 mm
6
Displacement
2.237 L
7
Power / RPM
68 kw / 4,200-4,600 rpm
8
Idle speed
750 ± 50 rpm
9
Max. torque/RPM
177N.m / 2,800-3,200 rpm
10
Fuel supply
Carburetor
11
Fuel
RON 90 (GB484)
12
Min. fuel consumption
≤ 285 g / kw.h
13
Oil
SE 10 W-30 or SE 15 W-40 (GB11121)
14
Oil consumption
≤ 0.8 %
15
Piston average speed
13.19 m / s
16
Crankshaft rotation (facing to flywheel)
anticlockwise
17
Compression ratio
8.8
18
Weight vs. power
2.25 kg / kw
19
Average efficient pressure
793 kPa
20
Power vs. displacement
30.4 kw / l
21
Ignition order
1-3-4 -2
22
Distributing
Intake in advance
12 °
Intake in lag
48 °
Exhaust in advance
54 °
Exhaust in lag
10 °
23
Cooling
Centrifugal water pumped cycling
24
Lubricating
Pressed and splashed
25
Starting
Electric starter
For Toyota 3Y/4Y/5L
For Isuzu 4JB1
For Suzuki F10A/F8A
Features
Engine type
4Y-NG-G
Engine style
Straight line ,Water cooled,4 stoke , Pre mixing
Cylinders DIA. stroke
91-86(MM)
Displacement(L)
2.237
Rated speed KW (r/min)
20@1500) 38@3000
10:1
Minimum consumption rate g/(KW.h)
<<230
Specific oil consumption g/KW.h
<<0.7
Maximum no-load speed r/min
< 3600
Idling speed(r/min)
1500±50
Noise db
<<85
N.W
165KG
