Type:Diesel Engine
No. of Cylinders:4 Cylinder
Power:Standard
Displacement:2.771L
Torque:Standard
Place of Origin:Zhejiang China (Mainland)
Brand Name:GOLDMAX

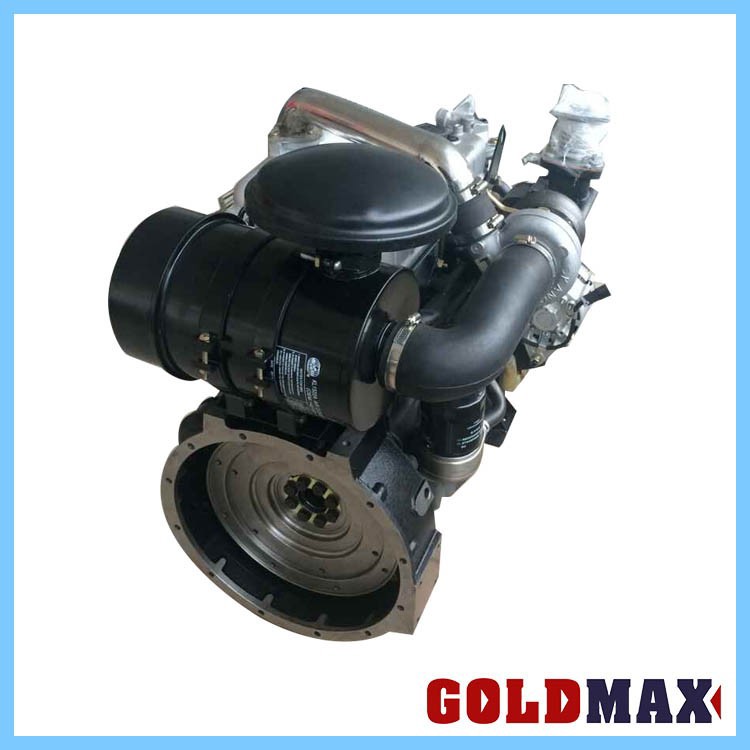

Model Number:4JB1T
Warranty:1 Years
Model
4JB1
4JB1T
Intake Air type
N/A
TurboCharged
Type
In-Line, 4-stroke water-cooling
Cylinder
4
Bore*stroke
93*102mm
Shape of combustion chamber
Direct Injection
Type of cylinder liner
Dry liner
Total displacement
2.771L
Compression ratio
18.2
Crank axle rotation direction
Left rotation
Rated Speed(RPM)
1500
1800
Rated Power(kw)
24
28
34
Overload Power(kw)
26
31
37
Ignition order
1-3-4-2
Lubrication model
Force-feed splash
Flywheel
SAE 7.5
Flywheel housing
SAE 4
Net weight
≤225kg
Dimension
885*667*788
For Toyota 3Y/4Y/5L
For Isuzu 4JB1
For Suzuki F10A/F8A
Features
1. High efficiency and low emission
2. Low fuel consumption
3. Easy and fast starting
4. Convenient operation
5. Endure the hard work
