Product Attribute:
Supply Ability:200 Set/Sets per Month
Delivery Details:Shipped in 2 days after payment
Production Description:
Specification:
DEUTZ
Model: BF6L912
Application: Generatoring set, Construction machine &Engineering machine, Mixer truck, Welding machine

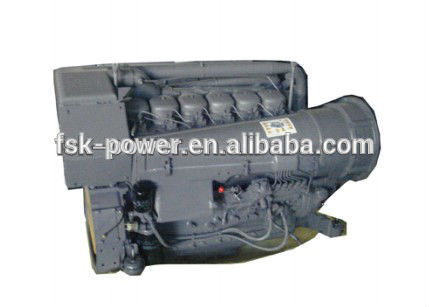

product photos:
Data of engine BF6L912 engine
Type | Air cooled, direct injection. |
Num of cylinders | 6 |
maximum power(KW) | 118 |
Bore/Stroke(mm) | 102/125 |
declared speed(r/min) | 1500-2500 |
Max. torque (N.m) | 490 |
Max. torque speed (r/min) | 1700 |
Displacement (L) | 6.128 |
reduction ratio | 18:1 |
Emission | Euro II |
Crankshaft rotation direction | counter clockwise(face to flywheel end) |
Size(L*W*H mm) | 1134*711*919 |
Weight (Kg) | 485 |
Rotation Direction | Clockwise (From Fan End) |
Power Output | Flywheel |
Size L*W*H (mm) | 730*673*815 |
List of our Deutz engine:
1.Deutz 1013/1015/2012 series: BF6M1013, BF4M2012, BF6M2012, BF6M1015, BF6M1015C,BF8M1015CP
2.Deutz 413/513 series: F8L413F,BF8L413F, F10L413F, F12L413F,BF8L513, BF8L513C, BF10L513,BF12L513
3.Deutz 912/913 series: F2L912, F3L912 ,F4L912, F4L912T, F6L912, F6L912T, F4L913, BF4L913, F6L913, BF6L913, BF6L813C, F3L912W, F4L912W, F6L912W
| Model | F2L912 |
| Type | 2-Cyl in-line natural intake Turbo charged cooled |
|
|
| Combustion System | direct injection |
| Compression Ratio | 17:1 |
| Rotate (flywheel housing side) | anticlockwise |
| Displacement(L) | 1.88 |
| Bore ×Stroke(mm) | 100×120 |
| Continue Power(kW) at 2300rpm | 20 |
| Min.Idle speed(rpm) | 700 |
| Max. Torque at 1600rpm | 105 |
| Weight (kg) | 245 |
| Size(L*W*H)mm | 465*679*807 |
| Flywheel | SAE8-11.5 |
| Deutz Model | Bore*stroke mm | Power KW/speed rpm | Size(mm) | weight (Kg) |
| F2L912 | 100/120 | 14/1500 | 17/1800 | 20/2300 | | 678×704×872 | 245 |
| F3L912 | 100/120 | 24/1500 | 29/1800 | 36/2300 | 38/2500 | 730×673×815 | 275 |
| F4L912 | 100/120 | 32/1500 | 38/1800 | 46/2300 | 51/2500 | 860×673×815 | 300 |
| F4L912T | 100/120 | 41/1500 | 48/1800 | 52/2000 | | 865×673×815 | 315 |
| F4L913 | 102/125 | 34/1500 | 40/1800 | 50/2300 | 56/2500 | 860×673×820 | 310 |
| BF4L913 | 102/125 | 47/1500 | 55/1800 | 66/2300 | 78/2500 | 865×692×845 | 350 |
| BF4L913ADG | 102/125 | 57/1500 | 66/1800 | | | 865×692×845 | 375 |
| F6L912 | 100/120 | 48/1500 | 60/1800 | 74/2300 | 78/2500 | 1120×673×815 | 410 |
| F6L912T | 100/120 | 61/1500 | 72/1800 | | | 1120×673×815 | 420 |
| F6L913 | 102/125 | 51/1500 | 65/1800 | 79/2300 | 85/2500 | 1120×673×820 | 420 |
| BF6L913 | 102/125 | 88/1500 | 106/1800 | 112/2300 | 118/2500 | 1134×711×910 | 485 |
| BF6L913C | 102/125 | 114/1500 | 137/1800 | 125/2300 | 141/2500 | 1134×711×990 | 510 |
If you have any demand of complete diesel engine or spare parts,pls contact with me,
Skype:(cn1511130663)WhatsApp:+8613556879962Tel:86-755-28341876Mobile:86-13556879962Fax:86-755-28341875
