Product Attribute:
Supply Ability:100000 Piece/Pieces per Month
Delivery Details:7 days after confirming the payment
Production Description:

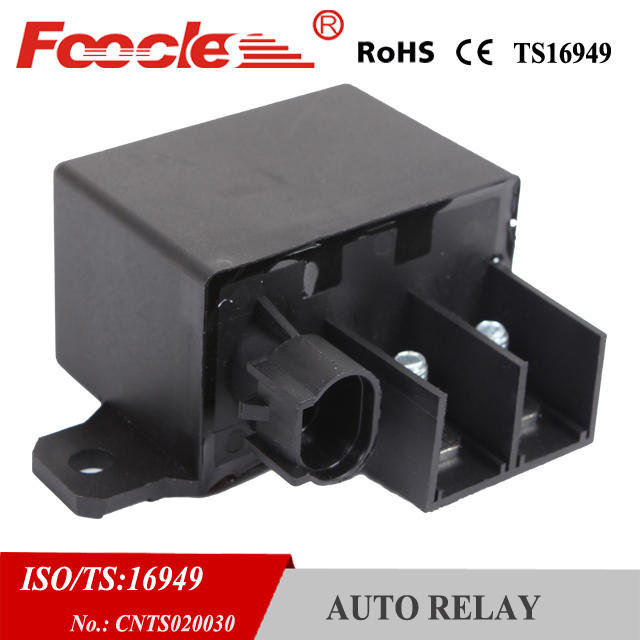

High Quality Truck Parts C1393315-9 Auto Preheating Relay
Product Description
Relay Features:
-
Limit off current 150A
-
1 Terminal limit continuous current 180A
-
Stability of base structure
-
Dust cover IP6K5
-
Outline dimensions: 98*71*40
Relay Specification:
|
Contact Form
|
1A |
|
Contact Material |
AgSno2
|
|
Max. Operating Current |
150A
|
|
Coil Data |
141Ω±10% resistance(680Ω) / 35Ω±10% resistance(250Ω)
|
|
Rated voltage of coil |
24VDC/12VDC |
|
Rated coil power |
4.1W
|
|
Pull in voltage |
≤17VDC/≤8VDC |
|
Release voltage |
≥2.4VDC / ≥1.2VDC
|
|
Operate Time |
<30mS |
|
Release time |
<15mS
|
|
Electrical life |
100000 times
|
|
Mechanical life |
1000000 times |
|
Life Between coil&contacts |
500VAC/1min |
|
Ambient temperature |
-40+85?/span> |
|
Protection catagory |
IP6K5 |
|
Terminal type |
Insert coil / Screw terminals load |
|
Installation method |
Flange mounting |
External Dimension:
Remark:(1)In case of no tolerance shown in outline dimension: outline dimension≤1mm, tolerance should be ±0.2mm;
Outline dimension>1mm and≤5mm, tolerance should be ±0.3mm; outline dimension>5mm,
tolerance should be ±0.4mm.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
