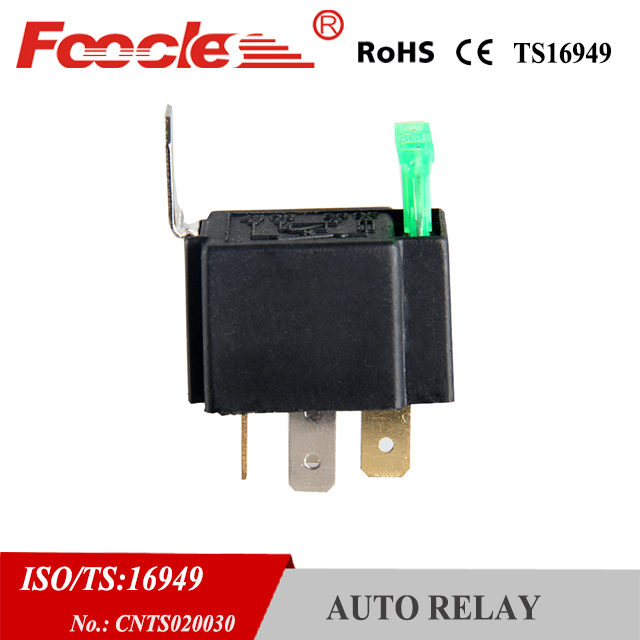

car relais fuse dc12v automotive relays

Product Attribute:

Supply Ability:500000 Piece/Pieces per Month

Delivery Details:7 days after confirming the payment

Production Description:

car relais fuse dc12v automotive relays



Product Description



Relay Features:



• 30A switching capability

• 1 form A contact form

• Sealed IP67 and dust cover types available

• Outline dimensions: 14.5*19*20mm

Relay Specification:

Contact Form	1A	Dielectric Strength(Coil and Contact)	500VAC/M
Contact Material	AgSno2	Ambient Temperature	-40°C~+85°C
Max. Operating Current	30A	Operate/Release Time	10ms/10ms
Max. Operating Voltage	27VDC	Mechanical Life	1 X106
Insulation Resistance	100MΩ	Electrical Life(min)	1 X105
Rated Load(Resistive load)	1A:30A 13.5VDC 15A 27VDC	Terminal Type	Terminal





Coil Ratings:



Normal voltage(VDC)	Pick-up voltage(VDC)	Drop-out voltage(VDC)	Coil resistance(Q±10%)	Parallel resistance(Q±5%)	Equivalent resistance(Q±10%)	Power consumption(W)	Max. allowable overdrive voltage(VDC)
							20?/span>	85?/span>
12	8.4	1.2	90	-	-	1.6	20.2	15.7
12	8.4	1.2	80	680	79.5	1.8	20.2	15.7
24	16.8	2.4	360	-	-	1.6	40.5	31.5
24	16.8	2.4	320	2700	317.6	1.8	40.5	31.5



 External Dimension:





Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
