Product Attribute:
Place of Origin:Guangdong China (Mainland)
Brand Name:oem
Model Number:AK-043LA
Type:Interior Mirror
Function:Reverse Camera Display
Screen:4.3" LCD display
Resolution:480*272
Brightness:2800 cd/m2
Glass:High reflectance
Mirror Shell:from Bayer, Germany
Monitor:4 times more expensive than other supplier
Video Input:2 -way
Bracket:OEM Installation
Mirror Design:Original Style and Original Size
Company Website:
Production Description:
Quick Guide

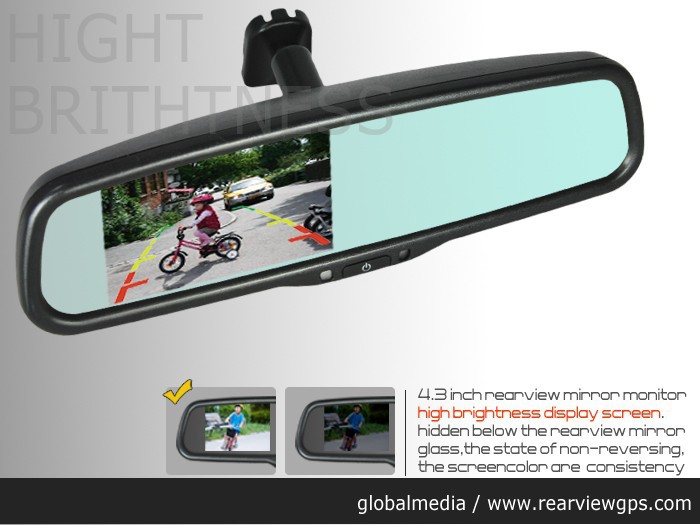

High Resolution 4.3'' TFT/LCD Display
Designed to replace factory glass mount mirror
400 x 234 Resolution
16:9 Aspect Ratio
Auto Switching PAL/NTSC
Auto Brightness
Dual Video Inputs
This Mirror features an embedded A Grade LCD monitor that captures the camera image in crystal clear viewing. The monitor automatically comes on once reverse in selected, with a OPTIONAL camera it will capture any blind spots in your path. The monitor also has an auto brightness control, so on bright sunny days the monitor will adjust to full brighness to eliminate sun glare when reversing. Dual video inputs is also available, this is great if you are fitting a front camera as well.
Product Specifications [Screen Sizs]: 4.3"
[Display Screen]: TFT-LCD
[display Resolution]: 480(H)*RGB*272(V)
[Aspect Ratio]: 16:9
[Power Supply]: <2W
[Power Supply]: DC12V
[Video Input]: AV1 to VCD/DVD(defaulted),AV2 to backup camera.
[Signal System]: PAL/AUTO/NTSC
[Brightness]: 2800cd/m2
1. TFT-LCD display for DVD/VCD player
2. Automatically adjust LCD display to optimum effect as per ambient light
3. Automatically switch to rear view system when reversing,ensure to parking safel
5. Can connect to VCD/DVD/TV/GPS and etc video input device
6. Easy for installation and uninstallation
7. Replace the original car mirror (provide different car mirror base)
8. Auto-dimming /Compass /Temperature optional
9. Reversing camera, parking sensor are for your options.
Auto Switching When Reverse:
1. Under power-on condition: When reverse gear is engaged, the system automatically switches from DVD/VCD video to
backup camera video, and when parking is completed, it switches back automatically.
2. Under power-off condition: When reverse gear is engaged, the system automatically starts on to find the camera signal and display backup video. When parking is completed, it switches off automatically.
3. Original install bracket: Toyota Camry,Prado,Crown,Reiz,Buick Regal,GL8,Mondeo,Focus,Mazada 6,Honda Accord,Odyssey,Galand,GM HRV, Lova,Tiida,Tenna,CRV,Passat Bora,MFI,Audi,Skoda,Jetta,Epica,Chery 06,Sonata,Elantra,Honda City,Mitsubishi Grandis etc
Product Quality
1. Wire Harness
6 meter or 10 meter
2. Shell
ABS+PC, heat resistance, low and high temperature resistance, impact resistance
3. Glass
The thickness of Germid's glass is 4MM while the general rearview mirror's glass is 1.8MM or 3MM. The total cost of 4mm mirror and processing is 4 times more than general glasses. And Germid's glass is absolutely secure and strong enough to pass car factory’s destruction test.
4. Bracket
The diameter of our bracket’s tube is far larger than general bracket. Its internal spring’s stiffness and restorability have reached standards of car factory.
5. Monitor
Our display screen is of original car’s standard. And it works at a standard temperature from -30c to +85c while normal screen is 0c to 60c or -20c to 70c. The purchasing cost of our screen is 27USD while ordinary screen is 4 to 7 USD. Germid’s screen is the same as that used in the car dashboard. Its working life is 10-20 years which is the same as car. Light inside the screen has passed AEC-Q101 certification. Working current is 50MA to 250MA while general screens’ is 20MA to 35MA.
6. Screen Automatic Brightness Adjustment
The brightness of general mirror span from 100 lux to 250 lux. At night, when the screen suddenly lights up, it will make the driver’s eyes blind. It takes 1-2 seconds for drivers to get used to the light and see views clearly displayed on the screen. After reversing is finished and the screen is turned off suddenly, the driver cannot see what’s happening forward. It takes 2-4 seconds for the driver’s eyes to adjust to the darkness. Glare in the front of car makes the driver cannot see clearly through rearview mirror, which is easy to cause accidents. Our mirror has precise brightness adjustment system. The screen can automatically adjust brightness in the daytime, twilight or evening. However, the driver cannot notice the differences. Because screen’s changing brightness is already integrated into the changing ambient light. In fact, the brightness is 20 times different from the daytime to at night. Therefore, you will have a comfortable experience when using our mirror.
Package
Unit Dimension (L*D*H) 26.5*8*3.2
Qty per Export Carton 10pcs
Unit Packing: (L*W*H) 31*17.5*6.5cm
Export carton (L*W*H) 35.5*32.7*38cm
Unit Packing (G.W.) 1.3KG
Export carton (G.W.) 13KG
MOQ 100PCS
20'FT Qty 3000pcs
After - sales service
1.Sample is available for further evaluation
2. Warranty:3year
3.Offer long-term OEM/ODM service
SAFETY
1. The rear camera display is only a visual assist device when reversing the vehicle. The image on the screen may be different from the actual conditions. Always look directly with your eyes and drive carefully.
2. Backup as alow as possible since high speeds might limit your reaction time to stop the vehicle.
3. The displayable range varies depending on the vehicle loads and road conditions.
4. Do not use the rear view camera system with the tailgate open.
5. Objects under the bumper or around the bumper can not be displayed.
Company Profile
Founded in 2007, GERMID has been devoting in developing and manufacturing car interior rearview mirror. Currently,We are one of the most professional manufacturers of car interior rearview mirror. With an annual output by 1.2 million, GERMID is the OEM supplier of car interior rearview mirror for car factories such as TOYOTA,FIAT etc. GERMID has been approved of TS-16949 Quality System. With the continuous improvement of the quality, we will rank in the World-class OEM suppliers of auto rearview mirror and root in this industry gradually.
Our company pays extra attention to scientific and technological innovation. We aspire to become a company like Apple.
As a result, revolutionary rearview mirror product with wholly new functions appears, one after another. At present, our company has 8 product lines that are high brightness rear view mirror, multiple display rearview mirrors, Win CE Bluetooth navigation rearview mirror, android Bluetooth navigation rearview mirror, CAN BUS rearview mirror, DVR rearview mirror, Bluetooth handsfree rearview mirror and TPMS rearview mirror. Lots of functions will be built-in Global Media’s rearview mirror.
We always focus on the latest scientific and technological developments, researching the possibility of every achievement to be applied in the rearview mirror. Only and must after the confirmation of reliable quality can we integrate it into GERMID rearview mirror system. Quality is the key point, because once installed the rearview mirror will be over the driver’s head every moment and no one could endure such a bad product over your head.
