Product Attribute:
Place of Origin:Guangdong China (Mainland)
Brand Name:Germid/ OEM/ ODM
Model Number:EV-043LA-1080P
Type:Interior Mirror
Function:auto dimming

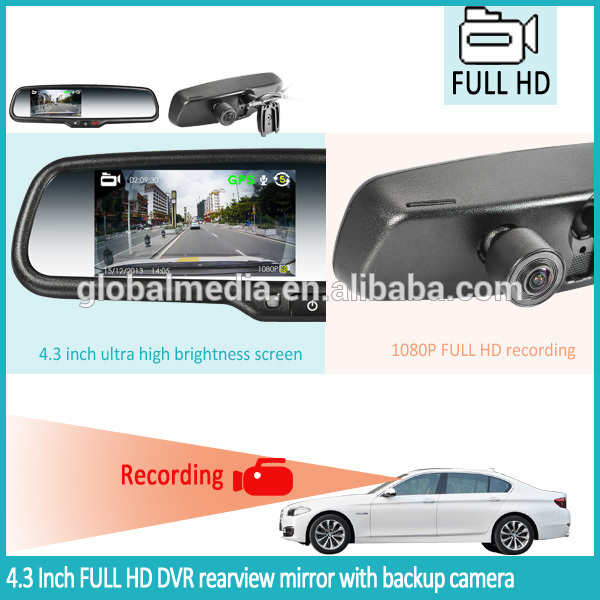

Product name:AUTO DIMMING DVR high digital rear view mirror monitor
Package:White Box(OEM)/Carton Box
car camera:High Definition CCD camera
car model:Any car model
Certification:E-Mark
Display Screen:TFT-LCD Special rearview mirror with bluetooth
Appearance:similar with original car
TV System:PAL/NTSC Auto Switch
Quality level:High class/A grade
original:oem factory in shenzhen
Production Description:
Product Description
Item No. | EV-043LA-1080P |
Item name | 1080P Full HD Dual Camera Mirror DVR |
Screen | 4.3" LCD Screen |
Lens | Front 140 degree,rear 120 degree view angle |
Sensor | 1.3Mega Pixel 1/4 CMOS Sensor,8MP photo pixel |
CPU chip | Ambarella A7-50 |
Video Resolution | Front:1080P/720P, Rear: 480P(VGA) |
Video Format | NTSC/PAL |
Photo Format | JPEG |
Media Storage | External TF card up to 32GB (TF Card is NOT included) |
Microphone | Built in microphone/speaker |
Interface | AV-IN, ,TF Card |
Date setting | yy/mm/dd, hour/min/sec |
Language | Chinese,English,French,German,Italian,Portuguese,Russian,Spanish,Japanese,Korean |
Operating Temp | 0 鈩?/span> ~ +65 鈩?/span> |
Power | DC 12V,2A |
Body Weight | / 1.5kgs |
Gift box size & Weight | 49*28*30.8mm / 1.7kgs |
Package | 1pcs mirror 1pcs wire harness 1pcs cable tie 1pcs user manual 1pcs remote control |
Specification of Camera:
Image device: 1/4-inch colour vc0702
TV system: NTSC
Resolution: 480 TV lines
Electric Shutter: NTSC :720Lines.25Field/sec
Effective pixels: NTSC: 720X 480
Minimum illumination: 0.3Lux
Viewing angle: 170 degrees (diagonal)
S/N ratio: >48dB (AGC-OFF)
Video output: RCA connector, 1.0vp-p, 75ohm
Current consumption: ≤120mA
Power supply: DC8V-12V
Operating temperature: -30 to 65 degrees centigrade, RH95% Max.
Storage temperature: -35 to 70 degrees centigrade, RH95% Max.
Other items: automatic white balance, AGC and BLC
Water-proof: Yes, to IP68 standard
Packaging & Shipping1. Tracking number will be emailed to you once we have shipped your order. If there is any delay, it may be caused by bad weather or custom inspection. If you still can not receive the item within 20 DAYS, pls contact us.
2.We try our best to make you get desired products as soon as possible. In case you receive wrong products due to shipping error, please contact us for exchange or refund. If it's damaged , please refuse to accept and contact us as soon as possible.
3.We are not responsible for wrong or undeliverable address. Please provide us your full address with Telephone number and make sure your shipping address is correct and deliverable.If you need to change your address, please change it in PayPal first before you pay.
Our ServicesOne - stop Services:
1. One-stop services from original design or ideas to finished product.
2. 24 months warranty guarantee for normal use.
3. Any questions on our products or services, please feel free to contact us, we will solve ASAP.
4. If there are any damage or lost caused at our side, we will refund your payment, resend goods or make other compensation.
Company InformationGermid is a global, high technology electronics company that is managed by engineers and others who understand the freedom and discipline that's required to run an entrepreneurial company. We are a unique, profitable company that is vertically integrated in highly automated electronics, camera development and manufacturing.
Our mission:
As a company that specializes in developing and manufacturing automotive rearview mirror, GERMID is dedicated to supplying high quality rearview mirrors with various functions for customers. Every perfect rearview mirror results from the inspiration of the god and hard work of employees, suppliers and customers.
FAQWhat is Auto dimming?
The auto-dimming of our mirror works automatically when you start the engine, and the indicator will light up . The light sensor in the back of the rearview mirror will always detect the ambient light. The auto-dimmingdoesn't work in the broad day for the adequate daylight. However, when night falls and the ambient light is weak, the auto-dimming starts to work and automatically dims to eliminate the glare of rearward-approaching vehicles.
Furthermore, the degree of brightness of the auto-dimming glass depends on the level of the light. The stronger the light from the back of the car is, thedarker the glass is. Hence it protects drivers from becoming dizzy and avoiding car accident.
How does an auto-dimming mirror work?
The auto- dimming mirror from Germid can solve the issue of glare. One the auto-dimming mirror detects high glare, it will automatically reduce the brightness from 63% to 6% within seconds. This can greatly improve the ability of a driver to safely operate the vehicle at night. When the glare disappears the brightness automatically increases to 63% again, giving the driver a clear rear view of the vehicle at all times.
