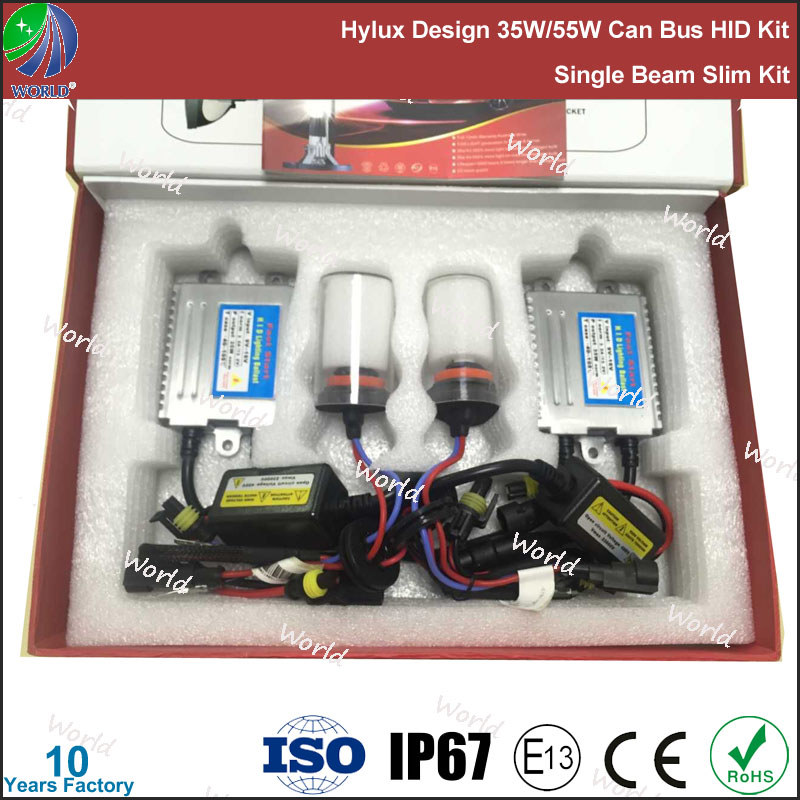

Hylux design can bus hid kit,12V/35W,24V/35W,12V/55W,AC/DC,hid lighting

Product Attribute:

Type:Headlight

Voltage:12V

Lamp Type:HID Xenon

Certification:CE,ROHS

Car Make:all kinds of car models

Place of Origin:Guangdong China (Mainland)

Brand Name:World,OEM

Model Number:World-SBC Kit

Warranty:18 Months

color temperature:3000K-30000K

wattage:35W or 55W

voltage:12V or 24V ,AC or DC

lumen:3500LM

packing:color box

quality:top rank

hid inner tube brand:Phillips

defective rate:within 0.1%

warranty:18months

bulb:single beam/bi-xenon

Production Description:

High quality hid xenon kit:

H1/H3/H4/H7/H8/H9/H10/H11
12V,24V,35W,55W
3000K-12000K

Test Video Links:

hid kit,xenon kit,hid light kit:
Xenon hid all models:

Single series:H1,H3,H3C,H4,H6,H7,H8,H9,H10,H11,H13,880(H27),881,889,9004(HB1),9005(HB3),9006(HB4),9007(HB5),etc

Single+Halogen(High/Low)Series:H4-2,H13-2,9004-2,9007-2

Telescopic(moving,High/Low) series:H4-3,H13-3,9004-3,9007-3

D series:D1R,D1S,D2C,D2R,D2S,D4C,D4R,D4S

Color Temperatures:3000K,4300K,4500K,5100K,6000K,8000K,10000K,12000K,or above

Light colors:golden light,green,pink,red,dark blue,QB,purple etc.

HID parameters:

Starting voltage:23000V

12V/24V,35W/55W available

Color temperature:3000K-12000K or above

Luminous:3500LM

Bulb life time:3000hours

Advantage of World xenon bulb:

1. The burner is made by Philips from Netherlands.It has the best permeability.The tube diameter is 9.1mm/9.0mm,other company's tube diameter is 8.9mm.
2. The tube electrode is made by Sylvania from USA.
3. The purity of mercury reach to 99.999999%.
4. Xenon with high purity and best protection is made by Messers from Germany.
5. The tube atmospheric pressure over 6 atm for increased luminous flux,to protect the electrode and prolong the bulb’s life.
6. This input wire is made by Volkswagen.
7. The bulb voltage range is controlled between:85±10V.However the international standard is 85V±17V.
8. Our product line equipments are imported from South Korea,the most advantaged in China at present.
9. Special research and produce ballast which according to the parameter of bulb.Long lifetime and low defective rate.

World-SB Ballast Technical Data:

1) Input Voltage Range DC9V~32V

2) Starting Voltage DC12.8V

3) Input Current 4.2A

4) Max. In-rush Current 15A

5) Output Power 52W-58W

6) Output voltage AC85V±15V

7) Output Frequency 260Hz~280Hz

8) Efficiency: ≥84%

9) Ignition pulse - Typical peak Voltage 23kV Typ. 1s

10)Cooling method - Natural cooling

11)Input Protection, Under voltage protection at 6V±1V

12)Over voltage protection at 34.5V±1V

13)Input connection-reverse protection

14)Output Protection, Short circuit protection between two outputs

15)Open circuit protection between two outputs

The ballast matches lamps as H1, H3, H4, H4 (H/L), H7, H8, H9, H10, H11, H13, 9004, 9005, 9006, 9007, 880, 881

We offfer 18months warranty for our best quality slim ballast.

The advantage of World-NB ballast:Most Important!!!

Global originate cold and hot without impact start,can prolong the hid bulb life span 2times.

Cold start current:6.2A.

Original fuse in car is 7.5A.But most of ballast in market are higher than this owing to their factory cant control this.Its a hidden danger to original car circuit.

Hot start current3.6A.Very stable electric current keep you safe when you are switching between high light and low light in driving.But some suppliers are up to 10A and not stable enough.

Hot start power35W.Stable hot start power make no damage to xenon bulb.This prolongs xenon bulbs lifetime 1.5 to 2 times.However most of other suppliers are high to 75W.

Cold start power56W.No damage to burner and xenon arc.However many others are up to 105W.

Output voltage:60V/165V.After worked for 2000 to 3000 hours later,Xenon bulb working voltage reach to 115V to 150V.

At that time many ballasts can not provide that high voltage.So xenon bulb can be lighted up again.But our ballast can output more 10 to 15V.

This meands xenon bulb can work more 600 to 1000 hours.Working efficiency:87%.Very close to Hella,Germany(89%).

High efficiency means ballast use most of power for xenon bulbs work and release less heat.

Release less heat means ballast components can work in a good condition.

This is the key why we can control our ballast

World-NB Ballast Technical Data:

Input Voltage Range: DC9V~17V

Typical Operating Voltage:DC12.8V

Typical Input Current:3.2A

Max. Inrush Current:15A

Output Power:33W±2W(Constant Power)

Output voltage:AC85V±15V (Square Pulse, RMS70V~100V)

Output Frequency:260Hz~285Hz

Efficiency: ≥83%, Condition:
Ignition pulse Typical peak Voltage:23kV
Typical duration:1s
Cooling method:Natural cooling
Input Protections:Under voltage protection at 6V±1V
Over voltage protection at 34.5V±1V
Input connection-reverse protection
Output Protections Short circuit protection between two outputs
Open circuit protection between two outputs
Operating temperature -30°C~+ 85°C
Storage temperature -40°C~+105°C

FAQ:

1.After installing HID,it happen to light flashing.

World answer:Due to the battery cell can’t offer enough electricity,it happen to light flashing.Adding special harness can resolving this problem.

2.After installing hid,it happen to astigmatism.

World answer:Due to the ballast offer the electricity imbalance,it happen to astigmatism.Adding resistor harness can resolve this problem.

3.After installing H1 hid,it happen to light flashing.

World answer:Due to the H1 base is very small,it need fix exactly,then it will no lamp flashing problem.

1.We use stand 125degrees high temperature capacitance.Other company use 105degrees capacitance can't stand high temperature.Capacitance is most important component and has many function,like filter,resonance,shunt circuit and so on.

2.Our SB 12V 35W AC ballast has 4 layer circuit board.Other company has only 2 layer for AC ballast.
3.We have 6pcs mosfet on 1 AC 35W ballast.Other company has only 4pcs or less mosfet on it.Mosfet function is control frequency.

3.We use Japan TDK transformer,capacitance and transformer produce resonance step-up.

4.Initial startup without concussion in the global.

5.with silicon gel sleeve on the enamel-insulated wire,To stop the high voltage puncture and avoid the break circuit instance.

6. AMP connector,anti-high temperature,Philips inner tube,put an end to spillage the xenon gas,Japanese Rubycon capacitance,Special material which mostly use for army industrial .it is more than 20 degree working range than the normal capacitor.

7.Hylux design MCU can bus chip can be 99% car models can bus free.

 AC ballast has no positive and negative pole difference.The electron number alternately cycle move,then the pole temperature is low and prolong hid life span.

But for the DC ballast,the electron number is always from positive to negative pole.Then the negative receive the electron number will be much heat,high temperature and perforation.The defective rate of DC ballast is higher than DC ballast.

AC ballast has better and more components than DC ballast.Our AC ballast has 6pcs mosfet and DC ballast has 2pcs mosfet.

Our SB ballast is slim ballast and NB ballast is normal size ballast.Slim ballast is used updated components to save the size,then it is easy to install and shipping coveniently.

Like desktop and laptop,more than more people choose laptop now.
