Product Description
Special 2015 new Design double layer
wall and roof panel roll forming machine
Components of roof tile making machine
No. Name Unit Qty 1 Manual decoiler set 1 2 Main forming machine set 1 3 PLC control system Set 1 4 Hydraulic pump station set 1 5 post cut set 1 6 electric motor set 1 7 output table set 1 Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving roof forming machine production process
No.
Name
Unit
Qty
1
Manual decoiler
set
2
Main forming machine
3

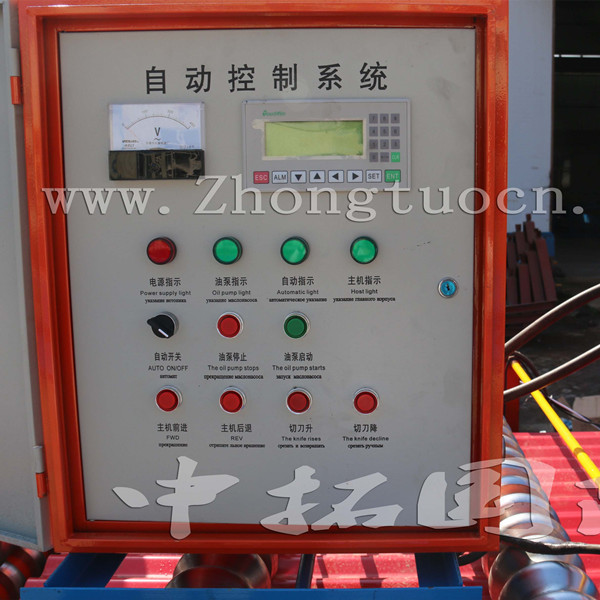

PLC control system
Set
4
Hydraulic pump station
5
post cut
6
electric motor
7
output table
parameters
NO. Items parameters Remark 1 Suitable Material type GI/PPGI/AL Width 1000mm Custom Thickness 0.3-1.0mm Product specifications lengh any lengh lengh tolerance ± 2mm 3 Working Speed 8m-25m/min Standard machine 4 Control System PLC Custom 5 Total Power 5.5-11 KW 6 Total Weight About 5-7.5 T Up to final design
NO.
Items
Remark
Suitable Material
type
GI/PPGI/AL
Width
1000mm
Custom
Thickness
0.3-1.0mm
Product specifications
lengh
any lengh
lengh tolerance
± 2mm
Working Speed
8m-25m/min
Standard machine
Control System
PLC
Total Power
5.5-11 KW
Total Weight
About 5-7.5 T
Up to final design
1.Insalations and training
a.If buyers visit our factory and check the machine, we will teach you how to install an
