Scaffold catwalk panel/scaffold decking roll forming machine
Scaffolding, also
called scaffold or staging, is a temporary
structure used to support a work crew and materials to aid in the
construction, maintenance and repair of buildings, bridges and
all other man made structures. Scaffolding is also used in adapted forms for
formwork and shoring, grandstand seating, concert stages, access/viewing
towers, exhibition stands, ski ramps, half pipes and art projects (quotoed from
wiki). Now the metal ladder scaffolding for concrete slab and masonry

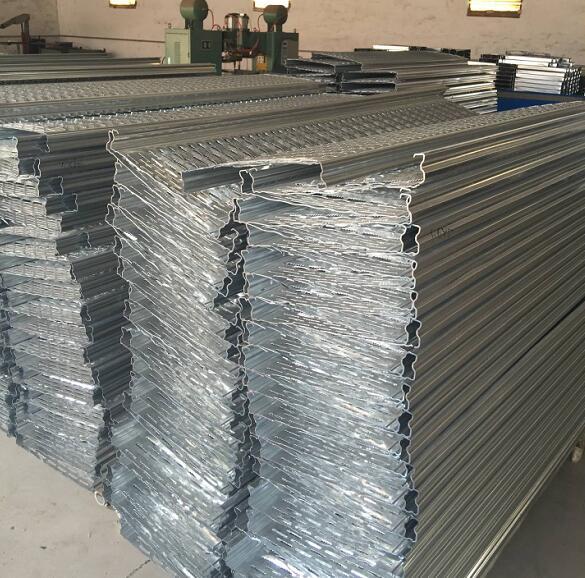

construction, here are some drawing profile and finsihed product pictures for
your reference:
Advantage of our Galvanized layer ringlock scaffolding roll forming machine:
1. Rollforming Mills For Scaffolding Springboards is controlled by PLC control system ,during normal work,it will more security.
2. The basic of Scaffolding Board Making Machine is middle plate,it will be welded and tempering to avoid the distortion.
3.The frame of machine is iron structure,it will tempering.After this process, it will more strong and long life.
4.Transmission structure for the gear box. Each rack has a gear box molding can ensure that equipment over time, high-intensity running, and long service life.
Scaffolding roll forming machine
parameters:
Machine
working process:
Decoile--> leveling--> servo coil feeding--> punching system--> roll forming machine--> sizing and
shearing
Systemà runout table
Main
roll forming machine
1.
Roller station: 18
2. Machine frame: Independ stand
3. Support the Max coil m
4.
Machine frame material: HT200 tempering
5. Lelveing roller: 70mm, material is 40Cr quencing.
6.
Transimission: gearbox
8.
Main machine power: 15kw ZQ500 reduction box and
velocity ration is 31.5
10.
Shaft diameter: 80mm, made by 40Cr quencing at 56
to 58 degree.
11.
Roller material: GCr12, quenching to the whole and
make the hardness to HRC56-62º
12. Motor
explosive-proof grade: ExdIICT4
13. Motor
protection grade: IP54
