Production Description:
Light duty warehouse pillar roll forming machine
Manufactured from customer special drawing profile, this upright pillar simply clip to your existing or new racking without the need for further fixings.
Light duty upright
pillar or warehouse shelf pilllar is adopted for manual access of lighter goods
supporter. It can be matched with plastic containers stored more varieties of
products, widely used in electronic industry and small parts warehouse, laying
special rubber plate anti-static function by changing the spray or powder. It
has the
characteristics of low cost, safety and reliability, simple assembly and
disassembly characters. The light warehouse pillar can be used alone and it can
also be freely spliced into various permutations.

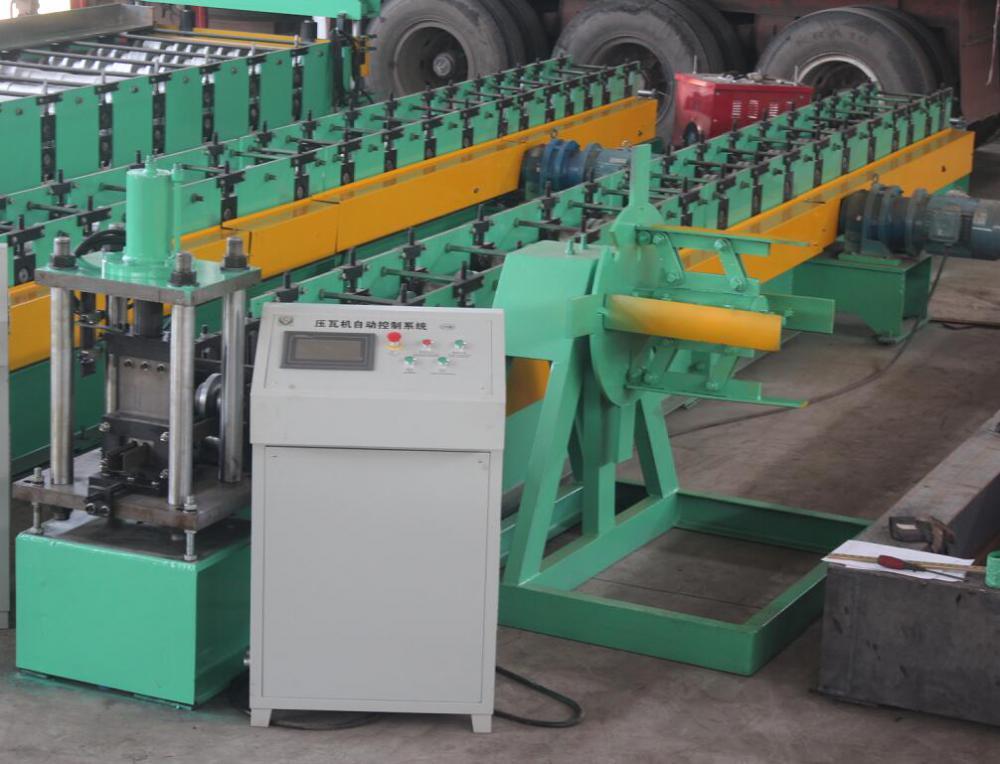

The Light Duty upright pillar roll forming
machine is designed to make the up right pillars in batch fully automatically.
Here is one of the drawing profiles of Light duty upright pillars for your
reference:
For the Light Duty upright pillar roll forming machine
parameters for your refernece:
Main Roll Forming Machine:
1) Number of
rolling stations: 16 rolling stations
2) Shaft diameter:
60mm
3) Shaft material:
45# steel after quenching.
4) Roller
material: 45# steel after 62 to 65 degree quenching
5) Transmission
method: chain
6) Motor Brand:
Chinese famous brand MengNiu
7) Voltage: 380v,
50Hz, 3 phases or customize
8) Machine frame:
Middle plate
9) Machine frame
thickness: 20mm
10) Main power:
7.5kw
Hydraulic Shearing system:
1).Material: blade
and mold material: Cr12 steel with quenched treated 60-62℃
2).Cutting system:
advanced hydraulic drive, automatic cutting after forming, no distorting or wasting,
high level safety factor.
Control system
1). Screen: Delta
screen from Taiwan
2). PLC: Delta
DVP14ES from Taiwan
3). Coder:
ENC-1-1-1T-24 from South Korea
How to use of upright pillars of light duty:
