steel water gutter roll forming production linerSAtwL

Product Attribute:

Applicationt:

tttssstttsss

Production Description:

steel water gutter roll forming production line



Specification





Description

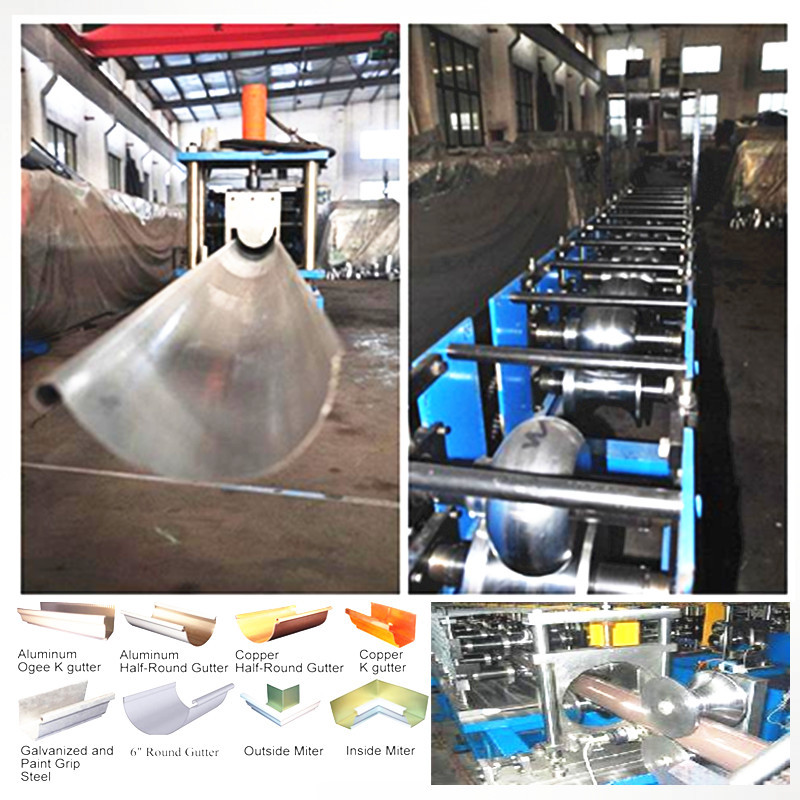

Our gutter roll forming machine mainly consists of uncoiler, roll forming system, cutting equipment, protective guard, hydraulic system, control system and out table. It can make curve for down pipe to meet the requirement of practical engineering projects.







Machine components





Passive uncoiler



Guiding unit



Roll forming machine



Cutting unit



Hydraulic station



PLC control cabinet



Supporter table



Security cover



Elbow machine





Technical process





Passive uncoil- Feeding-Roll forming-Cut to length-Output table-Elbow with pipe





Technical parameters







Items	Specifications
Material Spec	Galvanized steel sheet, color sheet
Thickness of Coil Sheet	0.3 –0.8mm
Main Motor Power	5.5kw
Forming Speed	10-15m/min
Hydraulic Station Power	3kw
Quantity of Stands	18
Hydraulic Pressure	10~12Mpa
Controlling System	Panasonic PLC
Index Error of Length	10m±2mm
Total Weight	7T
Voltage	380V 3 phase 50Hz
