Product Attribute:
Applicationt:
tttssstttsss
Production Description:
High Quality Galvanized Corner Dry Wall Angle Bead Machine

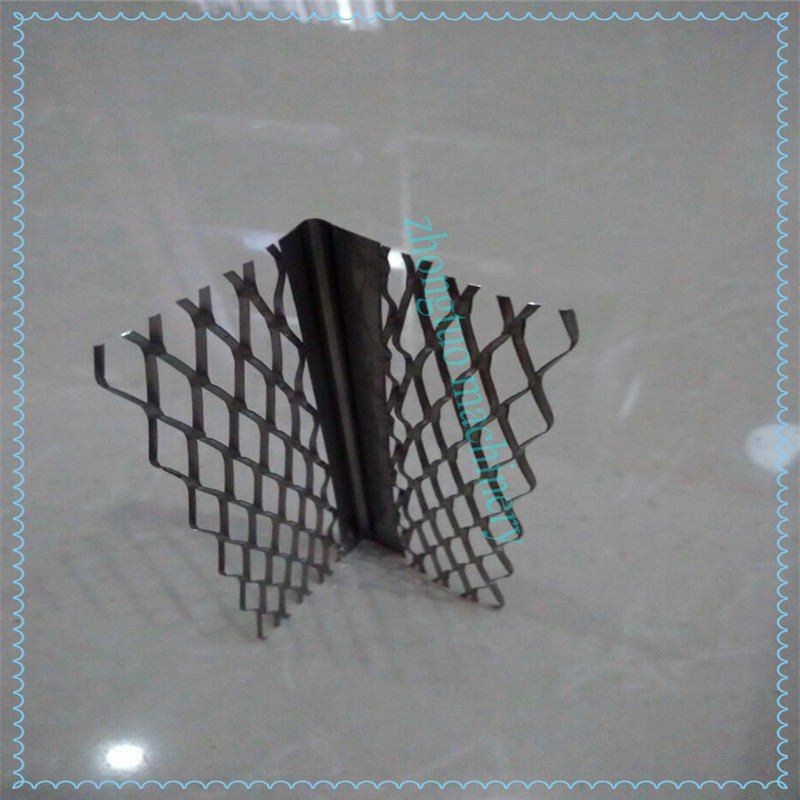

Angle beads are particularly suitable for
using in forming straight edges and exterior corners when plastering for arises
and columns. They're widely regarded as indispensable to plastering operation.
Using appropriate angle beads eliminate the need for fixing and removing timber
battens, thus increase efficiency and quality for plastered columns &
beams. As to High Quality Galvanized Corner Dry Wall Angle Bead Machine is designed to make those angle beads production fully automatic.
Why we called it high quality Galvanized Corner Dry Wall Angle Bead Machine ;
1. it can help you finsih the production fully automatic.
2. It can reach the working speed of 25m/min.
3. It can use more than 10 years.
4.For the punching die could be fixed and repaired when it is not shape.
Punching
machine
Metal Corner Bead For Concrete and plaster board:
Working speed:110-130 time/min
Main power:3kw
Servo coil feeder with PLC control
system
Punching Pressure: 25 Ton
Main
roll forming machine:
Length of the main part: about
3500х800х1400
Weight of main part:3 tons
Voltage : 380V/50HZ3Phase (as customer`s
request)
Roller fixer : Guide column
Frame : middle plate welded
Memorial arch frame type
Frame thickness:20mm
Drive mode: gear
Material of rollers: GCr12MoV
Material of shafts: 45# steel with
tempering
Diameter of shafts: φ40mm
Number of rollers: 9 rollers
Main power: 3 kW
Cycloidal planetary gear speed reducer)
The different sizes can be produced on this
machine
by adjusting the feeding width.
For this machine, here is the machine working video for your reference:
When come to real use:
Galvanized steel: SK-50; SK-25. 2.
Stainless steel: SK-50S; SK-25S. 3. Length (mm): 2500 / 2700(mm). 4. Qty / box:
50 (pcs). 5. In addition to the above-mentioned specification, we offer
customized services, size as customer's demand.
