Production Description:
Drywall channel machine Gypsum Wall channel machine CUL channel making machine
The normal size of the drywall channel is CU 50 75 100. there are holes and H holes on the drywall channel 50 75 100.
These sizes are normal profiles and sizes of the drywall channel.
below are the pictures of the machine:
Component for Light Weight Steel Frame Roll Forming Machine:
1. Decoiler one set
2. main roll forming machine one set
3. cutting and punching part
4. control box one set
5. hydraulic station
Details information for Light Weight Steel Frame Roll Forming Machine:
Decoiler
Usage: It is used to support the steel coil and uncoil it in a turntable way. Passive uncoil pulled by roll forming system
Loading capacity: 1.5T
Uncoiling m
Inner diameter: 450-550mm
Main roll forming machine:
Feeding and leveling will level coil to make sure it is neat clean and straight.
Size: 3800х800х1400mm
Weight : 2.6 tons
Voltage:380V/50HZ 3Phase(as customer`s request)
Roller fixer : Guide column
Frame : middle plate welded Memorial arch frame type
Frame thickness:25mm
Speed: 5-50m/min
Drive mode: gear
Material of rollers: GCr12MoV
Material of shafts: 45# steel with tempering
Diameter of shafts: φ40mm
Number of rollers : 10rollers
Main power: 4kw
The machine picture is for your reference
Processing flow diagram of machine
Manual decoiler→ Feeding material into machine →Roll forming machine →Measure length→Hydraulic cutting →Finished Products

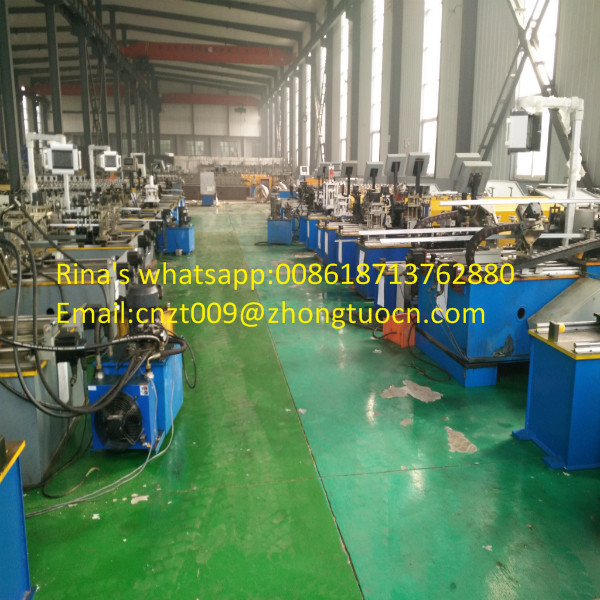

Machine pictures for your reference
1.Technical parameters
|
Configurations
|
manual decoiler, guiding platform, main
machine of roll forming, cutting device, electric motor, hydraulic station,
Delta PLC control system, run out table
|
|
|
|
Material
|
Raw material
|
Galvanized
|
|
Thickness
|
0.3-0.8 mm
|
|
|
|
Manual
decoiler
|
Inner Diameter
|
450-550mm
|
|
Outer Diameter
|
max 1500mm
|
|
Max Coil width
|
500mm
|
|
Capacity
|
3T
|
|
|
|
Main Forming
Machine
|
Forming steps
|
12 rollers
|
|
Shaft diameter
|
40Cr steel with quenched treatment,
precision machined, outer diameter: 40mm
|
|
Design type
|
Guide column
|
|
Machine frame
|
Memorial arch
|
|
roller material
|
bearing steel with quenched treatment
|
|
shaft material
|
45# steel with tempering
|
|
Work speed
|
20-60m/min
|
|
Transport
|
reduction gearbox transmission
|
|
Changing size methods
|
Completely changing the mold linear
system
|
|
Structure
|
independent stand
|
|
Power of main machine
|
7.5 kw
|
|
Type of cutting and punching
|
Hydraulic
|
|
Cutting tolerance
|
±1mm
|
|
Blade and punching material
|
GCr12MoV quenching treatment 58-60°
|
|
Cutter quantity
|
1 set
|
|
Working pressure
|
20MPA
|
|
Cutting system
|
Hydraulic servo tracking cutting
|
the machine is with servo tracking
cutting, the cutting knife can move automaticly with the speed of the
machine. so that, the tracking cutting can keep same speed with the main
forming speed, and cut the finished products without any stopping.
|
|
2. Automatic tracking cutting
|
No.
|
Name
|
Size and mode
|
number
|
note
|
|
1
|
base frame
|
100*100*6
|
1
|
|
|
2
|
Control station
|
|
1
|
Include switch button
|
|
3
|
Hydraulic station
|
4kw
|
1
|
|
|
4
|
Oil pump
|
63*80*80
|
1
|
|
|
5
|
Cooling device
|
35Hz
|
1
|
|
|
6
|
Sensor
|
Npu
|
2
|
|
|
7
|
Encoder
|
600
|
1
|
Omron
|
|
8
|
tachometric wheel
|
|
2
