Product Attribute:
Supply Ability:10000 Piece/Pieces per Week
Production Description:

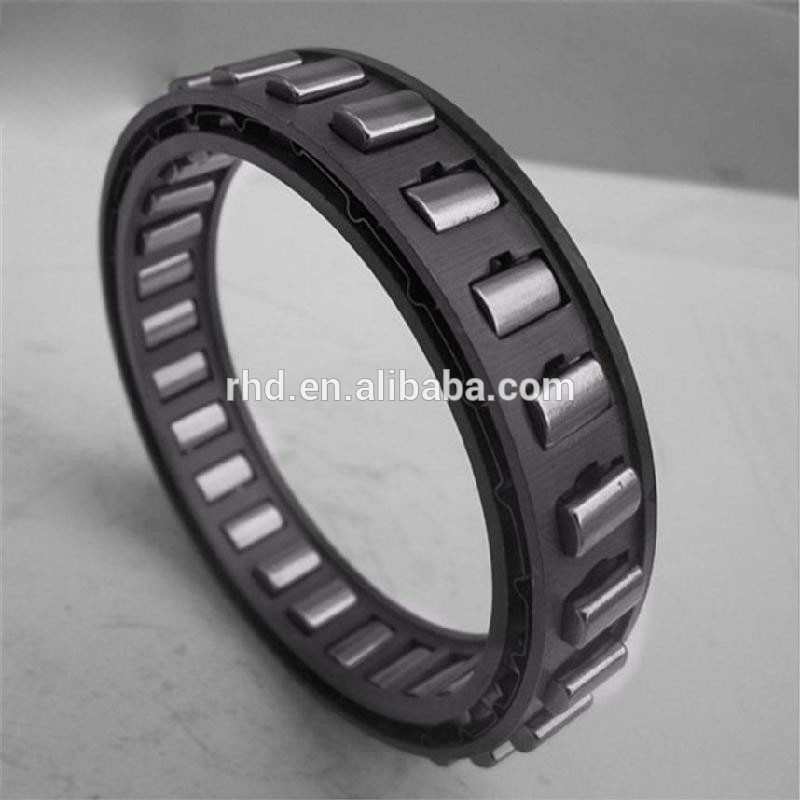

X-133639 One Way Bearing Sprags bearing for Vehicle Tools :
Description of the X type clutch bearing :
Type X is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing supp-ort for axial and radial loads, lubrication and sealing. The X type version-N accepts all types of lubricants currently used in the power transmission
equipement.The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width "e", without any recess, to ensure the freewheel functions correctly.
Alternatively, races can be made in case hardened steel shafts, or housings, to the specification below. Surface hardness of the finished part should be HRC 60 to 62, for a depth of 0, 6 mm minimum.Core hardness to be HRC35 to 45. Surface roughness not to exceed 22CLA. Maximum taper between races: 0, 007 mm for 25 mm width.
Advantage of clutch bearing
sometime called the (Throw-out bearing)As its name implies, this is the bearing that releases the clutch. It is often referred to as a "throw-out" bearing. They come on a number of different style carriers. The carriers, in some cases, vary considerably with the particular engine. Because the release bearing only works when the clutch is being released it usually lasts quite a long time. However, improper linkage adjustment or riding the clutch with your foot when driving can wear the bearing prematurely. Normally there should be a minimum of 1/16" clearance between the face of the bearing and the three release fingers or diaphragm spring of the pressure plate when the clutch is engaged. This fact is important and will be discussed further when we get to the part about setting up the clutch linkage.
Parameters of series One Way Clutch bearing :
|
Type |
Inside shaft Diameter |
Outside Shaft Diameter |
Maximum Width |
Rated Drag Torque |
|
Di |
Sprag Space |
De |
Sprag Space |
B |
N.M (kgf.m) |
|
x-135006 |
54.572 |
+0.008-0.005 |
71.211 |
±0.013 |
20.5 |
799 (81.5) |
|
BW-13231 |
54.765 |
- |
71.427 |
- |
13.5 |
402 (41.0) |
|
BW-13214 |
15.9 |
363 (37.0) |
|
BW-13167 |
15.9 |
569 (58.0) |
|
BW-13209 |
57.760 |
- |
74.427 |
- |
13.5 |
554 (56.5) |
|
BWC-13239B |
15.9 |
711 (72.5) |
|
BW-13238 |
21.0 |
1050 (107) |
|
X-133401 |
59.538 |
- |
76.200 |
- |
25.4 |
1350 (138) |
|
X-135402C |
68.600 |
- |
85.262 |
- |
11.7 |
(56.5) |
|
BW-13243 |
72.217 |
- |
88.882 |
-
|
13.5 |
637 (65.0) |
|
BWC-13168 |
21.0 |
1510 (154) |
|
BWC-13229 |
21.6 |
1325 (135) |
|
BW-13255 |
26.7 |
1920 (196) |
|
X-133614C |
83.596 |
±0.013 |
102.555 |
- |
25.4 |
3040 (310) |
|
X-133402 |
85.776 |
- |
104.775 |
- |
25.4 |
3090 (315) |
|
BWC-13251 |
103.231 |
- |
119.944 |
- |
15.4 |
789 (80.5) |
|
BWC-13261 |
15.4 |
1580 (161) |
|
X-135705 |
137.000 |
- |
156.000 |
- |
21.0 |
(480) |
|
BWC-13236 |
117.391 |
- |
136.390 |
- |
15.9 |
(204) |
|
X-133639 |
103.231 |
- |
122.230 |
- |
25.4 |
4410 (450) |
|
X-133403 |
123.881 |
- |
142.880 |
- |
25.4 |
5740 (585) |
We also supply other Auto Spare Parts
-Wheel Bearings
-Wheel Hub Assemblies
-Clutch Release Bearings
-Truck Wheel Bearings
Packing details
1.tube+outer carton
2.polybag+single box+carton
3.polybag+single box+wooden case
4.polybag+wooden case
5.As your requirement
Shipping Methods
1. DHL,UPS,TNT,Fedex,Singapore EMS etc.
2. By sea or as your requirement
Payment Term:
1.L/C at sight
2.Telegraphic Transfer
3.Paypal
4.Western Union
5 As your requirement
Our Factory:
Jinan Ruihode Bearing Co.,ltd is a professional bearing manufacturer. We are engaged in the production of quality bearings, such as NSK,NTN, NACHI, KOYO and IKO bearings. We can supply various kinds of bearings according to customers' requirements. Our products enjoy great popularity in the worldwide markets, like Asia, Europe and the USA.
Our products include Taper roller bearings, Deep groove ball bearings, cylindrical roller bearings, Spherical roller bearings, Thrust ball bearings, Spherical thrust roller bearings and Excavator bearings. Products are extensively used in machinery, excavator, hydropower, engineering, railways, automobiles, electric power, textiles, metallurgy, mine, papermaking, sports equipment and precision instruments
Company inspecter will check the products one by one before we sent it out, and we also follow customers' special requests to control the quality. We have got little feedback of quality issue from customers these years. So please rest assure
Why Choose Jinan Ruihode Bearing Co.,ltd
1. We have our own factory,
2.Good material used and Promise working life one year at least.
3. Professional R&D and 100% finished product check before shipment
4. ISO 9001:2000
5. 24 hours aftersale service
FAQ
this price is just for reference , please contact staff to inquiry the specfic price !
