NTN Forklift mast bearings MG315DD size 75x180x45mm

Product Attribute:

Supply Ability:10000 Piece/Pieces per Month

Delivery Details:Shipped in 3 days after payment

Production Description:

NTN Forklift mast guide bearings MG315DD size 75x180x45mm



Mast guide bearing Description
Mast guide bearings are designed for heavy load carrying capacities in forklift applications. Heavy radial and thrust loads are experienced in the mast of a forklift. Mast guide bearings have heavy section outer rings, which act as rollers and guides for the carriage in the mast channels. This is designed to fit the contour of the mast channel, and helps to prevent misalignment. It also facilitates lifting and lowering of the mast. All mast guide bearings are lubricated and sealed to prevent contamination from getting into the roller elements and raceways.

Relative Mast guide bearing Models

Part number	d	D	b	B	R	Cr.	Cor.	Weight
	mm	mm	mm	mm	mm	dynamic	static	lbs.
MG205-1E	12.6	57	20.5	26.95	1	16100	11000	0.75
MG205-2E	13	52	18	24	2	16100	11000	0.75
MG305-7E	17	72.8	33.6	25	3	27000	18800	1.45
MG305DDTY	25	62	19.5	18	3	43690	45620	0.75
MG205FF	25	65	15	21	6	14020	7880	0.75
MG205FFX	25	67	15	26	4.5	14020	7880	0.85
MG305DDY	25	71	17	21	2	22390	11490	0.9
MG305DDH	25	72	28	28	2	61240	65950	1.45
MG305DD	25	76.2	17	25.4	8.38	20510	11120	1.25
MG305DDB	25	76.2	17	25.4	8.38	20510	11120	1.25
MG305DDE	25	79.55	16.96	23.5	6	20510	11120	1.4
MG305DDX	25	80	17	22	2.5	22390	11490	1.35
MG305DDZ	25	80	15	22	2.5	22390	11490	1.45
MG305DDR	25.4	63.5	31.75	31.75	2	61240	65950	1.15
MG305DDA	25.4	74.6	17	25.4	8.38	20510	11120	1.25
MG28mm-1	28	77.2	15.2/22.7	27	5	54970	62890	1.65
MG306DDCR	30	69	25.4	25.4	1.5	47620	62930	1.4
MG306DDL11	30	75	10.5	24	4	57110	67250	1.4
MG306DDL1	30	75.2	16	24	4	57110	67100	1.3
MG306DDL6	30	75.3	23.5	24	6	21000	16000	1.25
MG5206AC-1	30	75.5	23.81	28.5	2	30000	21200	3.95
MG306DDL7	30	75.6	23.5	24	6	21000	16000	1.25
MG306DDL2	30	75.7	16	24	4	57110	67100	1.3
MG306DDL3	30	75.9	16	24	4	57110	67100	1.35
MG306DDL8	30	75.9	23.5	24	6	21000	16000	1.3
MG306DDL12	30	76	10.5	24	4	57110	67250	1.45
MG306DDL4	30	76.2	16	24	4	57110	67100	1.35
MG206FFE	30	76.2	16	28.5	3	27360	18860	1.25
MG306TA-1	30	77.6	19	28	4.5	28160	15840	1.4
MG206FFH	30	79.5	16.59	28.5	7	19460	11310	1.5
MG206FFZ	30	79.7	16.59	28.5	4.4	27360	18860	1.6
MG206FFZA	30	80.49	16.58	28.5	4.83	27360	18860	1.65
MG206FFU	30	81	16.59	29	8.5	19460	11310	1.7
MG206FFZB	30	81.25	16.58	28.5	4.83	27360	18860	1.7
MG206FFA	30	81.28	19.58	25.4	chamfer	19460	11310	1.45
MG206FFM	30	81.28	19.58	25.4	chamfer	27360	18860	1.3
MG206FFUA	30	81.63	16.58	28.5	6	27360	18860	1.5
MG206FFX	30	81.8	16	27	3	27360	18860	1.55
MG206FFAB	30	82.11	19.58	25.4	chamfer	19460	11310	1.45
MG306DDB	30	82.55	19	26.97	9	19460	11310	1.45
MG206FFK	30	86.36	16.58	28.5	6.35	27360	18860	1.95
MG206FFW	30	86.6	16.59	28.5	5.5	27360	18860	1.95
MG206FFP	30	88	16.59	29	6	19460	11310	2.15
MG206FFPA	30	88.5	16.5	29	5.5	27360	18860	2.2
MG306DD	30	88.9	19	25.4	9	28250	15980	1.8
MG206FFPB	30	89	16.5	29	5.5	27360	18860	2.2
MG306FFT	30	91.6	19	25	5	28160	15840	1.95
MG307/34DDL17	34	105	9	34	6	95640	115300	3.85
MG307/34DDL18	34	105.7	9	34	6	95640	115300	3.85
MG307RB-1	35	78	21	23	chamfer	51440	30840	1.35
MG207FFA	35	81.8	17	27	3	25720	15420	1.3
MG207FFWA	35	81.8	20	31.2	8	38930	26780	1.55
MG207FFWB	35	82.4	20	31	8	38930	26780	1.5
MG207FFJ	35	91.24	20	31.8	chamfer	38930	26780	1.9
MG207FFH	35	91.24	21	31.8	chamfer	30530	25490	2
MG207FFJA	35	91.6	21	31.7	8	30530	25490	2.15
MG207FFU	35	91.8	20	31.27	8	38930	26780	2.25
MG207FFUE	35	92.2	20	31.27	8	38930	26780	2.15
MG207FFJB	35	92.7	20	31.7	8	25720	15420	2.2
MG207FFUH	35	93	20	31.27	8	38930	26780	2.25
MG307FFW	35	93.2	21	28	7	33540	19230	1.95
MG207FFJC	35	93.4	20	31.7	8	38930	26780	2.3
MG307FFN13	35	94	21	28	6.5	52640	34530	2.05
MG307FFWU	35	94.3	21/25	28	7	33540	19230	2.25
MG307FFWB	35	94.4	21	28	7	33540	19230	2.15
MG207FFBN-1	35	94.5	17	25	7	25720	15420	2.05
MG307FFK	35	94.61	21	25.4	10	33540	19230	3.65
MG307FFWX	35	95	21	28	7	33360	19230	2.1
MG307FFCL5	35	95.38	21	25.3	8	33360	19230	1.95
MG207FFBN-2	35	95.65	17	25	7	25720	15420	2.05
MG307FFTT-S	35	95.65	21	25	5	33360	19230	2.1
MG307FFWK	35	95.7	21	28	7	33540	19230	2.2
MG307T-15	35	95.7	21	25	5	33400	19300	2.1
MG307FFTT	35	96.1	21	25	5	33360	19230	2.1
MG307FFTT-L	35	96.67	21	25	5	33360	19230	2.1
MG307FFN8	35	97	21	28	6	33540	19230	2.3
MG307FFN-14	35	97	21	28	6	33540	19230	2.3
MG307FFN17	35	97.5	21	28	6	33540	19230	2.35
MG307FFN18	35	98	21	28	6	33540	19230	2.4
MG307FFD-6	35	98.5	21	29	8	33540	19230	2.45
MG307FFD-7	35	99	21	29	8	33540	19230	2.45
MG307FFD-8	35	99.5	21	29	8	33540	19230	2.45
MG207FFQB	35	100.35	20	30.15	chamfer	38930	26780	2.65
MG207FFM	35	100.35	20	28.45	chamfer	38930	26780	2.45
MG207HH3	35	100.45	20	28	5	38930	26780	2.45
MG307FFB	35	101	21	31.8	3	33540	19230	2.9
MG307DD-13	35	101.35	21	28.58	chamfer	33540	19230	2.6
MG37-1T	35	101.42	21	28.58	9.5	33540	19230	2.6
MG37-1T-MA	35	101.42	21	28.58	9.5	52640	34530	2.7
MG307FF29	35	101.42	21	28.58	9.5	33540	19230	2.6
MG307FFP	35	101.34	21	28.75	9.5	33540	19230	2.65
MG307FFZ	35	101.42	21	28.75	9.5	52640	34530	2.65
MG307FFA	35	101.6	21	28.5	9.5	33540	19230	2.65
MG307FFCL7	35	101.8	28.85	27	3.7	33360	19230	2.75
MG307FFN4	35	102	21	28	6	33360	19230	2.7
MG307FFTA	35	102	21	25.3	4	33540	19230	2.5
MG307FFN5	35	102.5	21	28	6	33360	19230	2.7
MG307FFTB	35	102.5	21	25.3	4	33540	19230	2.55
MG307FFN6	35	103	21	28	6	33360	19230	2.85
MG307FFTC	35	103	21	25.3	4	33540	19230	2.6
MG307FFN7	35	105	21	28	6	33540	19230	2.9
MG307FFN-9	35	105.5	21	28	6	33540	19230	2.95
MG307KN-1	35	105.85	21	25	8	33540	19230	2.75
MG307FFN-1	35	106	21	28	6	33540	19230	2.8
MG307FFAC	35	106.4	21	25	5	33540	19230	2.8
MG307KN-2	35	106.85	21	25	8	33540	19230	2.8
MG307FFAB	35	107.8	21	25	5	33540	19230	2.9
MG307KK1	35	107.8	21	31	6.5	33540	19230	3.35
MG307KK2	35	108.3	21	31	6.5	33540	19230	3.45
MG307KK3	35	108.8	21	31	6.5	33540	19230	3.5
MG307FFN1	35	109	21	28	6	33540	19230	3.3
MG307FFN2	35	109.5	21	28	6	33540	19230	3.3
MG307FFN3	35	110	21	28	6	33540	19230	3.35
MG207FFK	35	110.1	21	30.1	chamfer	38930	26780	1.9
MG207FFQ	35	110.8	20	30.1	chamfer	38930	26780	3.55
MG207FFQA	35	110.9	20	30	8	38930	26780	3.65
MG207FFQJ	35	111.1	20	30.15	8	38930	26780	3.8
MG207FFQM	35	111.5	20	30.15	8	38930	26780	3.85
MG207FFQR	35	112.1	20	30.15	8	38930	26780	3.9
MG307FFKA	35	114.5	21/25	28	7	33540	19230	3.8
MG307T-13	35	114.6	21	28	7	33540	19230	3.75
MG307FFKB	35	115.1	21/25	28	7	33540	19230	3.8
MG207HH1	35	126.3	20	30.1	chamfer	38930	26780	2
MG207HH2	35	126.25	20	27.9	chamfer	38930	26780	4.8
MG306/36DDL15	36	89.5	9	29	6	75680	93600	2.35
MG306/36DDL16	36	90.5	9	29	6	75680	93600	2.4
MG308DDR-1	40	75.6	22	25.4	2.5	56280	38910	1
MG308DDL-7	40	89.9	23.8	29	6	46100	79800	2.15
MG308DDL1	40	89.9	28.77	29	6.35	33980	25740	2
MG308DDL-8	40	90.2	23.8	29	6	46100	79800	2.15
MG308DDL2	40	90.2	28.77	29	6.35	33980	25740	2
MG308DDL-9	40	90.5	23.8	29	6	46100	79800	2.15
MG308DDL3	40	90.5	28.77	29	6.35	33980	25740	2
MG308DDL-10	40	90.8	23.8	29	6	46100	79800	2.15
MG208FFH	40	95	21	28.5	8	31900	26210	2.05
MG308DDM	40	98.9	23	27.11	7	40760	24020	2.15
MG308DDM4	40	99	23	30	7	40760	24020	2.25
MG308DDM1	40	99.9	23	27.11	7	40760	24020	2.25
MG308DDM5	40	100	23	30	7	40760	24020	2.3
MG308T-15	40	100	23	32	2	40760	24020	2.3
MG208FFA	40	100.5	19.5	25.4	chamfer	42650	33070	2
MG308DDM2	40	101	23	27.11	7	40760	24020	2.25
MG308FFX	40	101.2	23	28.4	9	40760	24020	2.35
MG208FFK	40	101.3	21	28.5	7	42650	33070	2.5
MG208FFAB	40	101.6	19.5	25.4	chamfer	42650	33070	2.1
MG308FFB	40	101.6	23	28.4	10	40760	24020	2.35
MG308FFH	40	101.6	22.37	28.4	8	40760	24020	2.3
MG308DDM3	40	101.9	23	27.11	7	40760	24020	2.3

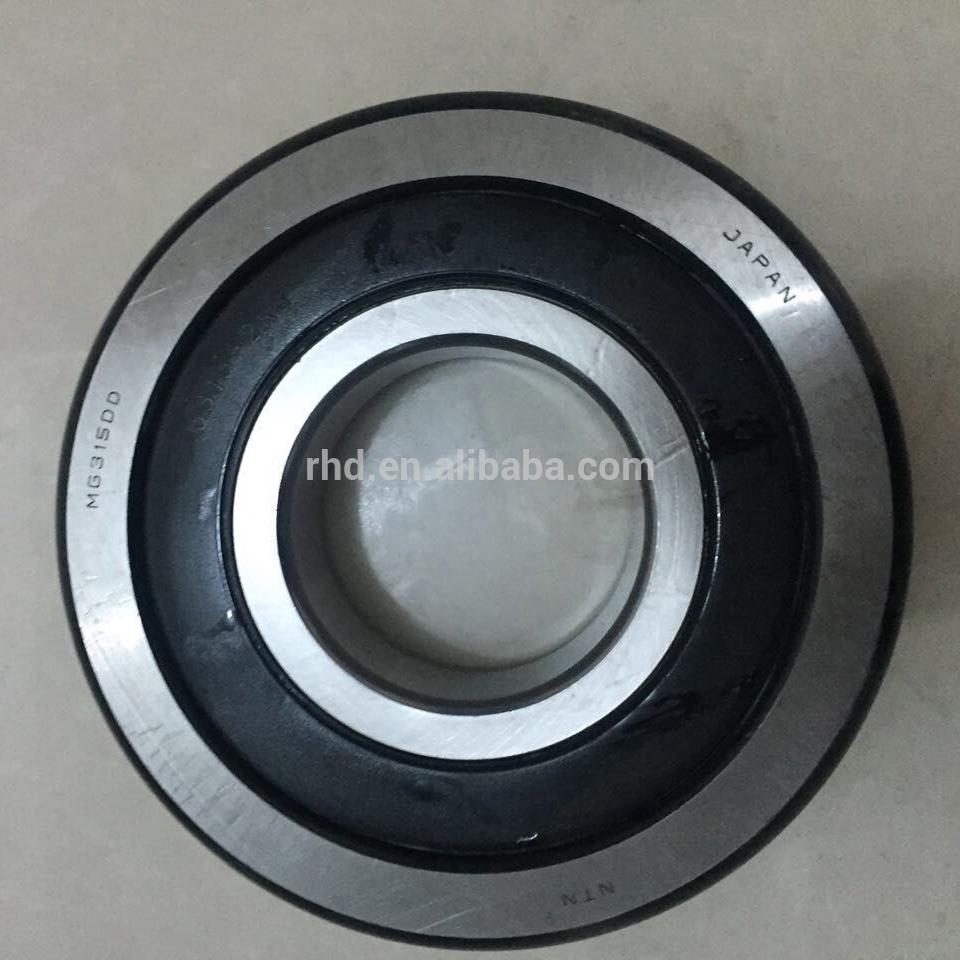

Mast guide bearings MG315DD photos



Company Information Jinan Ruihode Bearing Co., Ltd.is a professional bearing manufacturer. We are engaged in producing high quality bearings. We can supply various kinds of bearings according to customers' requirements. Our products enjoy great popularity in the worldwide markets Asia, Europe and USA and so on.

Our products includ Deep groove ball bearings, Angular contact ball bearing, Thrust ball bearing, Taper roller bearings,  Cylindrical roller bearings, Spherical roller bearings, Thrust roller bearings. We also supply special linear bearing, ceramic bearing, plastic bbearings, textile bearing rotor bearing complete, excavator bearing and so on.

Products are extensively used in machinery, excavator, hydropower, engineering, railways, automobiles, electric power, textiles, metallurgy, mine, papermaking, sports equipment and precision instruments.



Our Advantage

1. More than ten years Bearing exporting experiences.
2. OEM and non-standard Bearing Reqirement acceptable.

3. within 24 hours delivery after deposit or full payment for most Bearing Items

4. All products, we provide our customer one year warranty.
