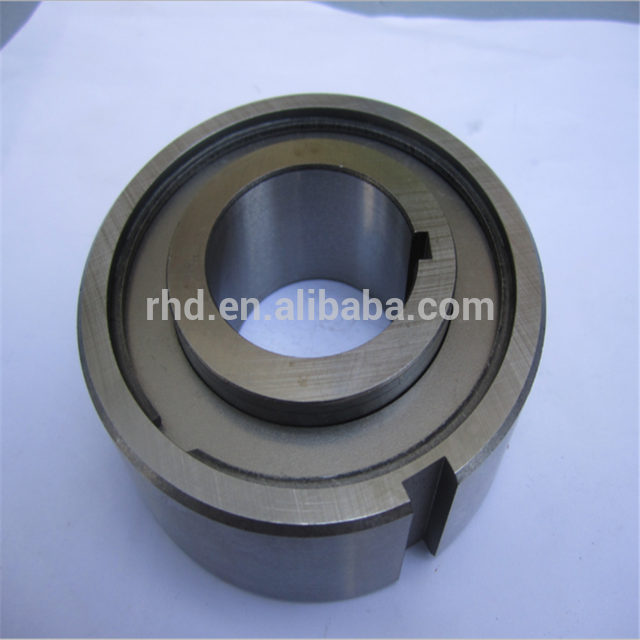

One Way Clutch Bearing CKA60x24-20 20x60x24mm

Product Attribute:

Supply Ability:10000 Piece/Pieces per Month

Delivery Details:Shipped in 3 days after payment

Production Description:

One Way Clutch Bearing CKA60x24-20 20x60x24mm





One way clutch bearing Description

CKA60x24-20 One Way Clutch Bearing ONE WAY BEARING DESIGN FEATURES
- Torque can be transmitted by either the housing or the shaft.
- Torque is positively transmitted by rollers that wedge against interior ramps.
- Transition from free motion to lock occurs with minimal backlash or lost motion.
- Available as clutch-only or as a clutch and bearing assembly.
- Clutch-only units should be used with external radial support to hold the shaft and housing.



ONE WAY BEARING APPLICATIONS
- Paper moving for copiers, fax machines, paper towel dispensers, etc.
- Exercise equipment
- Appliances
- Two-speed gearboxes
- Rack indexing drives
- Converters, non-return devices and transcendental clutches.
- Fishing Reels, RC Cars, RC Helis, RC Engines


One way clutch bearing relative series





Model	Nominal torqueTn(N·m)	Beyond the limit speed n(r/min)	outer			inner			Weight (kg)
			D (h7)	Keyway(b×t)	L	d (H7)	Keyway (b×t)	L1
CKA50×24-10	31.5	2500	50	3×1.8	22	10	3×1.4	24	0.24
CKA50×24-12	31.5	2500	50	3×1.8	22	12	3×1.4	24	0.24
CKA52×24-16	31.5	2250	52	5×1.9	22	16	3×1.4	24	0.27
CKA55×24-18	50	2250	55	4×2.5	22	18	4×1.8	24	0.28
CKA60×22-19	63	2000	60	6×3.5	22	19	6×2.8	22	0.3
CKA60×24-20	63	2000	60	6×3.5	22	20	6×2.8	24	0.33
CKA63×26-24	100	1800	63	6×3.5	24	24	6×2.8	24	0.37
CKA63×26-25	100	1800	63	6×3.5	24	25	6×2.8	26	0.37
CKA63×32-25	140	1800	63	6×3.5	30	25	6×2.8	32	0.48
CKA65×26-24	100	1800	65	6×3.5	24	24	6×2.8	26	0.38
CKA70×32-12	150	1500	70	8×4.0	30	12	3×1.4	32	0.67
CKA70×24-20	150	1500	70	6×3.5	22	20	6×2.8	24	0.62
CKA70×32-25	150	1500	70	8×4.0	30	25	8×3.3	32	0.63
CKA70×32-28	180	1500	70	8×4.0	30	28	8×3.3	32	0.6
CKA72×27-25	180	1500	72	6×3.5 L=14	20	25	8×3.3	27	0.54
CKA75×40-25	180	1500	75	8×4.0	30	25	8×3.3	40	0.79
CKA80×32-22	200	1500	80	8×4.0	30	22	6×2.8	32	1.29
CKA80×32-25	200	1500	80	8×4.0	32	25	8×3.3	32	0.9
CKA80×26-30	200	1500	80	8×4.0	26	30	8×3.3	26	0.73
CKA80×32-30	200	1500	80	8×4.0	30	30	8×3.3	32	0.87
CKA80×31-35	200	1500	80	12×4	31	35	10×2.5	31	0.75
CKA85×28-30	200	1500	85	5×3.0  L=14	20	30	8×3.3	28	0.83
CKA90×37-25	200	1500	90	8×4.0	37	25	8×3.3	37	1
CKA100×34-28	315	1250	100	10×5	32	28	8×4.3	34	1.15
CKA100×34-32	315	1250	100	10×5	32	32	10×3.3	34	1.25
CKA100×34-35	315	1250	100	10×5	32	35	10×3.3	34	1.34
CKA100×34-38	315	1250	100	10×5	32	38	10×3.3	34	1.28
CKA100×34-40	315	1250	100	10×5   L=28	32	40	10×3.3	34	1.2
CKA100×67-40	315	1250	100	8×4.0  L=20	25	40	10×3.6	67	1.46
CKA100×31.5-45	315	1250	100	2-8×4	31.5	45	8×3.3	31.5	1.54
CKA105×35-30	315	1250	105	10×5   L=16	20	30	8×3.3	35	1.55
CKA105×34-35	315	1250	105	10×5   L=26	32	35	10×3.3	34	1.55
CKA105×35-35	315	1250	105	6×3.5	25	35	8×3.3	35	1.56
CKA110×34-30	400	1000	110	10×5	32	30	8×3.3	34	1.82
CKA110×34-35	400	1000	110	10×5	32	35	10×3.3	34	1.82
CKA110×34-38	400	1000	110	10×5	32	38	10×3.3	34	1.67
CKA110×34-40	400	1000	110	10×5	32	40	10×3.3	34	1.91
CKA125×38-50	500	800	125	14×5.5	36	50	14×3.8	38	2.21
CKA130×52-38	500	800	130	12×5.0	50	38	12×3.3	52	3.14
CKA130×55-40	500	800	130	8×4.0	35	40	12×3.3	55	2.62
CKA130×38-45	500	800	130	14×5.5	36	45	14×3.8	38	4.31
CKA130×38-50	500	800	130	14×5.5	36	50	14×3.8	38	3.02
CKA135×38-60	600	800	135	14×5.5	36	60	18×4.4	38	2.65
CKA136×52-35	800	800	136	8-φ9	50	35	10×3.3	52	4.5
CKA136×52-45	800	800	136	6-M8	52	45	14×3.8	52	4.32
CKA140×55-50	1250	800	140	16×6.0	53	50	16×4.3	55	5.1
CKA140×38-60	1000	800	140	14×5.5	36	60	14×3.0	38	2.74
CKA145×34-45	1000	800	145	6-M10	34	45	12×3.8	34	3.35
CKA160×75-50	1500	800	160	6-M8	72	50	14×3.8	75	7.08
CKA160×55-55	2000	800	160	18×7.0	53	55	16×4.3	55	6.96
CKA160×35-70	1500	800	160	10×5.0	35	70	8×3.3	35	3.46
CKA170×55-60	2240	800	170	18×7.0	52	60	18×4.4	55	7.8
CKA170×55-65	2240	800	170	18×7.0	52	65	18×4.4	55	7.61
CKA180×52-65	2000	800	180	6-M8	52	65	18×4.4	52	7.35
CKA180×55-65	2500	800	180	18×7.0	52	65	18×4.4	55	8.69
CKA190×38-85	2500	800	190	14×5.0	36	85	14×3.8	38	5.5
CKA200×55-65	2800	800	200	20×7.5	53	65	20×3.9	55	11.02
CKA210×88-50	4000	800	210	6-M10	85	50	14×3.8	88	18.52
CKA210×85-75	4000	800	210	6-φ13	70	75	20×4.9	70	14.25
CKA215×70-75	4500	600	215	6-M12	70	75	20×4.4	70	15



Advantage of clutch bearing

sometime called the (Throw-out bearing)As its name implies, this is the bearing that releases the clutch. It is often referred to as a "throw-out" bearing. They come on a number of different style carriers. The carriers, in some cases, vary considerably with the particular engine. Because the release bearing only works when the clutch is being released it usually lasts quite a long time. However, improper linkage adjustment or riding the clutch with your foot when driving can wear the bearing prematurely. Normally there should be a minimum of 1/16" clearance between the face of the bearing and the three release fingers or diaphragm spring of the pressure plate when the clutch is engaged. This fact is important and will be discussed further when we get to the part about setting up the clutch linkage.
