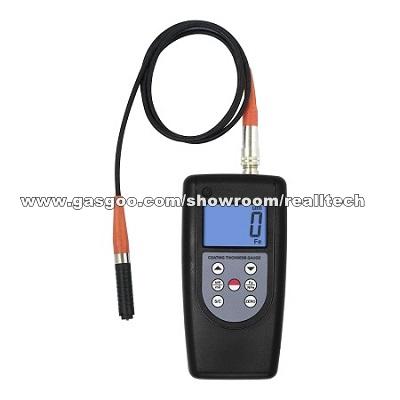

Coating Thickness Gauge CM-1210A CM-1210B

Coating Thickness Gauge CM-1210A CM-1210B

Application:  Acura, audi, AIANTU, ...

Market Type:  After Market

Samples:  Not Available

Place of origin:  China

Price Terms:  EXW

Delivery Port:  Qingdao

Payment Terms:  Others

Minimum Order:  1Unit/Units

Product Attribute:

Applicationt:

Acura, audi, AIANTU, Arash, Baolong, BMW, BYD, BAW, BISU, Brabus, cadillac, Chery, Citroen, Caterham, COWIN, Dadi, Dodge, Dacia, DMC, Ferrari, Foton, FAW, FJMOTOR, Geely, Great wall, GLM, Hafei, Hongqi, Hummer, Hafei, HAVAL, HIGER, HUASONG, Infiniti, Jaguar, JMC, JOYLONG, Kia, KIING LONG, KTM, Lamborghini, Lexus, LIFAN, LANDWIND, LIEBAO, LUXGEN, Maserati, Mercedes Benz, Misubishi, Maple, MINGJUN, Nissan, NISSAN, OPEL, Pagani, Polarsun Automobile, QOROS, Renault, RELY, Rinspeed, SAAB, Skoda, Spyker, Suzuki, SCEO, SGMW, Tianma, Toyota, Tesla, TIANQI, volkswagen, volvo, VW, VAUXHALL, Victory, Wanfeng, Wuling, WEICHAI, WEY, WIESMANN, WMGTA, Xiali, Ycaco, YEMA, YOUXIA, Zhonghua, Zhongxing, Zotye, Zastava, ZD, Zenvo

Production Description:

Coating Thickness Gauge CM-1210A
1.Spec:
The F probes measure the thickness of non-magnetic materials on magnetic materials. The N probes measure the thickness of non-conductive coatings on non-magnetic metals.
2.Features:
* Two measuring methods: magnetic induction (F) and eddy current (N).
* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.).
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Automatic memory of calibration value,and automatic recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
* Separate Type can provide several type probe, measure can be more flexibility.
3.Specifications:
Principle:F Magnetic Induction & NF Type Eddy Current
Range:0~2000µm/0~80mil
Resolution:0.1µm/1µm
Accuracy:±1~3%n or ±2.5µm
Min.Radius Workpiece:F Type:convex 1.5mm/concave 25mm
                                    NF Type:convex 3mm/concave 50mm
Min.Measuring Area:6mm
Min.Sample Thickness:0.3mm
Metric/Imperial:Functions:Battery Indicator & Automatic Power Off
Operating Conditions:Temperature:0~40ºC;Humidity:10~90%RH
Power Supply:4x1.5V AAA (UM-4)Battery
Dimensions:140x72x34mm
Weight:215g(Not Including Batteries)

Coating Thickness Gauge CM-1210B
1.Spec:
The F probes measure the thickness of non-magnetic materials on magnetic materials. The N probes measure the thickness of non-conductive coatings on non-magnetic metals.
2.Features:
* Can store the new data in 99 groups.
* Two measuring methods: magnetic induction (F) and eddy current (N)
* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Automatic memory of calibration value,and automatic recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
* Separate Type can provide several type probe, measure can be more flexibility.
3.Specifications:
Principle:F Magnetic Induction & NF Type Eddy Current
Range:0~2000µm/0~80mil
Resolution:0.1µm/1µm
Accuracy:±1~3%n or ±2.5µm
Min.Radius Workpiece:F Type:convex 1.5mm/concave 25mm
                                     NF Type:convex 3mm/concave 50mm
Min.Measuring Area:6mm
Min.Sample Thickness:0.3mm
Metric/Imperial:√
Functions:Battery Indicator & Automatic Power Off
Data Memory:99 Groups
Operating Conditions:Temperature:0~40ºC;Humidity:10~90%RH
Power Supply:4x1.5V AAA (UM-4)Battery
Dimensions:140x72x34mm
Weight:215g(Not Including Batteries)
Standard Accessories:Main Unit,Probe (F & NF Type),Calibration Base (F),Calibration Base (NF),Calibration Foils(1 set, 5 pieces),Carrying Case(B04),Operation Manual
Optional Accessories:RS-232C Data Cable with Software,Bluetooth Data Adapter with Software
