Product Attribute:
Supply Ability:200000 Piece/Pieces per Month
Delivery Details:Shipped in 30 days after payment
Production Description:

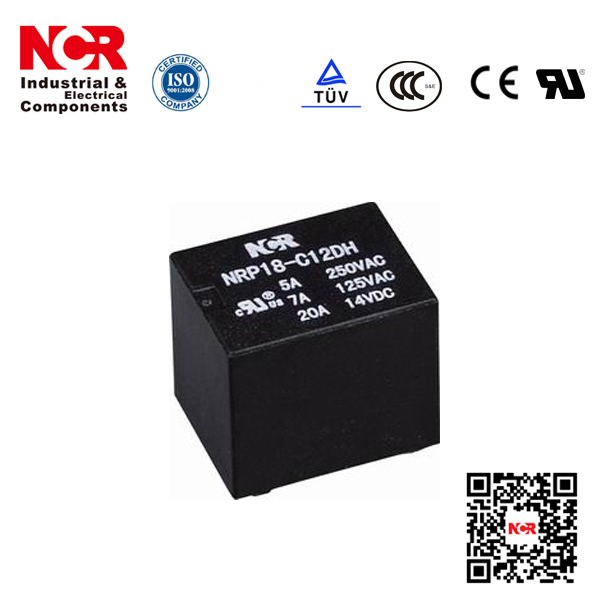

3V Automotive Relay/ Car Relay 20A T78 (NRP18)
|
Model |
NRP18 |
|
Dimension(mm) |
15.7×12.3×14 |
|
Contact Arrangement |
1A,1C |
|
Contact Coapacity |
Max |
20A 14DVC |
|
Rated |
5A 250VAC |
|
7A 125VAC |
|
Min. |
100mA 5VDC |
|
MAX Switching Voltage |
|
16VDC/250VAC |
|
MAX Switching power |
|
400W/840VA |
|
Nominal Voltage |
3~24VDC |
|
Pull-in Voltage |
≤65% |
|
Release Voltage |
≥10% |
|
Operate/Release Time |
≤10ms/5ms |
|
Coil Power |
0.60W,0.8W |
|
Contact Resistance |
≤100mΩ |
|
Insulation Resistance |
≥100MΩ |
|
Dielectric Strength Vr.m.s |
Between Contacts |
500VAC |
|
Between Coil&Contact |
1000VAC |
|
Ambient Temp.(鈩? |
-40~ +85鈩?/span> |
|
Service Life |
Electrical |
1×105 |
|
Mechanical |
1×107 |
General: Relay is a kind of automatic switching component with isolation function, which is widely used in remote control, remote measuring, telecom, automatic control, integration of machinery and electrification, electric and electronic equipments. It's one of the most important controlling components. Generally, relays have the inductive organ (input part) that can reflect the input value (such as current, voltage, power, impedance, frequency, temperature, pressure, speed, light etc.); have the executive organ (output part) that has the capability of switching the controlled circuit "on" or "off"; between the input and output parts, there is the medium organ (actuator) that can make input value coupling-isolation and drive the output part.
As a kind of controlling component, generally, relay mainly has the following functions 1) To enlarge the range of control. E.g., when the controlling signal of a multi-contacts relay reaches a certain value, according to the different forms of the contacts, it can synchronously change over, close or open several circuits. 2) Enlargement. E.g., sensitive relays and medium relays can control a high-power circuit with minute controlling power. 3) To integrate signals. E.g., when several controlling signals are put into a multi-winding relay in the stated form, the relay can realize the expectant controlling function by analyzing the different signals. 4) Automatization, remote control and monitoring. E.g., in automatic equipments, the relays and other electronic components can constitute program-controlled circuit, realizing the automatic operation Applications:
-
Prepayment energy meter
-
Smart meter
-
Concentrated meter reading system
-
Street lamp control system
-
Compound switch, Combination switch
-
Automatic control device/ system
-
AMR system
-
Elevator control
Why NCR? 1. We Are an electronics components manufacturer, researcher, developer and exporter. 2. We have fourteen years experience of manufacturing Relays and other electronic components. 3. Based on ISO 9001 & ISO14000 quality control system as our production standard; 4. We have completely sales service system, ensure every detail is going smooth. 5. We have new designed products each year by our R&D Department. 6. Perfect testing system ensure each product is qualified. 7. Want to know more of us? Waiting for your inquiry.
