Product Attribute:
Type:Li-ion battery
Capacity:101 - 150AH
Voltage:12X4
Size:520*320*246mm by 4pcs 260x158x246
Place of Origin:Guangdong China (Mainland)
Brand Name:OCELL
Model Number:48V110AH
Warranty:2 Years
weight:56kg
Material:LiFePO4
Battery cell:18650 or 26650
Application 2:Electric sweeper 48V battery
contact:sales11 AT ocelltech.com
Applicationt:
Electric vehicles
Production Description:
Lithium ion 48V100AH, lithium Battery pack, for Electric Sightseeing Car
Advantage of our module:
- Water-resistant and firm ABS plastic casing.
- Built-in PCB protection.
- Prevent short circuit, over-current, over-heat, over-charge, over-discharge.
- The internal pack is stabilized by braces
- Avoiding mechanical accidents caused by vibration

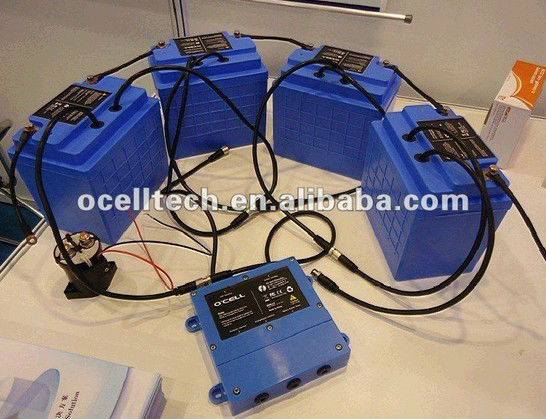

Battery module:
1. Modular design makes the system installation, maintenance easier;
2. Battery modules can be connected in series or parallel to make the system more flexible;
3. IP56 dust and water proof design suit for in severe circumstance;
4. Dual LED indicator makes the battery module status easy to know;
5. High accuracy SOC calculation;
No. | Item | Specification |
1 | Nominal capacity/Ah | 100Ah to 110Ah |
2 | Nominal voltage/V | 51.2V(12.8V*4) |
3 | Max. Charge voltage/V | ≤58.4V(14.6V*4) |
4 | Discharge cut-off voltage/V | ≥40.0V(10.0V*4) |
5 | Recommended charge current/A | ≤55A |
6 | Discharge current/A | ≤155A |
7 | Max. discharge current/A | ≤300A(10S) |
8 | Weight/Kg | <61Kg |
9 | Approximate resistance/mΩ | <60mΩ |
10 | Dimension(for reference only) | depend on configuration |
11 | Temperature range | charge:0~45°C |
discharge:-10~50°C |
12 | Storage temperature | -10~45°C |
13 | Over voltage warning/V | 62.4V(15.6*4) |
14 | Over voltage alarm/V | 64V(16.0V*4) |
15 | Under voltage warning/V | 44.8V(11.2V*4) |
16 | Under voltage alarm/V | 36.8V(9.2V*4) |
17 | Over temperature warning/°C | 60°C |
18 | Over temperature alarm/°C | 65°C |
19 | Regeneration function | Depend on Motor controller |
Application:
EV such as E-scooter, golf cart/trolley, E-sightseeing car, postal van, road sweeper, industrial sweeper, ride-on floor sweeper,cleaning sweeper, sweeper floor, sweeper car....
contact sales11 AT ocelltech.com for more details and fully power solution.
