Product Attribute:
shipping weight:1.5kg
Applicationt:
audi, BMW, BENZ, Lamborghini
Production Description:
Ktag 7.020 Mater is K-TAG V2.23 ECU Programming Tool. obd2coding com Ktag 2.23 Mater with K-tag 7.020 Firmware And K-suite 2.23 software. KTAG V7.020 Ksuite V2.23 ECU CHIP TUNING with Unlimited Tokens,supports ECU Type: Toyota 76FXXX, PSA 17.4.4, Ford E83, VW 17.5.5 (1766), Mercedes-Benz 276ECU,Toyota 76F, and so on, at least 100 more ECU Types added
K-TAG Master V7.020 KTAG ECU Programmer Ksuite V2.23 Unlimited Token
KTAG Ecu chiptuning V7.020 Highlight:
1. Firmware version: V7.020
Software version: V2.23
2. ADD Many encrypted new car models works I.E Toyota 76FXXX, PSA 17.4.4, Ford E83, VW 17.5.5 (1766), Mercedes-Benz 276ECU, Toyota 76F, etc. 100+ ECU types added
3. No tokens limitation
4. Supports GPT and Toyota Denso ECUs
KTAG Master choose:
Optional 1: K-TAG V7.020/ 2.23 without Reset button.
Optional 2: K-TAG V7.020/ 2.23 with Reset button, Unlimited Tokens.
Ktag V2.23 Mater Function:
Multi-Language available: Italian Deutsch English French Portuguese Spanish
Support BDM Function Well, no checksum error, available Protocols BDM MOTOROLA MPC5xx
Support both Car, Motorcyle and Truck ECU Programming
Add New File type (FENDT/JCB/VALTRA TRACTOR BOSCH EDC17CV41 SISU ENGINE CAN
Update: By CD or Download link only. ( Contact customer service to get new ktag software)
KTAG Ksuite V2.23 Description:
The new K-TAG is 100% J-Tag compatible, but in a completely different way. Usually J-Tag programmers are available only for big productions, never present in chiptuning devices. Using only the essential components, Alientech have merged J-Tag, Motorola BDM/Nexus and Bootloader Mitsubishi/Infineon Tricore/ST communication lines into a single product.
V2.23 K-TAG works in perfect harmony. Learn how to use K-TAG takes almost no time, because all the communication protocols operate along similar principles. Once you have learned to use a protocol, you will naturally use all the others. Alientech knows what it means to work in motion. For this reason the research methods of the protocols and choice of vehicles are detailed and ordered.
Unlike many ECU programming tools, with K-TAG you have at your disposal only the applications you really need. Once you have the hardware, you can choose which group of protocols to enable and then start working. In this page you can find a complete list of the ECU currently supported by K-TAG.
How to reset the K-TAG tokens?
When the tocken is exhausted, insert the USB into the computer and the red indicator flashes.then press the Reset button, wait until the indicator flashes off, unplug the USB cable and again insert the USB cable to the computer, renew is complete! now you have 30 tokens.
Usage Notice:
1. Please Only Use Our Software
2. Operating System: Better to Use Win XP
3. Please Disconnect Internet While Using KTAG, Otherwise It Will Get Damaged
KTAG 7.020 Connection Picture Display:
KTAG 7.020 Firmware PCB Display:
Ktag ECU 7.020 Cables From Left to Right:
1.GREEN-CAN L
2.ORANGE-VKEY
3.YELLOW-K LINE
4.ORANGE-VKEY
5. RED-VECU
6.BLACK-GND
7.BLACK-GND
8.PURPLE-VPP
9.RED-VECU
10.WHITE-CAN H
Question:
When I open the Ktag master V7.020 diagram, it displays in words not pictures.
Answer: In the diagrams, there are some words in different colors, click it you will see the diagram. (Take the following picture for example, click the blue Here you can see the connection instructions)

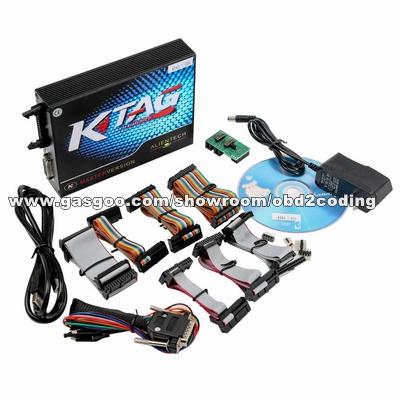

KTAG ECU programmer Package List:
1 x KTAG 7.020 Main Unit
1 x 144300T 104
1 x 144300T 103
1 x 144300T 101
1 x 144300T 106
1 x 144300T 102
1 x 144300T 105
1 x 144300T 100
3 x Chips Inside
1 x Multi-Color Cable
1 x USB Cable
1 x Power Adapter
1 x CD
