Product Attribute:
Material:stainless steel
Size:12inch
Applicationt:
Toyota
Production Description:

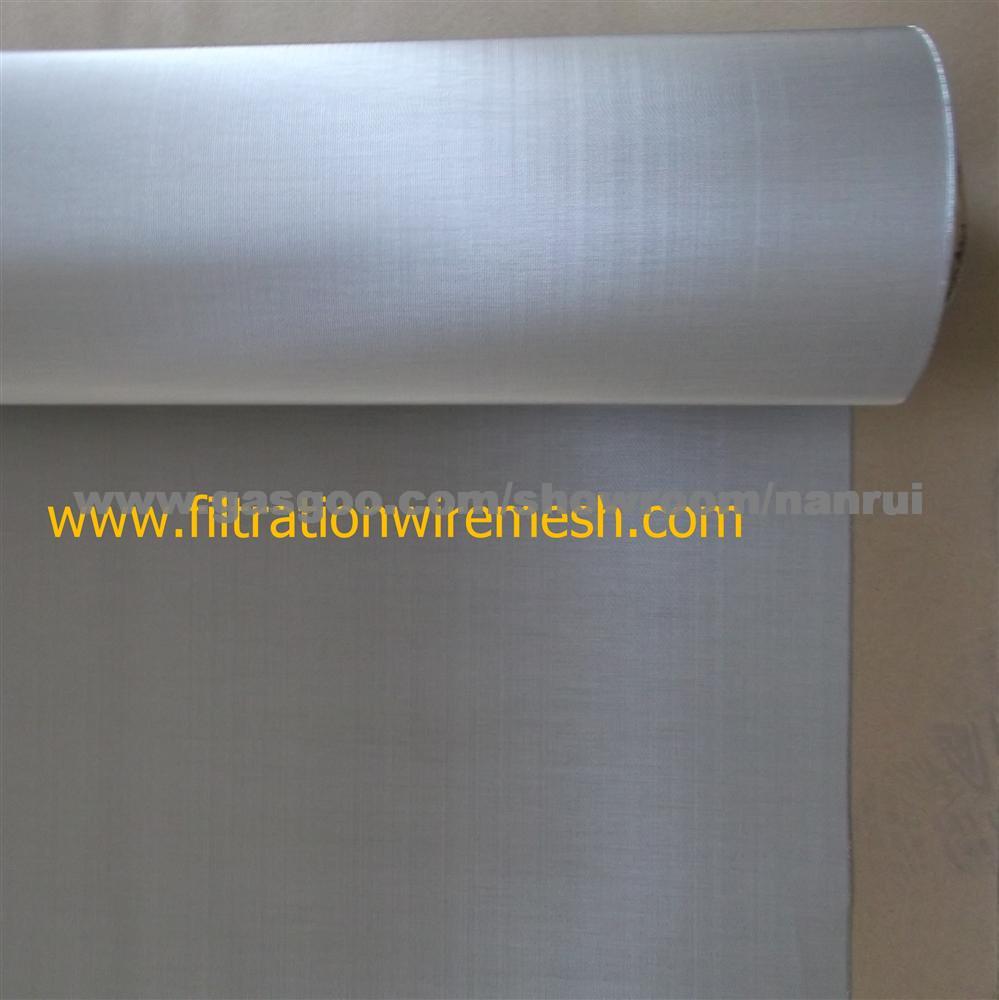

Weaved by high grade stainless steel wire material: AISI 304,AISI 304L,AISI 316,AISI 316L,we also have stainless steel wire import from Japan.
Width of our stainless steel woven wire mesh: 0.914m, 1m, 1.22m, 1.3m, 1.4m, 1.5m, 1.6m, 2m, 3m, 4m, 6m.
Our stainless steel wire mesh can be high mesh size 800mesh,1000mesh,1400mesh,1600mesh,2100mesh,2300mesh,2500mesh.Herringbone twilled weave for drying.Max width we can weave is 6 meter.
Weave type:Plain weave,Plain dutch weave,Twill weave,Twill Ddutch weave,Heriingbone twilled weave
Plain dutch weave mesh weaved by two different size warp wire and weft wire,it is used for fine filtration media that plain weave mesh can not reach.
Specification:
Mesh |
Wire Diameter(mm) |
Width(m) |
Material |
|
80 x 80 |
0.13 |
1m,1.5m,2m,6m |
304,316,316L |
|
100 x 100 |
0.10 |
1m,1.5m,2m,6m |
304,316,316L |
|
24 x 110 |
0.35/0.25 |
1.28m,1.5m,1.6m |
304,316,316L |
|
30 x 150 |
0.23/0.18 |
1.28m,1.5m,1.6m |
304,316,316L |
|
50 x 250 |
0.14/0.11 |
1.28m,1.5m,1.6m |
304,316,316L |
|
127 x 1100 |
0.071/0.050 |
1.28m,1.5m,1.6m |
304,316,316L
|
