Product Attribute:
Type:Headlight
Voltage:12V
Lamp Type:HID Xenon
Certification:CE,ROSH,CCC,ISO90001,E4
Car Make:ALL CAR
Place of Origin:China (Mainland)
Brand Name:RS
Model Number:available for different types bulb
Warranty:18 Months
Model Number:H4
Ballast model:canbus
Voltage:12V/24V
Power:35W/55W
Color temperature:3000K~30000K, GREEN,RED IS OK
Type:canbus hid kit
Production Description:

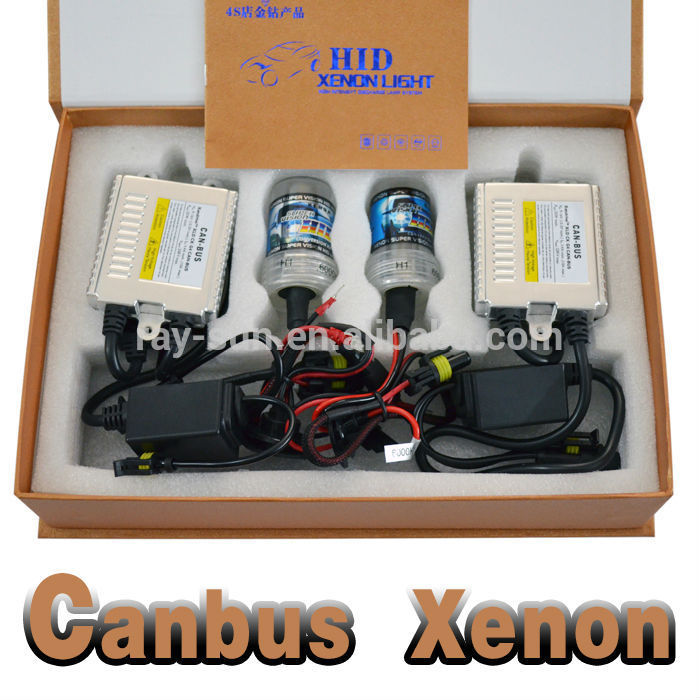

12V 35W Super Vision H4 High/Low Canbus Hid kit
1:Use this ballast with any of our HID bulbs, or to replace a damaged aftermarket-canbus HID ballast. If you are
converting your headlights or fogs to HID, choose a complete conversion kit.
2:Make sure to purchase a canbus kit if needed. Remember that each bulb needs its own ballast, so don't expect
to replace a pair of ballasts without buying two of these.
3:Many European cars require a canbus ballast in order for an HID kit to work properly. If you have a Mercedes,
Porsche, Audi, BMW, or even select Volkwagens, you will need this ballast in order to avoid warning lights on your
dash. If you have already installed a standard HID ballast and are experiencing the warning lights, you can simply
buy a warning canceller instead of replacing the entire ballast.
Specification
| Max start electric current | 6.5A | Flashing Test | 2 times/5 OK |
| Working voltage | 8.0V-18V | Energy conversion efficiency | >95% |
| Time to reach stability | 120 Cool Bulb | Start bulb voltage | 18KV-23KV |
| Input power | 42.6W | Work temperature | -40C-105C |
| Output power | 35.5W | Storage temperature | -40C-125C |
Protection Performance
Open circuit protection: Enable
Short circuit protection: Enable
Reverse connection protection: Enable
Low voltage protection: Enable 8V
Overloaded voltage protection: Enable 18V
Factory Strict Quality Control
Allproducts are inspected and tested by our certified technicians before shipping!
-6 hours continuous working aging test Passed.
-Quake proof capability test Passed.
-cold, warm boot test Passed.
-Polarity protection test Passed.
-EMC anti-jamming test Passed.
Assembly Line
All manufacturing process is under control. Production Enviroment must be clean. That's
Major Premise of manufacturing good quality canbus ballast and xenon bulb.
Package Show
Both neutral box and customer design box are ok.
We promise all customer design box would not show in our show room or
online website.
Warranty:
We Guarantee your zero risk purchase expreience here.
Warranty is not just say, that's we would do. not just one word.
If you get good cooperation with your supplier now, I suggest do not
Change the supplier easily. Stable is most important.
Have any troubles with your existing supplier? Find me!
